Low Loader Semi Trailers For Sale
CARRIST have provided many hydraulic axles modular trailers to 56countries, we have much more advantages on cost and quality control of heavy lift transport. As a military background manufacturer, the hydraulic modular trailer / multi axles trailers have robust constructions and professional design.
CARRIST LOW LOADER SEMI TRAILER low flat semi-trailer is normally used to transport heavy motors (such as tractors, buses, one-of-a-kind vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural equipment (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and different heavy goods. The decrease the core of gravity, the higher the balance and safety, and the more advantageous the capability to transport super-high items and skip overhead barriers The structure of low flat semi-trailer and the loading of low flat semi-trailer generally undertake concave beam kind (or properly type) frame. The the front area of the body is a gooseneck (the traction pin of the the front area of the gooseneck is related with the traction saddle on the tractor, and the rear give up of the gooseneck is linked with the semi-trailer frame), the center part is a cargo platform (the lowest phase of the frame), and the rear quit is a wheel body (including wheels) When loading mechanical gear onto a low flat semi-trailer, the mechanical gear is commonly loaded from the rear of the semi-trailer, that is, the mechanical gear is moved from the rear wheel body or the wheels are removed, and then the mechanical tools is constant on the semi-trailer.
Tell me your demand, we recommend suitable trailer professionally. Make business easy!
Specification of Low Loader Semi Trailers For Sale
General | |||
Overall Dimension | 11960mm*3000mm*3300mm | ||
Flatbed Dimension | 8000mm*3000mm | ||
Tare Weight | 9630kg | Pay Load | 40ton |
King Pin Setting | 450mm | Rear Overhang | 1870mm |
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm |
Track | 2160mm | ||
Running Gear | |||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | ||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
Under Frame | |||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | ||
Cross Beam | Mild Alloy Q235, 16# channel beam | ||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | ||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | ||
Flatbed Floor | Checkered sheet, thickness 4mm | ||
Rear Ladders | Spring power-assisted | ||
Electrical & Paint | |||

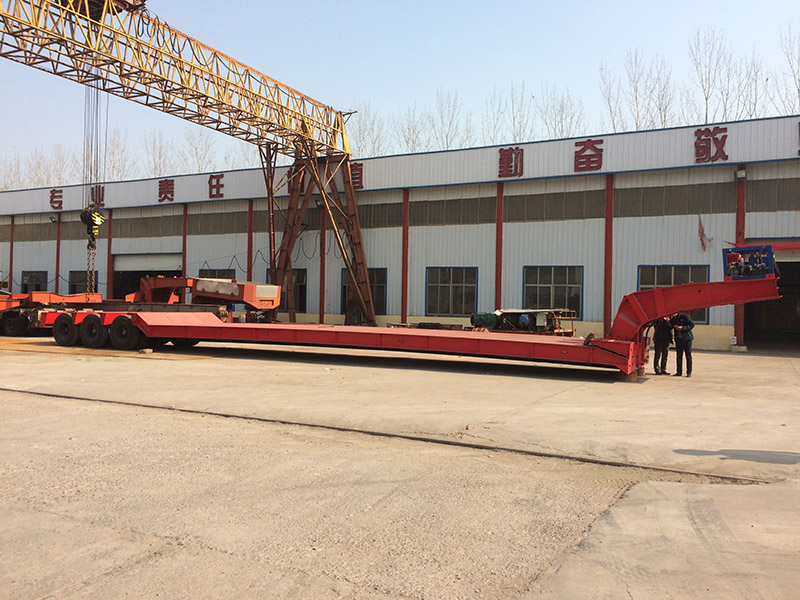

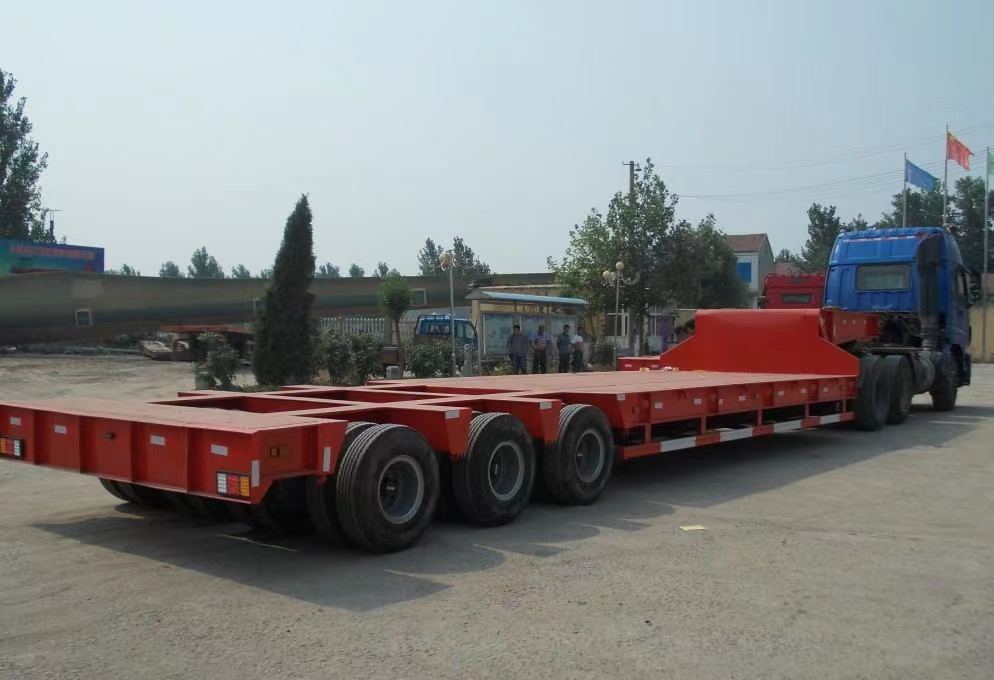

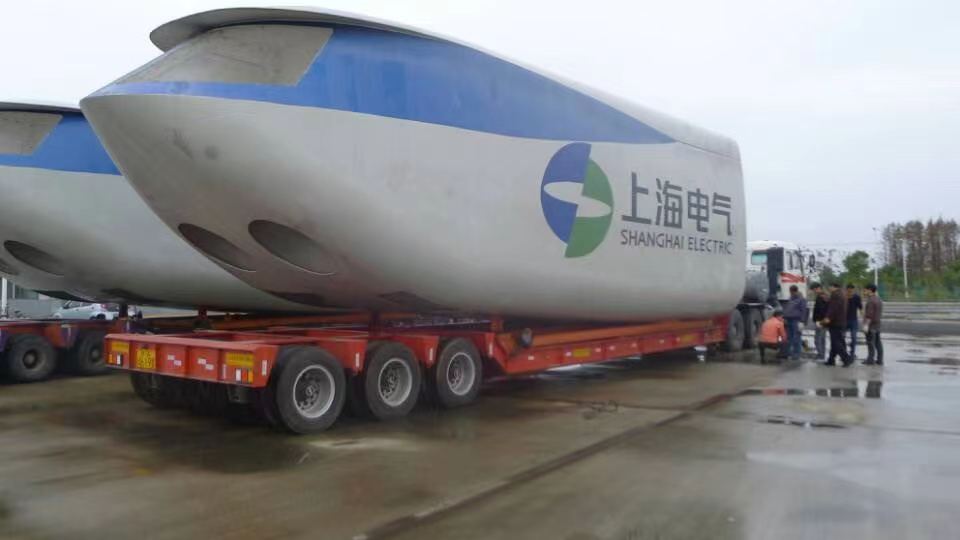

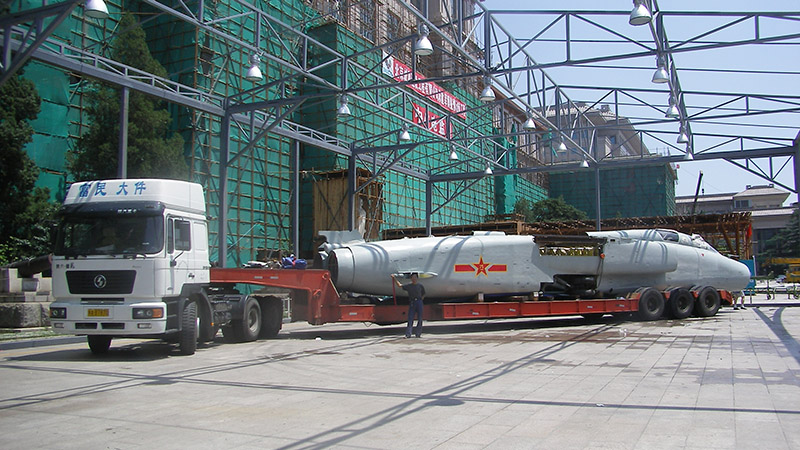

Details of Low Loader Semi Trailers For Sale

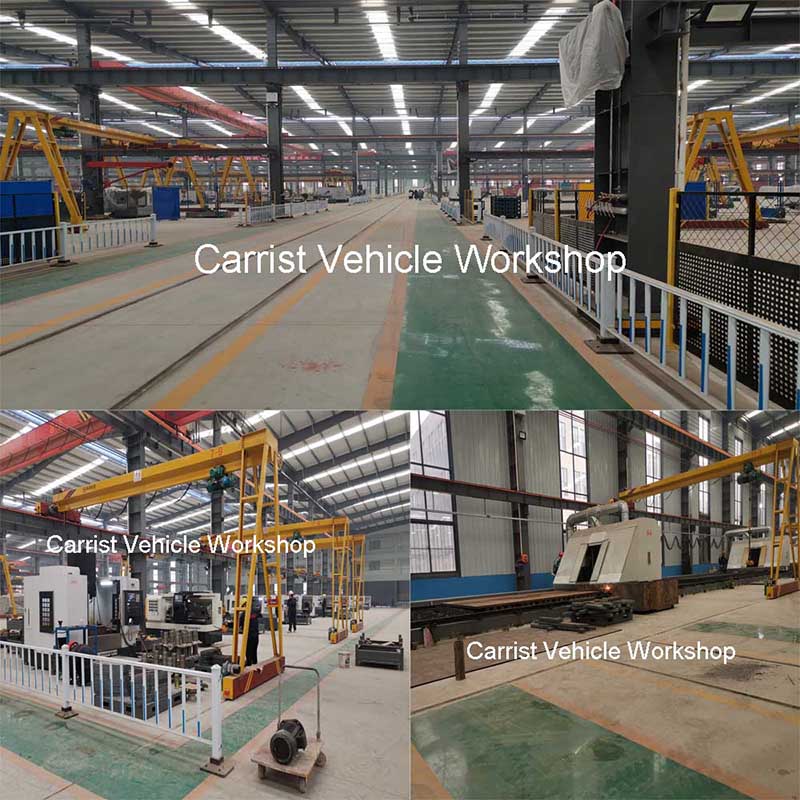

Workshop of Low Loader Semi Trailers For Sale
