5 Axle Semi Low Loader For Sale
Carrist CTM series hydraulic multi axle trailers for transport oversize and over weight freights that split apart series modular hydraulic trailers that can be assembled into weight from 45 tons to 2250 tons of various series.
5 Axles Low-bed Semi-trailer
Low flatbed semi-trailers are generally used to move heavy cars (inclusive of tractors, buses, special vehicles, etc.), rail motors, mining machinery, forestry machinery, creation machinery (including excavators, bulldozers, loaders, street pavers, cranes, and so on.) ) and other heavy masses, the decrease the center of gravity, the higher the stableness and protection, and the greater the potential to move top notch excessive hundreds and skip overhead obstacles.
Tell me your demand, we recommend suitable trailer professionally. Make business easy!
General | |||
Overall Dimension | 11960mm*3000mm*3300mm | ||
Flatbed Dimension | 8000mm*3000mm | ||
Tare Weight | 9630kg | Pay Load | 40ton |
King Pin Setting | 450mm | Rear Overhang | 1870mm |
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm |
Track | 2160mm | ||
Running Gear | |||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | ||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
Under Frame | |||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | ||
Cross Beam | Mild Alloy Q235, 16# channel beam | ||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | ||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | ||
Flatbed Floor | Checkered sheet, thickness 4mm | ||
Rear Ladders | Spring power-assisted | ||
Electrical & Paint | |||

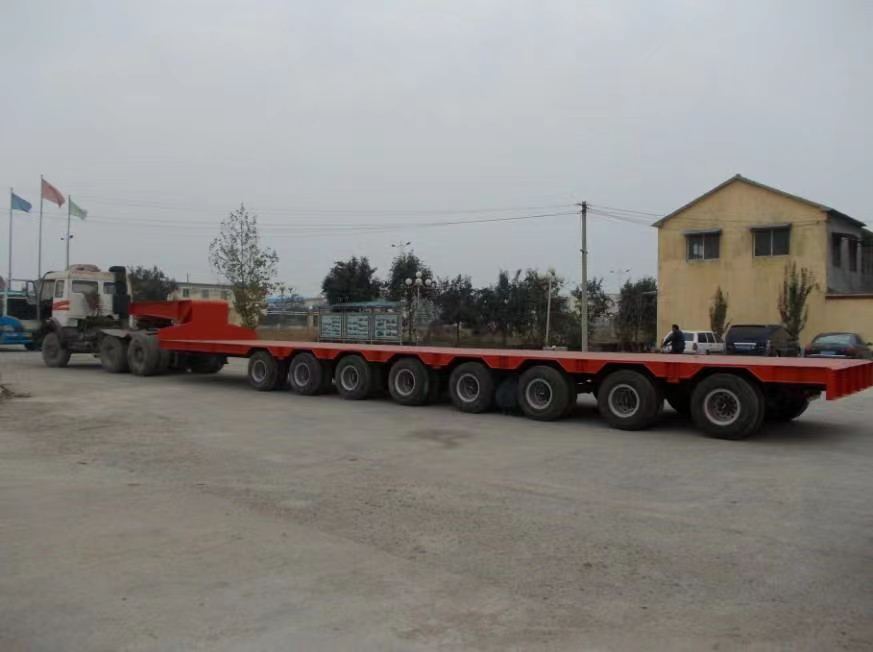

Details of 5 Axle Semi Low Loader For Sale

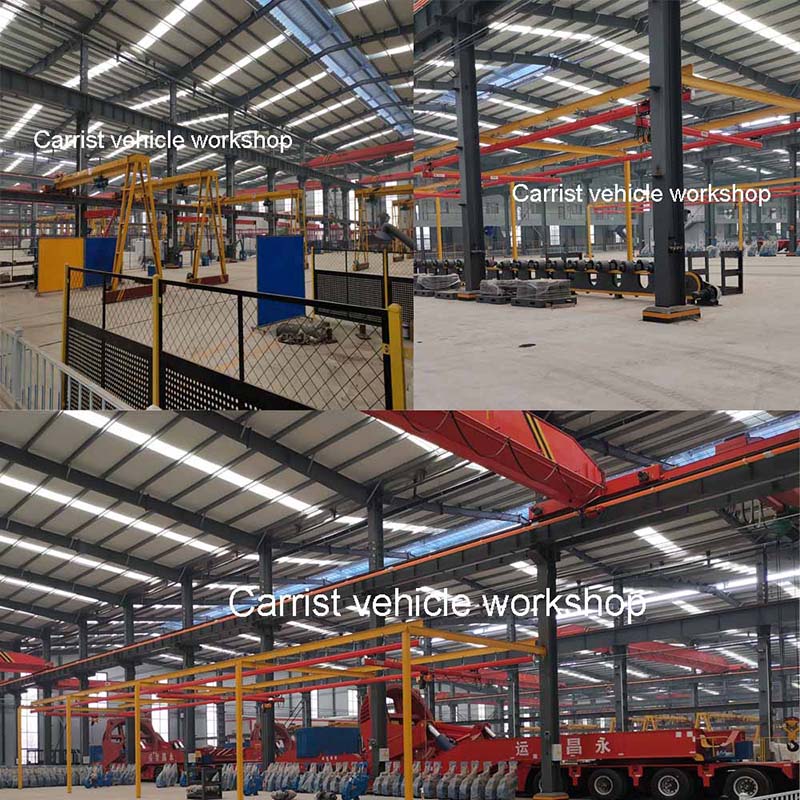

Workshop of 5 Axle Semi Low Loader For Sale
