Low Deck Semi-trailer

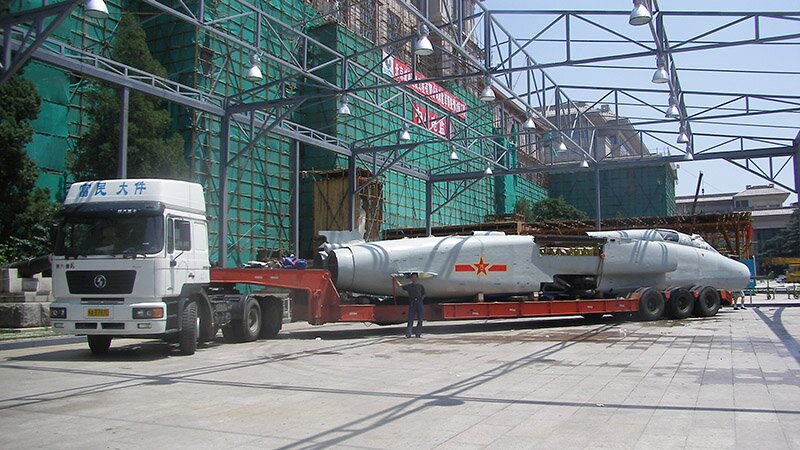

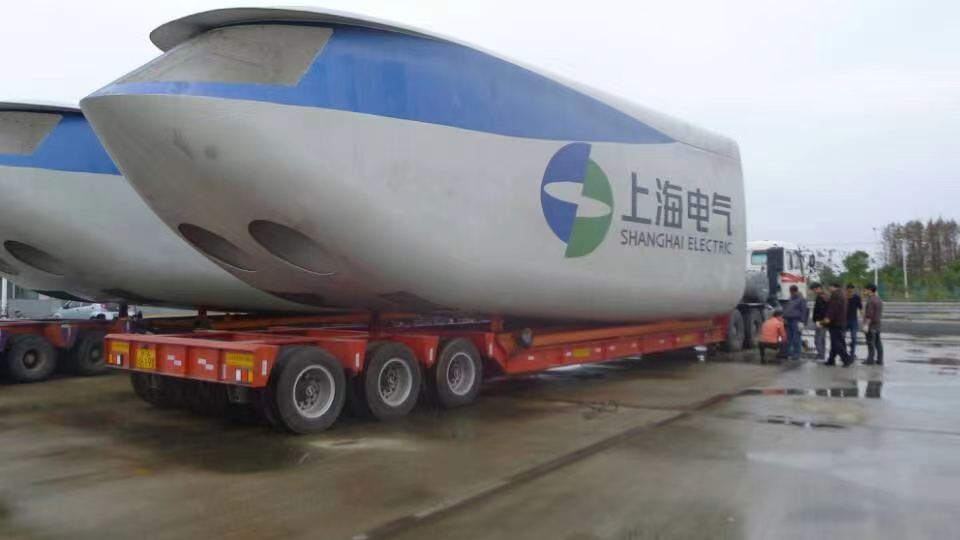

Low flatbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc.) ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.
Carrist Low Deck Semi-trailer Special structural requirements: 1 Low-plate reinforced semi-trailer shall be equipped with 90 # A type traction pin in accordance with GB/T 4607 and GB/T 15088, which can be interchanged and matched with the vehicle and meet the relevant provisions of GB/T 4606 and GB/T 15088. 2. High-strength steel with yield strength greater than 700MPa should be used for the main load-bearing components such as the frame longitudinal beam and the load-bearing panel beam of the low plate reinforced semi-trailer.
General | |||
Overall Dimension | 11960mm*3000mm*3300mm | ||
Flatbed Dimension | 8000mm*3000mm | ||
Tare Weight | 9630kg | Pay Load | 40ton |
King Pin Setting | 450mm | Rear Overhang | 1870mm |
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm |
Track | 2160mm | ||
Running Gear | |||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | ||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
Under Frame | |||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | ||
Cross Beam | Mild Alloy Q235, 16# channel beam | ||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | ||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | ||
Flatbed Floor | Checkered sheet, thickness 4mm | ||

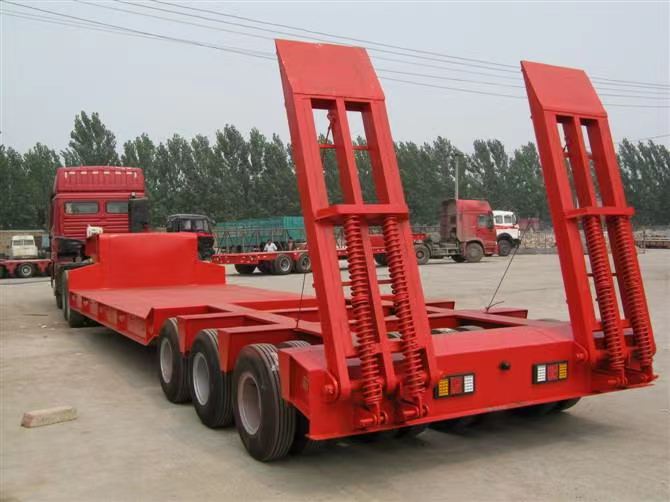

Rear Ladders | Spring power-assisted | ||
Electrical & Paint | |||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Wiring | 24V, 6 lines | ||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | ||
Paint | Sand blasting before painting, color upon request | ||
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.

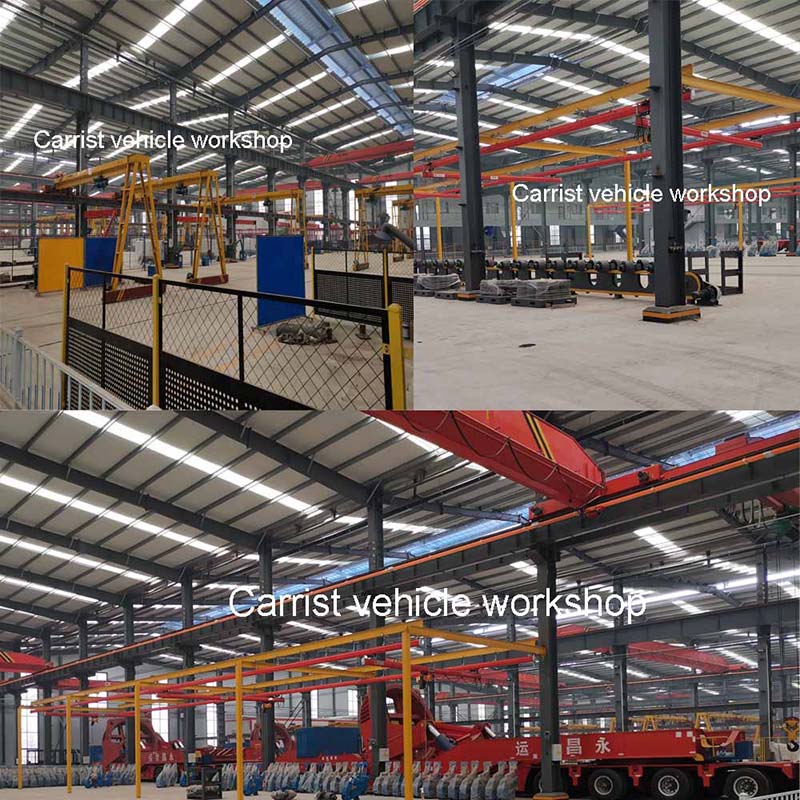

Workshop of Low Deck Semi-trailer
