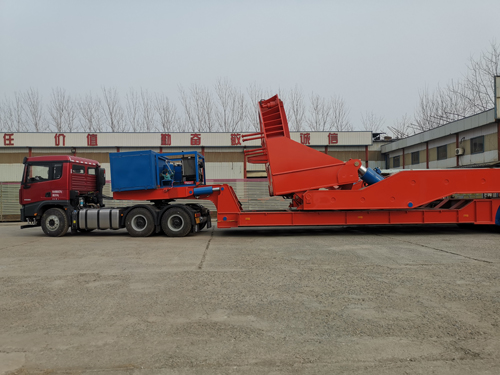

Windmill Turbine Lifter
Carrist the blade is directly fix to the blade lifter and lifted in midair to transport the extremely good lengthy blade with a short general period of trailer.
•In the course of transportation, the hydraulic control can make the wind blade rotate 360 °, the wind blade can rotate 360 ° through the lower slewing bearing and annular slide, and the maximum establishing perspective of the wind blade is 60 ° through the growth and contraction of the oil cylinder, which can reduce the counter weight introduced.
Carrist windmill turbine lifter Rotor blades are touchy and extraordinarily long, with a vogue closer to ever large installations. Rotor blade lengths of up to eighty meters are now not exotic anymore. They can be transported in more than a few methods with cars via CARRIST.
Telescopic Extendable Windmill Turbine Blade Trailer are a stable and low-budget answer for handy route sections. When house is limited, we can count number on the windmill rotor-blade adapters , wind blade lifter with the aid of CARRIST. Mounted on platform trailers, rotor blades can be picked up, placed at an attitude of up to 60°, pivoted as nicely as circled round their personal axis. Mounted on a quick-release plate, the rotor blades can be securely picked up and maneuvered round any obstacles. In areas with timber or buildings, hairpin turns or in the mountains – the fragile load is therefore easily, safely and effectively delivered to its destination.
SPECIFICATIONS of Windmill Turbine Lifter
Dimention: | 10420*3400*3865mm |
Lifting angle: | 0-36 degree |
Lifting mode: | duel cylinder lifting |
Rotate mode: | 4 motor drive |
Rotate of blade: | 2 motor drive |
Control: | manual+wireless control |
Counter weight size: | 1600*1400mm |
Shifting distance: | 0-4000mm |
Shifting mode: | duel cylinder push |
Weighing mode: | 4 point weight |
Capacity: | 510 ton*m |
Dead weight: | 47,000kgs |
Details of Windmill Turbine Lifter
