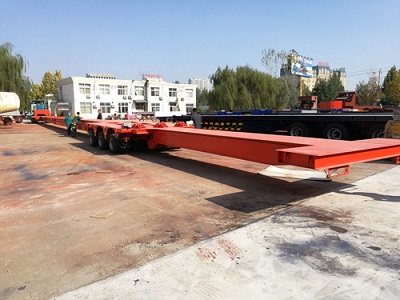

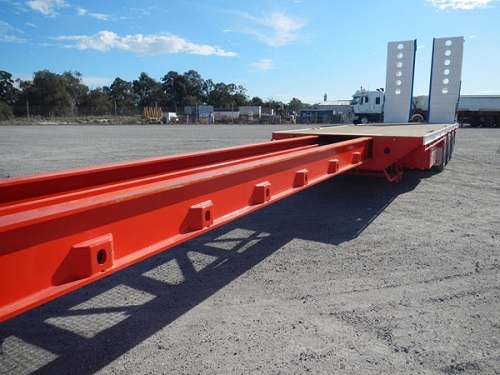

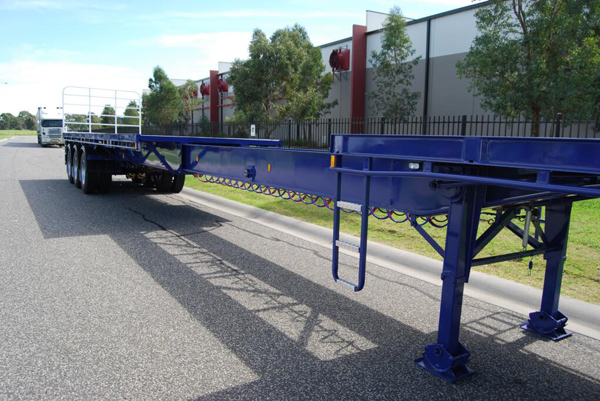

Telescopic Extendable Windmill Turbine Blade Trailer
Carrist Vehicle provides a specialized solution for hauling Windmill Turbine Blade. This versatile heavy haul Telescopic Extendable Trailer can be adjusted to fit any size or brand of Wind Turbine Blade with a shorter lighter design, making it the ideal option for hauling blades.
Product Details
Loading Deck | 14500mm-35000*2500*1500mm | |
Rated Capacity | 40-60Tons | |
Tare Weight | 12-18Tons | |
Total Weight | 52-78Tons | |
Wheelbase | 1310mm | |
Axles | 13T American Style | 3/4 sets |
Tyre | 10.00R20;11.00R20;12R22.5 | 12/16sets |
Rims | 12/16pcs | |
Suspension | Air suspension with hydraulic steering & lifting functions, all accessories imported | |
Brake | Dual line pneumatic brake system,T30/30+T30 air chamber; parking brake; | |
Material | High Tensile Carbon Steel | |
Size | Upper plate | 25mm |
Lower plate | 25mm | |
Mid Web | Box styled double 12mm | |
Height | 500-520mm | |
Floor | 4mm diamond plate | |
Welding | automatic submerged arc welded | |
King pin | 2’ or 3.5’ interchangeable | |
Landing Gear | 28T with static 80Tons | |
Lights | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Painting | Three coats painting; Any color will be available | |
Tool Box | One tool box with a set of standard trailer tools | |
Tyre Carrier | One piece | |
Electrical | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) Euro Standard |
