Windmill Blade Lifter
Rotor blades are sensitive and extremely long, with a trend towards ever larger installations. Rotor blade lengths of up to 80 meters are not uncommon anymore. They can be transported in various ways with vehicles by CARRIST.

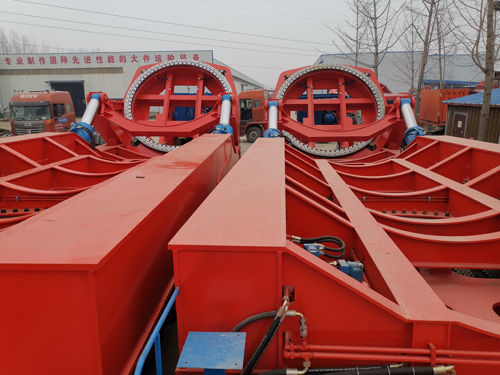

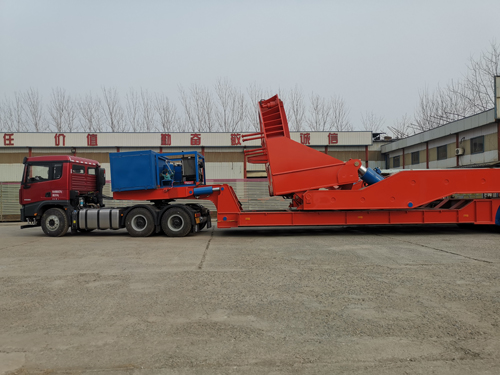

Telescopic Extendable Windmill Turbine Blade Trailer are a solid and economical solution for easy route sections. When space is limited, we can rely on the windmill rotor-blade adapters , wind blade lifter by CARRIST. Mounted on platform trailers, rotor blades can be picked up, positioned at an angle of up to 60°, pivoted as well as rotated around their own axis. Mounted on a quick-release plate, the rotor blades can be securely picked up and maneuvered around any obstacles. In areas with trees or buildings, hairpin turns or in the mountains – the fragile load is thus easily, safely and efficiently delivered to its destination.

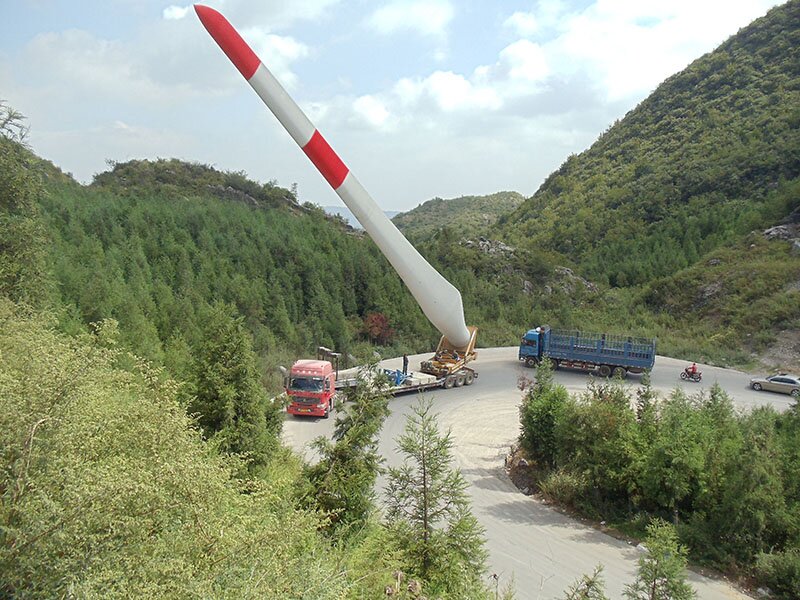

• Carrist Blade Lifter could make the wind blade lift,during wind blade transportation, leveling and rotate itself to avoid various obstacles such as trees, mountains and wires, and effectively solve the problem of wind power blade transportation in mountainous areas.

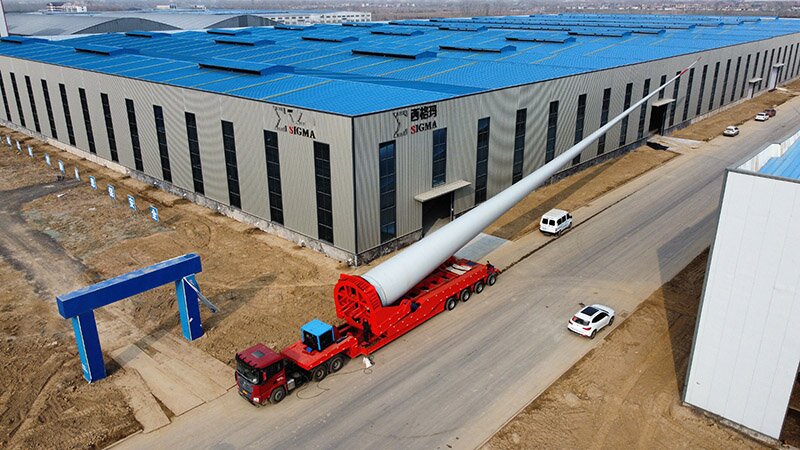

• The blade is directly fix to the blade lifter and lifted in midair to transport the super long blade with a short total length of trailer.
• During transportation, the hydraulic control can make the wind blade rotate 360 °, the wind blade can rotate 360 ° through the lower slewing bearing and annular slide, and the maximum opening angle of the wind blade is 60 ° through the expansion and contraction of the oil cylinder, which can reduce the counter weight added.
• During transportation, if the wind is strong, the wind blade can rotate 360 degrees to avoid the wind, and participate in the balance through counterweight to ensure transportation safety.
Specification of Windmill Blade Lifter
Dimention: | 10420*3400*3865mm |
Lifting angle: | 0-36 degree |
Lifting mode: | duel cylinder lifting |
Rotate mode: | 4 motor drive |
Rotate of blade: | 2 motor drive |
Control: | manual+wireless control |
Counter weight size: | 1600*1400mm |
Shifting distance: | 0-4000mm |
Shifting mode: | duel cylinder push |
Weighing mode: | 4 point weight |
Capacity: | 510 ton*m |
Dead weight: | 47,000kgs |
BLADE LIFTER KEY FEATURES
· During wind blade transportation, the wind blade can lift, leveling and rotate itself to avoid various obstacles such as trees, mountains and wires, and effectively solve the problem of wind power blade transportation in mountainous areas.
· The blade is directly fix to the blade lifter and lifted in midair to transport the super long blade with a short total length of trailer. During transportation, the hydraulic control can make the wind blade rotate 360 °, the wind blade can rotate 360 ° through the lower slewing bearing and annular slide, and the maximum opening angle of the wind blade is 60 ° through the expansion and contraction of the oil cylinder, which can reduce the counter weight added.
· During transportation, if the wind is strong, the wind blade can rotate 360 degrees to avoid the wind, and participate in the balance through counterweight to ensure transportation safety.

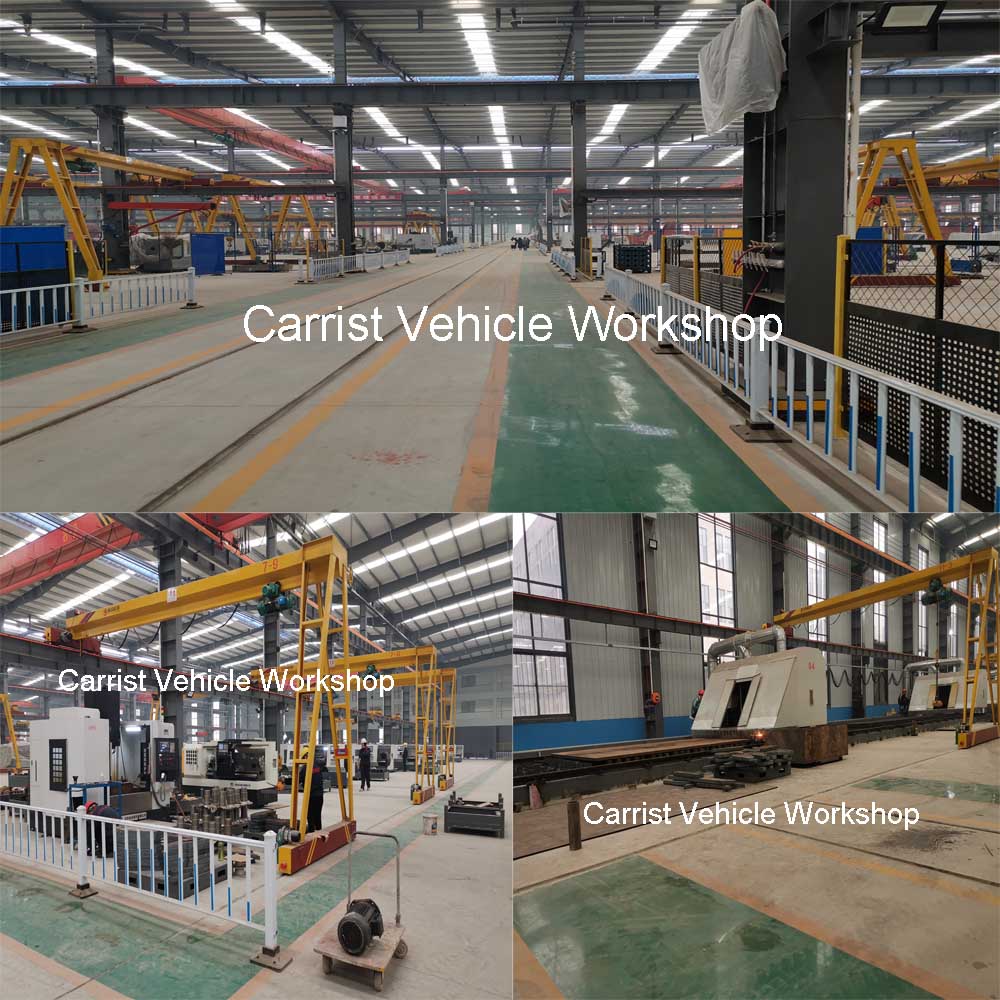

Workshop of Windmill Blade Lifter
