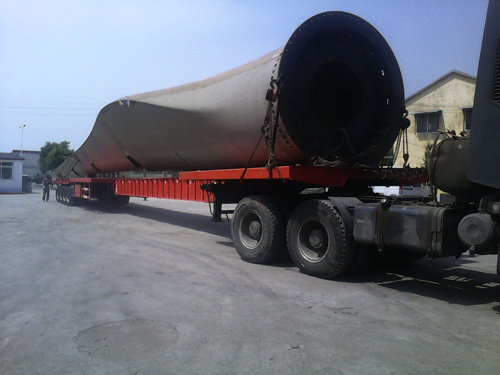

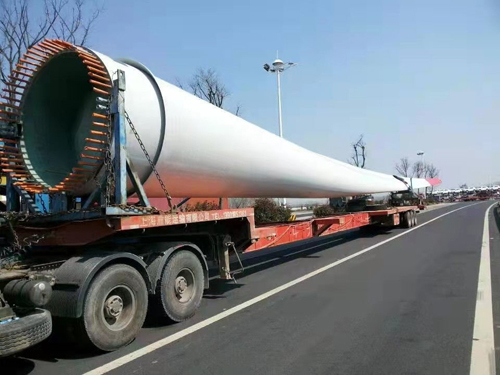

Windmill Blade Trailer
The telescopic boom can be 1-3 in option, the max length will Up to 75m
Go with high grade of steel which makes on the booms, so can make the trailer Lightweight in tare weight
Go with hydraulic forcing steering and integrated powerful power pack, which can make the steering angle to above 50 degree
Different kind way of smart design on blade lifter wind turbine so can keep the loading platform in a low position
Use durable axle and suspension with trailer, to keep the trailer can have a high payload
Various suspension systems in options for different kinds of transport tasks:
1. Turntable steering
2. Knuckle steering
3. Hydraulic swing axle
• Carrist wind turbine blade trailer suspension type includes leaf spring suspension, hydraulic suspension, and airbag suspension Let's introduce to you:

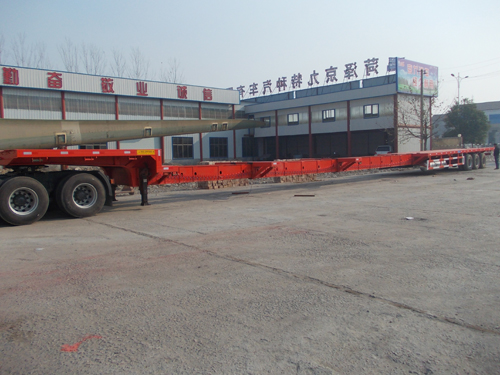

• The leaf spring blade trailer is somewhat similar to the semi-low loader, but its chassis adopts the box design. The chassis adjusts the trailer length through pulling to adapt to the wind blade transport of different lengths. It is understood that the maximum length of the current wind turbine blade on a trailer can reach 75m.
• The biggest difference between the hydraulic blade trailer and the ordinary blade trailer is that the axle adopts the hydraulic axle design, which makes the platform of the blade trailer lower and the steering more flexible.
• Airbag suspension is the most economic way between the above two options, it can have a limited stroke and also can have a balance between each axle.
Dimension: 21,500mmX3000mmX1350mm
Total length: 56,000mm after extension
Loading capacity: 60 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 4 units steering axle
Suspension: Mechanical spring suspension.
Tyre: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200

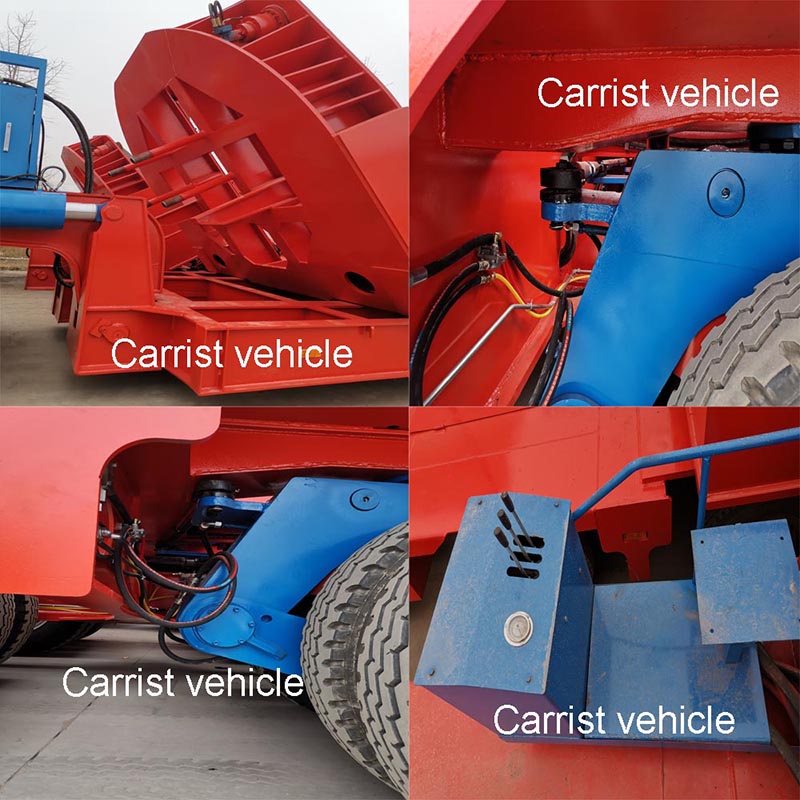

Details of Windmill Blade Trailer

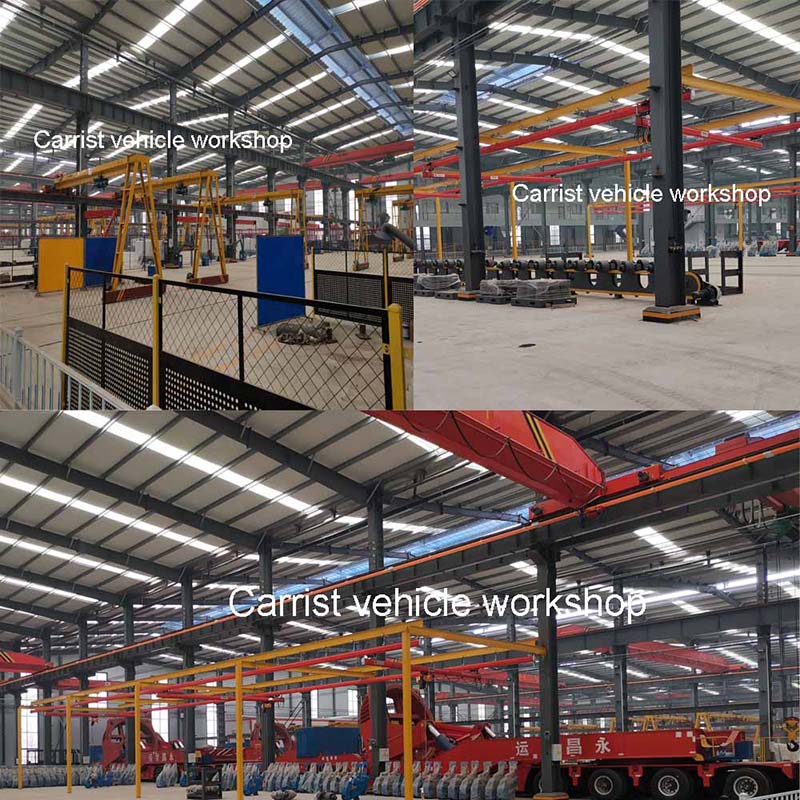

Workshop of Windmill Blade Trailer
