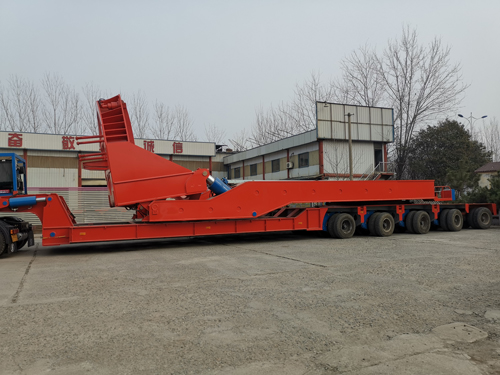

Wind Turbine Blade Adapter
Carrist Self Propelled Trailer is mainly used for the transportation of ODC cargo. Its advantages are flexible use, convenient loading and unloading, and high load capacity. Self propelled modular trailer is widely used in petroleum, chemical industry, offshore, construction and other engineering fields. The trailer transportation system mainly includes two components: power pack unit (PPU) and driving modules

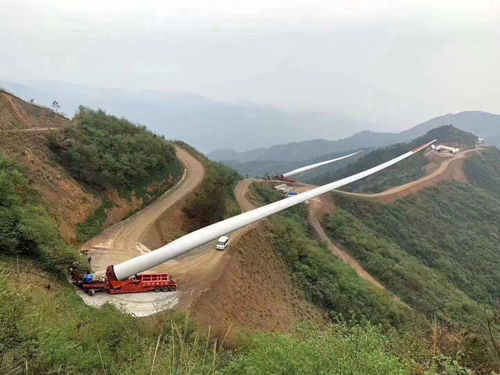

Wind Turbine Blade Adapter Carrist Rotor blades are touchy and extraordinarily long, with a vogue nearer to ever large installations. rotor blade lengths of up to eighty meters don't seem to be individual anymore. they can be transported in severa methods with automobiles with the aid of carrist.

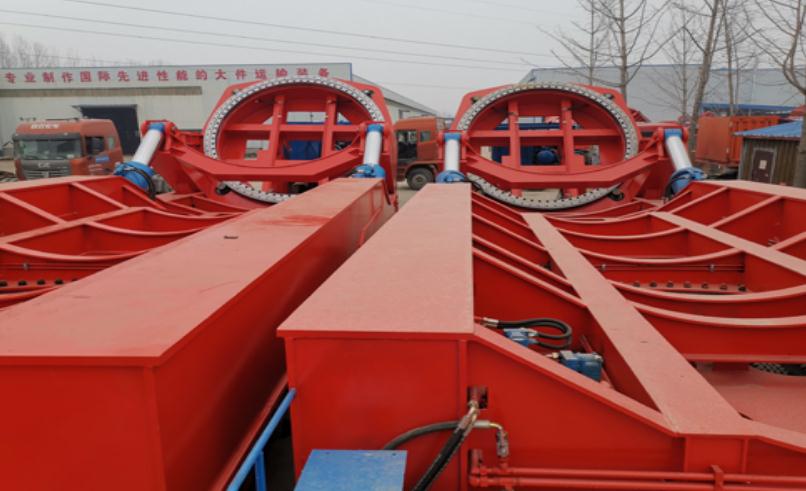

Telescopic extendable windmill turbine blade trailer are a stable and now not expensive answer for handy direction sections. whilst house is constrained, we are capable to remember upon the windmill rotor-blade adapters , wind blade lifter with the aid of way of carrist. established on platform trailers, rotor blades may additionally be picked up, placed at an perspective of up to 60°, pivoted in addition to circled round their very own axis. installed on a brief-launch plate, the rotor blades might also be securely picked up and maneuvered round any obstacles. in areas with trees or homes, hairpin turns or inner the mountains – the refined load is for that motive easily, appropriately and efficiently delivered to its holiday spot.
SPECIFICATIONS OF SELF PROPELLED TRAILER CTS-300
Technical performance parameters module unit | 2 axle line drive unit |
length (mm) | 3 100 |
width (mm) | 3 000 |
Low loading height | 780 mm |
The maximum loading height | 1 380 mm |
Normal ride height | 1 080 mm（215/75R17.5） |
Suspension Type / total stroke | Hydraulic suspension / 600 mm |
Hanging regulatory / safety devices | safety valve RBE-R3/8-X-50 HYDAC germany ball valve: BKH-DN13-15L INTEVA spain |
Steering angle | 55° |
Driveshaft / suspension quantity | 3/6 |
Hydraulic motor model | REXROTH A6VE |
Reducer Model | REXROTH GFT |
Max load/axle | 25 T （speed 0 - 5 km/h） |
Speed | 0 – 8 km/h |
Tire size | 215/75 R 17.5 |
330 Pa when traction (kN) | 4*60KN=240KN |
Max 420 Pa when traction (kN) | 4*75KN=300KN |

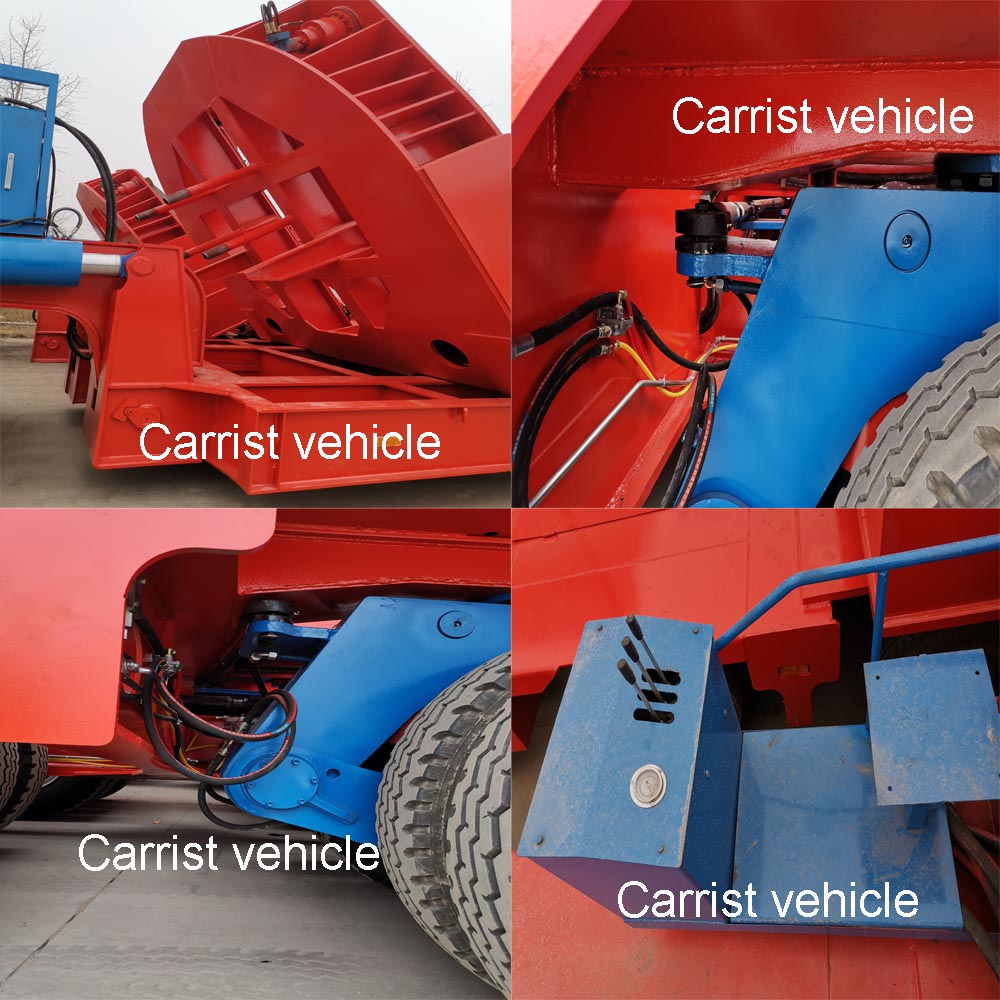

Details of Wind Turbine Blade Adapter

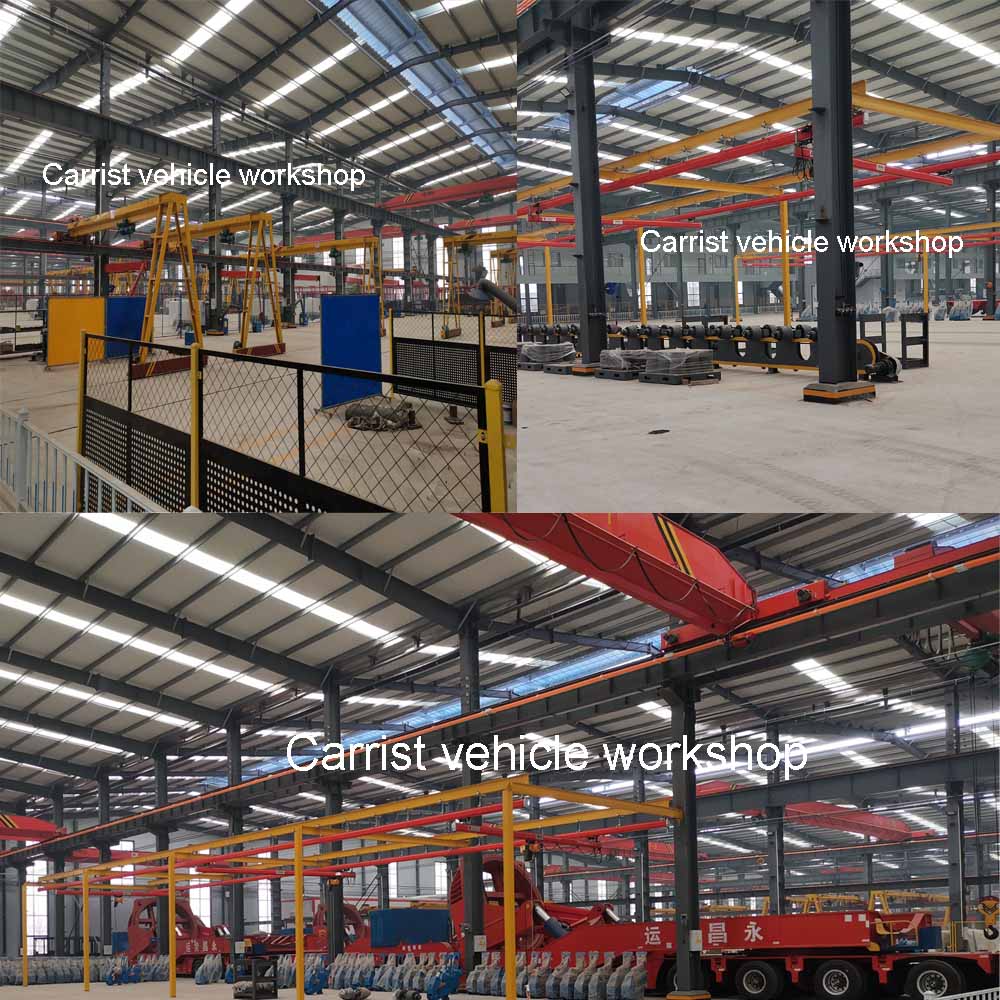

Workshop of Wind Turbine Blade Adapter
