Wind Turbine Blade Lifter

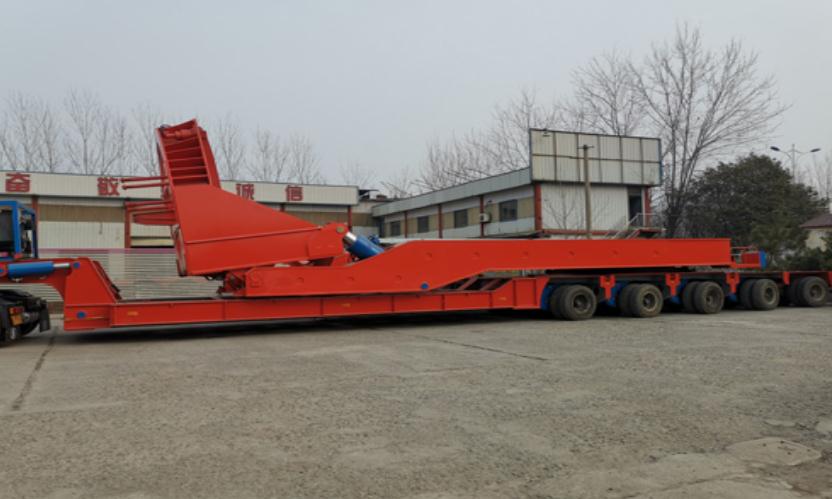

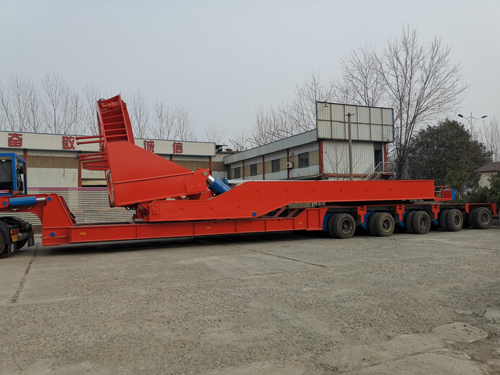

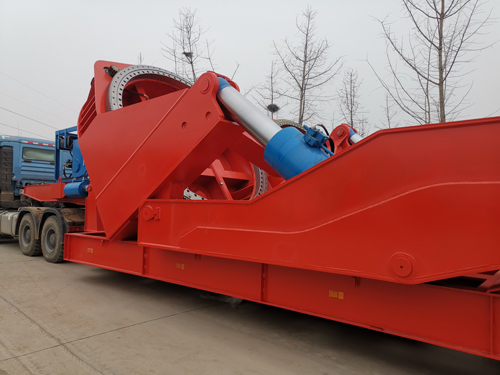

Carrist blade adapter 01 specially designed for the complex avenue transportation of wind turbine blades can carry the blades by hydraulic manage and rotate 360 stages to keep away from various constraints (mountain slopes, trees, homes, bridges, tunnels, and many others.)
Wind Turbine Blade Lifter throughout the transportation, that could lessen the trailing location of the blades, significantly reduce the amount of street reconstruction paintings, shorten the road reconstruction duration, and meet the shortage of turning radius to a certain volume avoiding boundaries including high mountains and cliffs, building organizations, energy poles and house demolition also can notably reduce the overall length of blade delivery automobile body, thus being promoted and applied. specifically in mountainous wind farms, which are restricted by means of the street switch radius, are essentially the handiest transportation mode at present. many wind farms shipping the blades from the blade manufacturing facility to a certain position faraway from the wind farm on the excessive-speed segment through flat semi-trailer, and then transfer them to the plane position thru the blade carry transfer car.
SPECIFICATIONS OF SELF PROPELLED TRAILER CTS-300
Technical performance parameters module unit | 2 axle line drive unit |
length (mm) | 3 100 |
width (mm) | 3 000 |
Low loading height | 780 mm |
The maximum loading height | 1 380 mm |
Normal ride height | 1 080 mm（215/75R17.5） |
Suspension Type / total stroke | Hydraulic suspension / 600 mm |
Hanging regulatory / safety devices | safety valve RBE-R3/8-X-50 HYDAC germany ball valve: BKH-DN13-15L INTEVA spain |
Steering angle | 55° |
Driveshaft / suspension quantity | 3/6 |
Hydraulic motor model | REXROTH A6VE |
Reducer Model | REXROTH GFT |
Max load/axle | 25 T （speed 0 - 5 km/h） |
Speed | 0 – 8 km/h |
Tire size | 215/75 R 17.5 |
330 Pa when traction (kN) | 4*60KN=240KN |
Max 420 Pa when traction (kN) | 4*75KN=300KN |

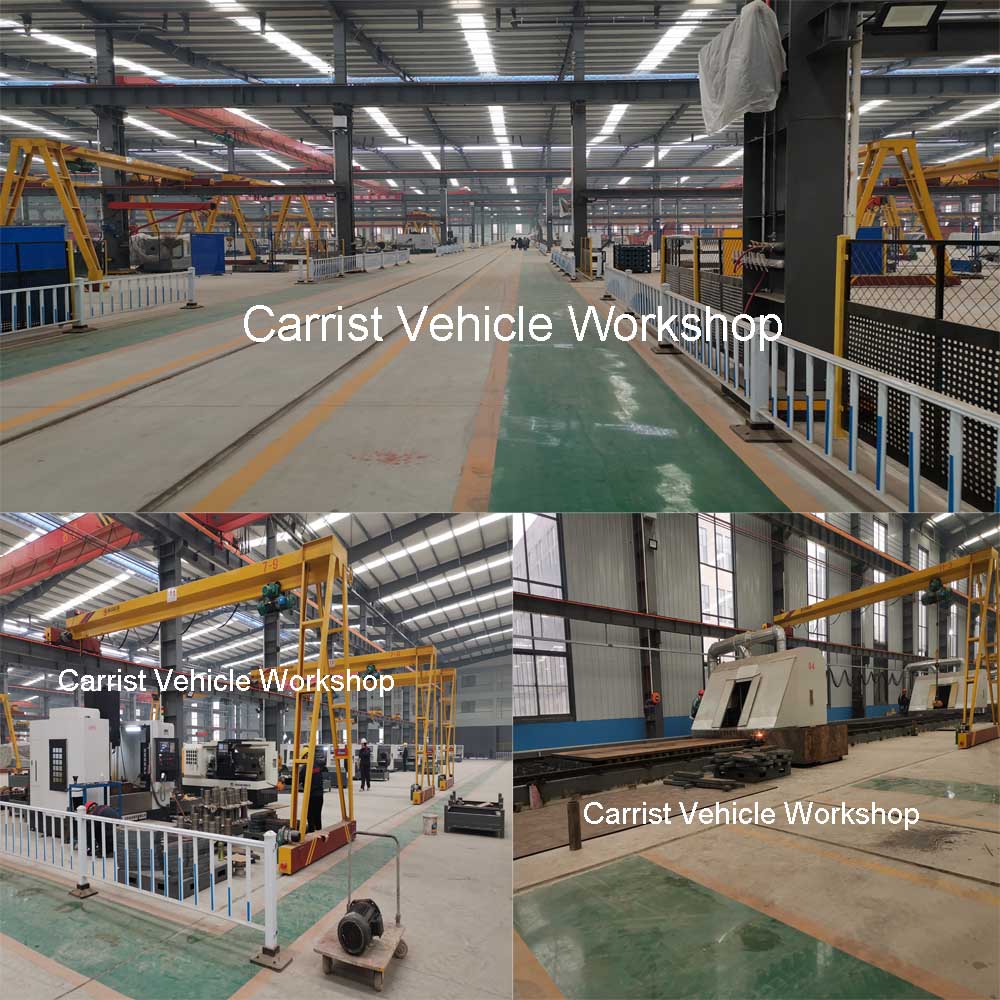

Workshop of Wind Turbine Blade Lifter
