Wind Turbine Blade On Trailer

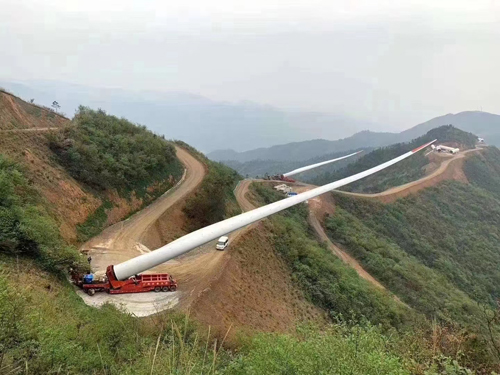

Telescopic Extendable Windmill Turbine Blade Trailer are a solid and economical solution for easy route sections. When space is limited, we can rely on the windmill rotor-blade adapters , wind blade lifter by CARRIST. Mounted on platform trailers, rotor blades can be picked up, positioned at an angle of up to 60°, pivoted as well as rotated around their own axis. Mounted on a quick-release plate, the rotor blades can be securely picked up and maneuvered around any obstacles. In areas with trees or buildings, hairpin turns or in the mountains – the fragile load is thus easily, safely and efficiently delivered to its destination.
Rotor blades for wind strength plant life frequently gift haulage businesses with a difficult task. mainly whilst coping with the “closing mile”, the shipping is regularly extra hard in particular while tight corners or obstacles need to be negotiated. it's miles for precisely these situations that the new adapter technology from carrist provides the right way to keep away from boundaries which include timber or homes with the rotor blades even extra effectively. also on steep hills or narrow winding mountainous roads, the placement of the rotor blade may be tailored to the route without any time loss. on the equal time, a wind sensor warns in opposition to exceeding a parameterizable wind pace. the new rotor blade adapter can be set up and transported on each on a pulled platform trailer combination further to self propelled modules, and guarantees flexible transportation of rotor blades from one of a kind manufacturers thru the short launch plate and consequently most performance and fee-effectiveness in each day use.
Specification of Wind Turbine Blade On Trailer
General | |||
Overall Dimension | 11960mm*3000mm*3300mm | ||
Flatbed Dimension | 8000mm*3000mm | ||
Tare Weight | 9630kg | Pay Load | 40ton |
King Pin Setting | 450mm | Rear Overhang | 1870mm |
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm |
Track | 2160mm | ||
Running Gear | |||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | ||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
Under Frame | |||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | ||
Cross Beam | Mild Alloy Q235, 16# channel beam | ||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | ||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | ||
Flatbed Floor | Checkered sheet, thickness 4mm | ||
Rear Ladders | Spring power-assisted | ||
Electrical & Paint | |||
Detail of Wind Turbine Blade On Trailer

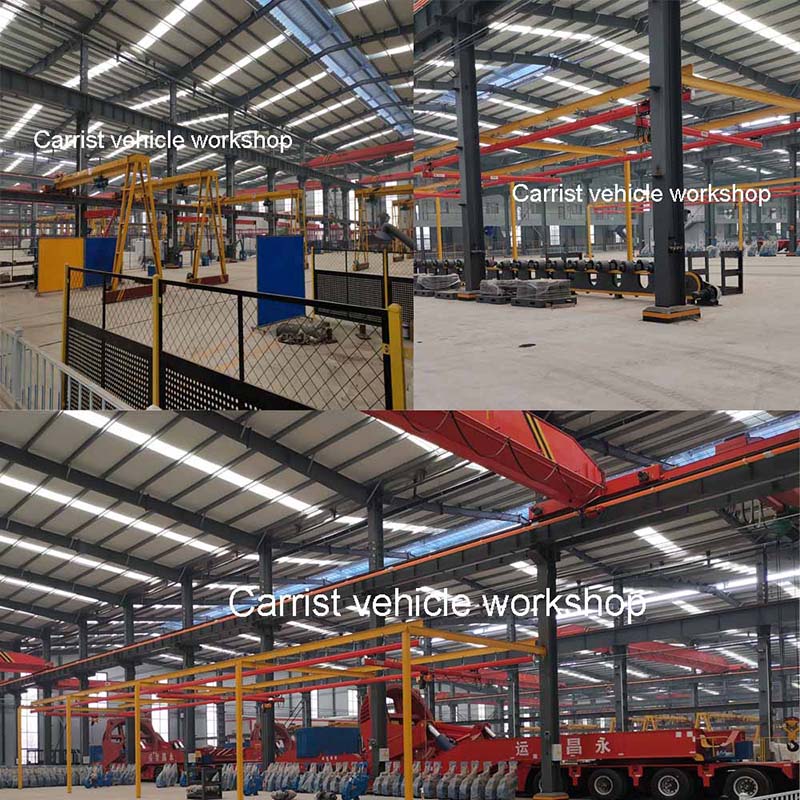

Workshop of Wind Turbine Blade On Trailer
