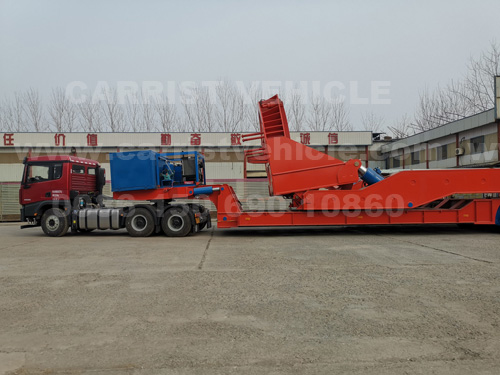

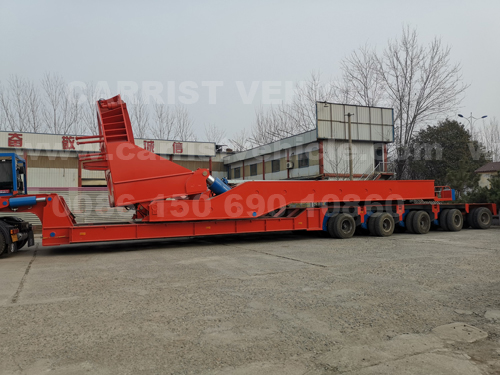

4X8 Wind Turbine Blade Adapter With Modular Trailer
In the wind power industry, CARRIST vehicle 4X8 Wind Turbine Blade Adapter With Modular Trailer mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. CARRIST vehicle 4X8 Wind Turbine Blade Adapter With Modular Trailer provide all types transportation solutions for the wide power industry use.
Comparing with extendable wind blade trailer ,The rotor wind blade adapter can raise, swing, and rotate the blades.windmill tower trailer can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.
Specification:
Brand: Carrist Wind Blade Adapter with Modular Trailer
Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m
Axle: 4 lines 8 axles
Tires: 32 units
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Gooseneck with an active platform: 1m
Hydraulic station: 31KW four-cylinder diesel engine
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
Structures:

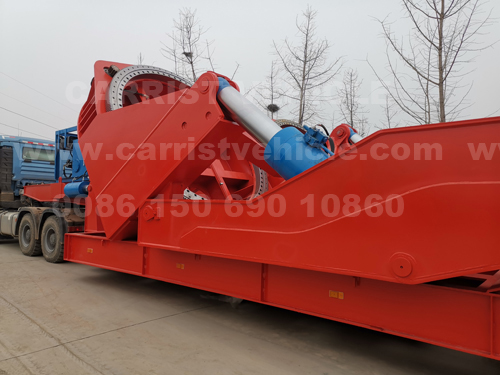

The main components of the blade adapter includes Rotation platform, Blade circle holder, Lifting cylinders, Operation seats and valves, Low bed trailers.
Rotation platform ：The rotation platform is fixed on the Low bed trailer or Hydraulic modular trailer. It is fixed by some big bolts, and also we should weld it on the trailer platform to strength it.
Blade circle holder: One adapter could combine with different specification blade holders, and one holder could load Max. 7 specifications of blades.
Lifting cylinders: The adapter has one cylinder on each side (right and lift) to raise the wind blade
Operation seats and valves :The rotation and lifting movements is operated by manual work.
