Wind Blade Adapter
Carrist blade lifter ought to make the wind blade raise,all through wind blade transportation, leveling and rotate itself to keep away from numerous boundaries including trees, mountains and wires, and successfully clear up the trouble of wind energy blade transportation in mountainous regions.

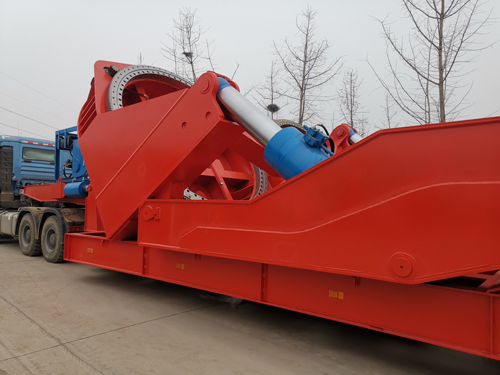

Wind blade adapter carrist blade adapter 01 especially designed for the complicated street transportation of wind turbine blades can enhance the blades by using hydraulic manage and rotate 360 tiers to keep away from numerous constraints (mountain slopes, bushes, homes, bridges, tunnels, and many others.) for the duration of the transportation, that can reduce the trailing place of the blades, significantly reduce the quantity of road reconstruction paintings, shorten the street reconstruction duration, and meet the lack of turning radius to a positive quantity keeping off obstacles at the side of high mountains and cliffs, constructing groups, electricity poles and residence demolition can also extensively lessen the whole length of blade transport vehicle body, consequently being promoted and implemented. specially in mountainous wind farms, which can be restrained via the street transfer radius, are basically the most effective transportation mode at gift. many wind farms delivery the blades from the blade production unit to a certain characteristic some distance from the wind farm at the excessive-velocity section via flat semi-trailer, and then switch them to the plane feature thru the blade enhance switch car.
BLADE LIFTER CTWB SERIES SPECIFICATIONS
Dimention: | 10420*3400*3865mm |
Lifting angle: | 0-36 degree |
Lifting mode: | duel cylinder lifting |
Rotate mode: | 4 motor drive |
Rotate of blade: | 2 motor drive |
Control: | manual+wireless control |
Counter weight size: | 1600*1400mm |
Shifting distance: | 0-4000mm |
Shifting mode: | duel cylinder push |
Weighing mode: | 4 point weight |
Capacity: | 510 ton*m |
Dead weight: | 47,000kgs |
Workshop of Wind Blade Adapter
