Semi Trailer Low Loader

Carrist low deck semi-trailer unique structural requirements: 1 low-plate reinforced semi-trailer will be ready with 90 # a type traction pin according with gb/t 4607 and gb/t 15088, which can be interchanged and matched with the car and meet the applicable provisions of gb/t 4606 and gb/t 15088. 2. high-strength steel with yield power greater than 700mpa ought to be used for the main load-bearing additives inclusive of the body longitudinal beam and the burden-bearing panel beam of the low plate reinforced semi-trailer.


  Contact Now E-Mail Telephone WhatsApp
Product Details

5 Axles Low-bed Semi-trailer

Low flatbed semi-trailers are commonly used to transport heavy vehicles (inclusive of tractors, buses, unique cars, and so on.), rail motors, mining machinery, forestry equipment, creation equipment (consisting of excavators, bulldozers, loaders, road pavers, cranes, and many others.) ) and other heavy loads, the decrease the center of gravity, the better the stability and safety, and the greater the ability to move wonderful excessive loads and pass overhead boundaries.



Semi Trailer Low Loader


Tell me your demand, we recommend suitable trailer professionally. Make business easy!



General

Overall Dimension

11960mm*3000mm*3300mm

Flatbed Dimension

8000mm*3000mm

Tare Weight

9630kg

Pay Load

40ton

King Pin Setting

450mm

Rear Overhang

1870mm

Wheel base

7650mm+1305mm+1305mm

Loading Surface Height

1320mm

Track

2160mm

Running Gear

Suspension

Tri-axle 8-pcs leaf spring suspension with equalizer   beam

Tires

311.00-20, 11.00R20,12.00-20,12.00R20 12units

Axles

AQFUWA, BPW   or STEYR axle, 13T capacity

Brakes

Dual lines pneumatic brake system, WABCO Emergency   Relay Valve; T30/30+T30 air chamber; parking brake

Under Frame

Main Beam

I shape, Mild Alloy (16Mn) by Automatic submerged arc   welding.

Cross Beam

Mild Alloy Q235, 16# channel beam

King Pin

Size: 50# (2'') or 90#(3.5’’); Type: welded or   assembled

Landing Gear

Single side operation or double side operation, Static   capacity 30Ton

Flatbed Floor

Checkered sheet, thickness 4mm

Rear Ladders

Spring power-assisted

Electrical & Paint

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side   reflector, fog lamp, number plate light

Wiring

24V, 6 lines

Air/Elec. Connector

ISO standard air connector, 24V 7 pin plug socket

Paint

Sand blasting before painting, color upon request



We normally adopt delivery with the aid of bulk cargo, flat rack, field box and roro deliver. we can set up the maximum fee-effective transportation mode in step with the quantity of merchandise. all trailers can be polished with wax earlier than delivery. we assure that all merchandise have long past via strict inspection and are in accurate condition earlier than cargo. we try for one hundred% consumer delight on each sale we near.


Semi Trailer Low Loader

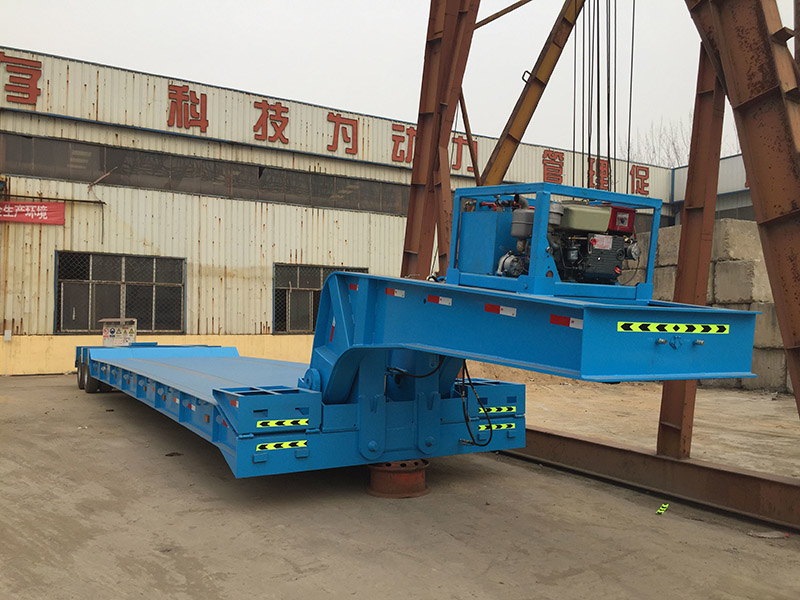

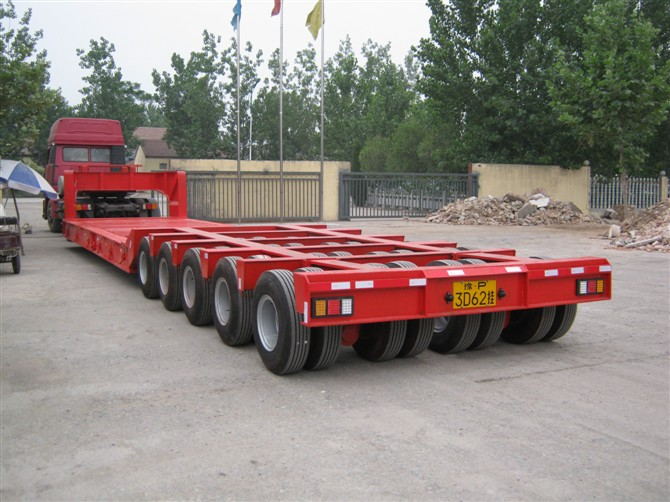

Detail of Semi Trailer Low Loader

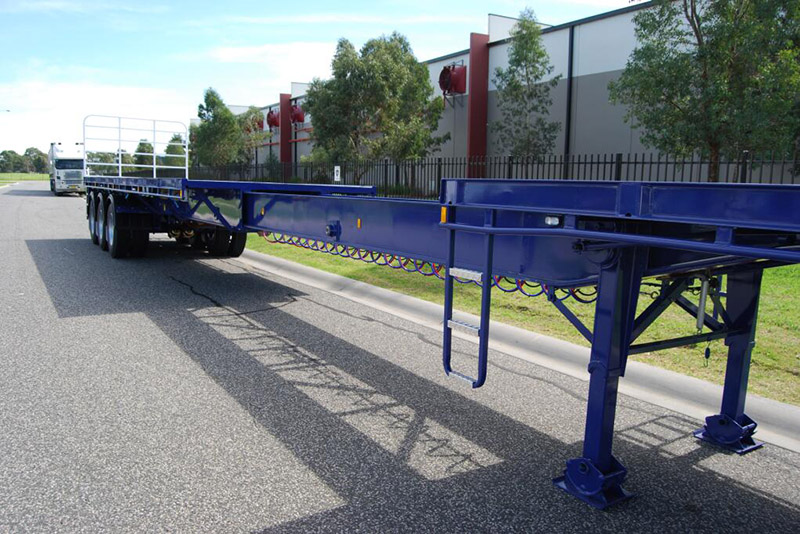

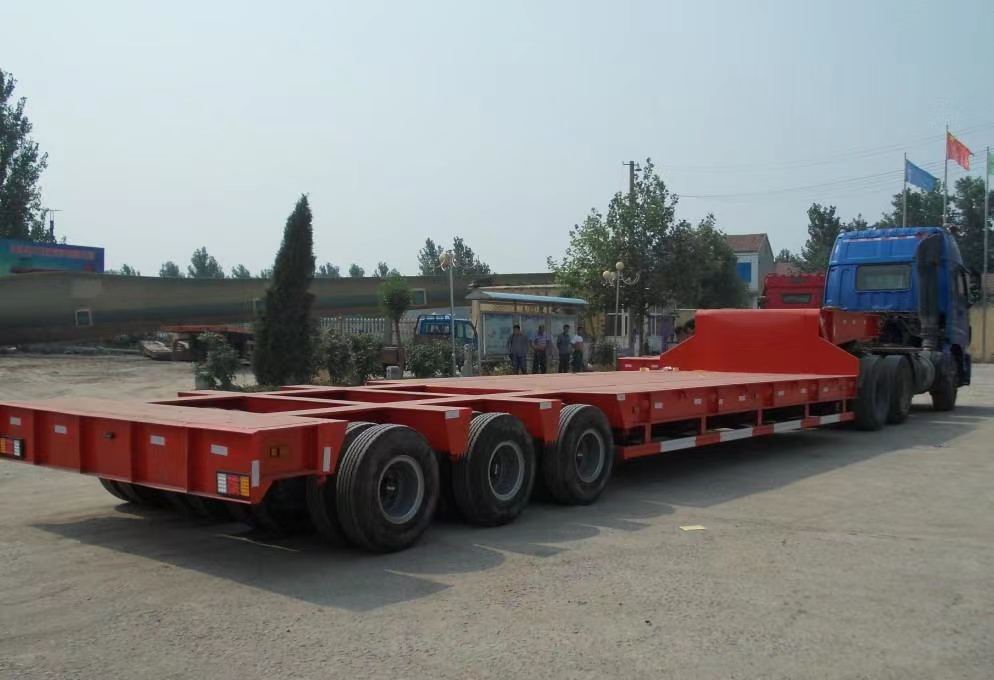

Semi Trailer Low Loader  Semi Trailer Low Loader


Workshop of Semi Trailer Low Loader
