Low Flatbed Semi Trailer
CARRIST Low Loader Semi Trailer, also known as construction machinery transport vehicle, flatbed vehicle and trailer, is mainly used to transport some non-removable objects such as excavators, loaders and harvesters. Flat transporter is a common large truck in life, which is widely used in factories, construction sites and other large production or engineering sites. The strong bearing capacity of flat transporter makes it play an important role in the process of economic development.
CARRIST LOW LOADER SEMI TRAILER low flat semi-trailer is usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy goods. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport super-high goods and pass overhead obstacles The structure of low flat semi-trailer and the loading of low flat semi-trailer usually adopt concave beam type (or well type) frame. The front section of the frame is a gooseneck (the traction pin of the front section of the gooseneck is connected with the traction saddle on the tractor, and the rear end of the gooseneck is connected with the semi-trailer frame), the middle section is a cargo platform (the lowest part of the frame), and the rear end is a wheel frame (including wheels) When loading mechanical equipment onto a low flat semi-trailer, the mechanical equipment is usually loaded from the rear of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi-trailer
Specification of Low Flatbed Semi Trailer
General | |||
Overall Dimension | 11960mm*3000mm*3300mm | ||
Flatbed Dimension | 8000mm*3000mm | ||
Tare Weight | 9630kg | Pay Load | 40ton |
King Pin Setting | 450mm | Rear Overhang | 1870mm |
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm |
Track | 2160mm | ||
Running Gear | |||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | ||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||

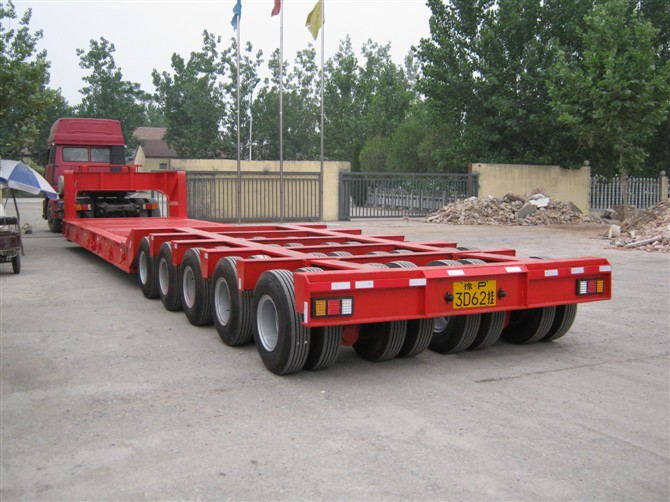

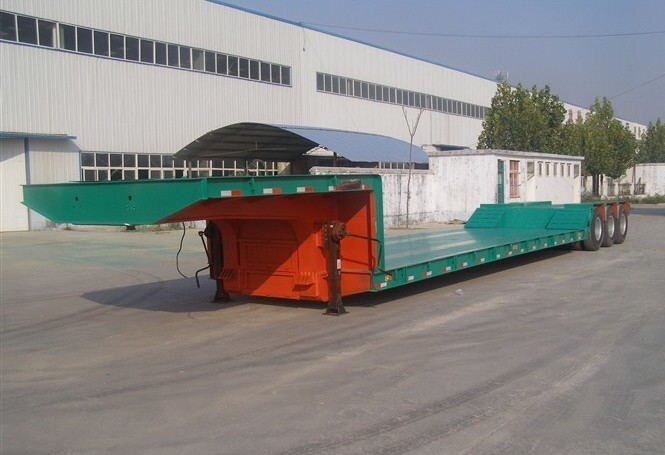

Detail of Low Flatbed Semi Trailer

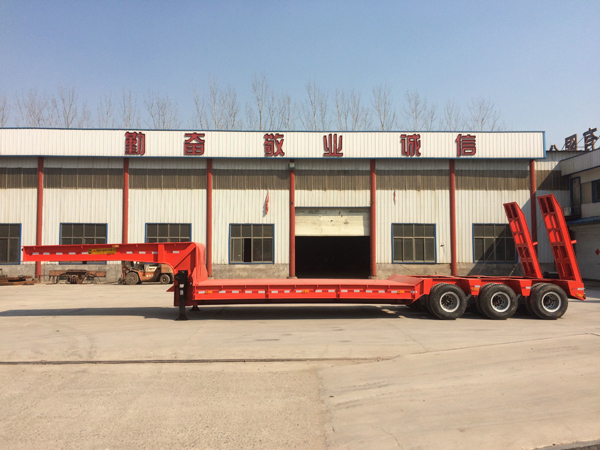

Workshop of Low Flatbed Semi Trailer
