Semi Low Loader
Carrist Semi Low Loaders are mainly transport with all kind of earth moving machine, such as crane, bull dozer, motor grader, fork lift and other heavy equipment. The lower the center of gravity, the better the stability and safety, the stronger the ability to transport over height cargo.
Carrist Semi Low Loader is also widely used for the transportation of a variety of mechanical equipment, mega objects, highway construction equipment, super tanks, power station equipment and all kinds of steel structures.

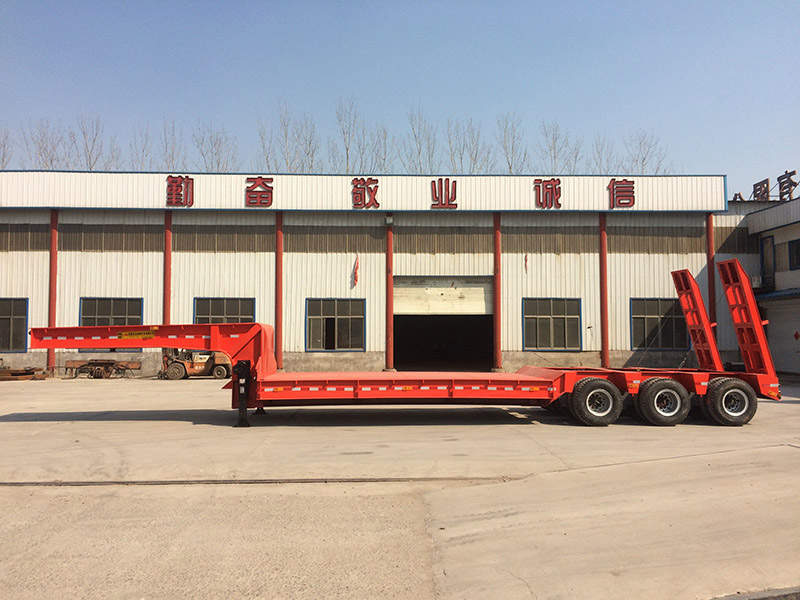

Carrist Semi Low Loader usually adopts drop deck platform, that is, the front section is gooseneck (the king pin of gooseneck is connected with the fifth wheel of the truck, and the rear end of gooseneck is connected with the Semi Low Loader platform), the rear section is cargo platform (the lowest part of the platform).
When loading the earthing moving machine on the Semi Low Loader, the earthing moving machine is usually loaded from the rear end of the Semi Low Loader from the ramp, and then the earthing moving machine is fixed on the Semi Low Loader.
Specification of Semi Low Loader
Speed | 5 km/h | 3 km/h | 1 km/h | 0.5 km/h |
Payload (Net load) | 104,000 kg | 112,000 kg | *)128,000 kg | *)144,000 kg |
Dead weight (approx.) | 16,000 kg | 16,000 kg | 16,000 kg | 16,000 kg |
Max. rated total weight | 120,000 kg | 128,000 kg | 144,000 kg | 160,000 kg |
Rated axle load/line | 30,000 kg | 32,000 kg | *) 36,000 kg | *) 40,000 kg |
Loading platform size, L x W | approx. 5,600mmx2,430mm | |||
Loading platform height (Initial position) | approx. 1,150mm | |||
Loading platform height(Driving position) | approx. 1,500mm | |||
Lift / compensation stroke | approx. 700mm (±350mm) | |||
Wheel carrier No. (Total) | 8 sets | |||
Wheel carrier No. (Drive) | 2 sets | |||
Wheel carrier No. (Brake) | 4 sets | |||
Wheel carrier No. (Running) | 2 sets | |||
Traction force @ 400bar | approx. 2x80 kN=160kN | |||
Brake force | approx. 4x55 kN=220kN | |||
Permitted Max driving speed | approx. 11.5km/h | |||
Tire | 16x355/65-15PR28 | |||
Steering angle | Rack and pinion, approx.+130°/ -100° | |||
Working Temperature | approx.-20°C〜+40°C | |||
Permitted platform bending moment | approx.+7700kNm/-6300kNm | |||
Faq of Semi Low Loader
Q What is the difference between a modular trailer and a self propelled trailer?
A Based totally on the structure of the modular trailer, spmt is ready with a strength machine, and every suspension is changed to an independent suspension. standardize and modularize the structure shape, and continuously splice the module according to the exceptional of goods. it integrates computer and micro electric powered technology, hydraulic generation and wi-fi conversation era to recognize wireless smart operation.
Q Can modular trailers be customized?
A Yse, for sure. modular trailers may be customized.it can be designed to move of different shipment with its special size. ..., also can meet with consumer needs to make with different size of module, to achieve for great solution for shipping need.
Q What is a modular trailer?
A Modular trailer have 8 tires on every line, each module can be make as 2, three, four, five and 6 as one unit, which can be spliced longitudinally or horizontally; all axles can guidance.

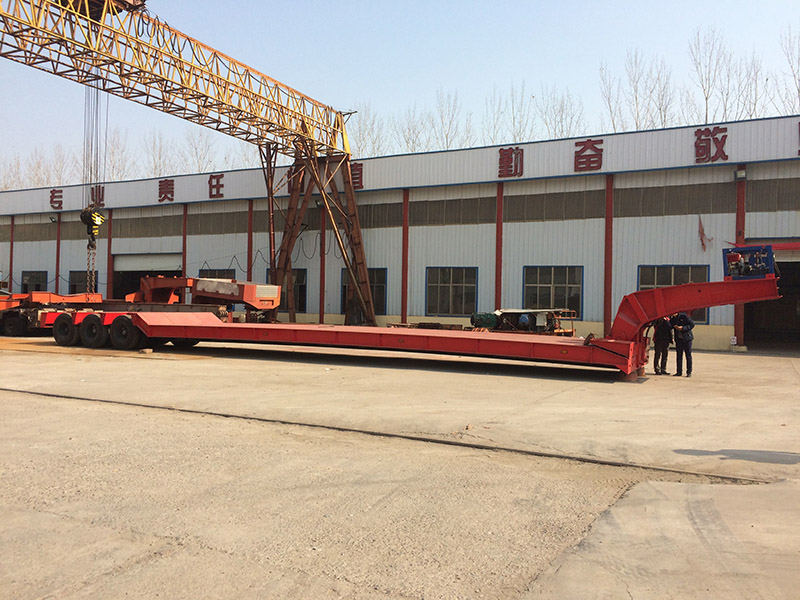

Workshop of Semi Low Loader
