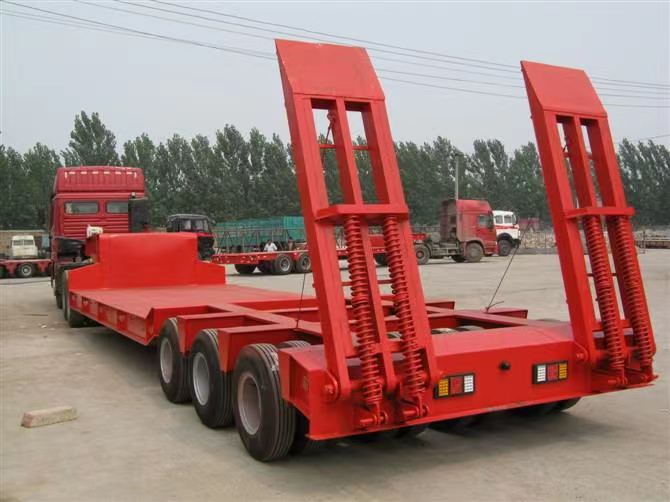

Semi Low Loader Trailer
Carrist low deck semi-trailer unique structural requirements: 1 low-plate bolstered semi-trailer will be ready with 90 # a kind traction pin according with gb/t 4607 and gb/t 15088, which may be interchanged and coupled with the car and meet the relevant provisions of gb/t 4606 and gb/t 15088. 2. excessive-energy metallic with yield power more than 700mpa need to be used for the principle load-bearing additives including the body longitudinal beam and the burden-bearing panel beam of the low plate strengthened semi-trailer.
Carrist semi low loaders are specifically transport with all type of earth transferring gadget, which incorporates crane, bull dozer, motor grader, fork raise and other heavy device. the lower the center of gravity, the better the stableness and protection, the stronger the capability to move over height shipment.

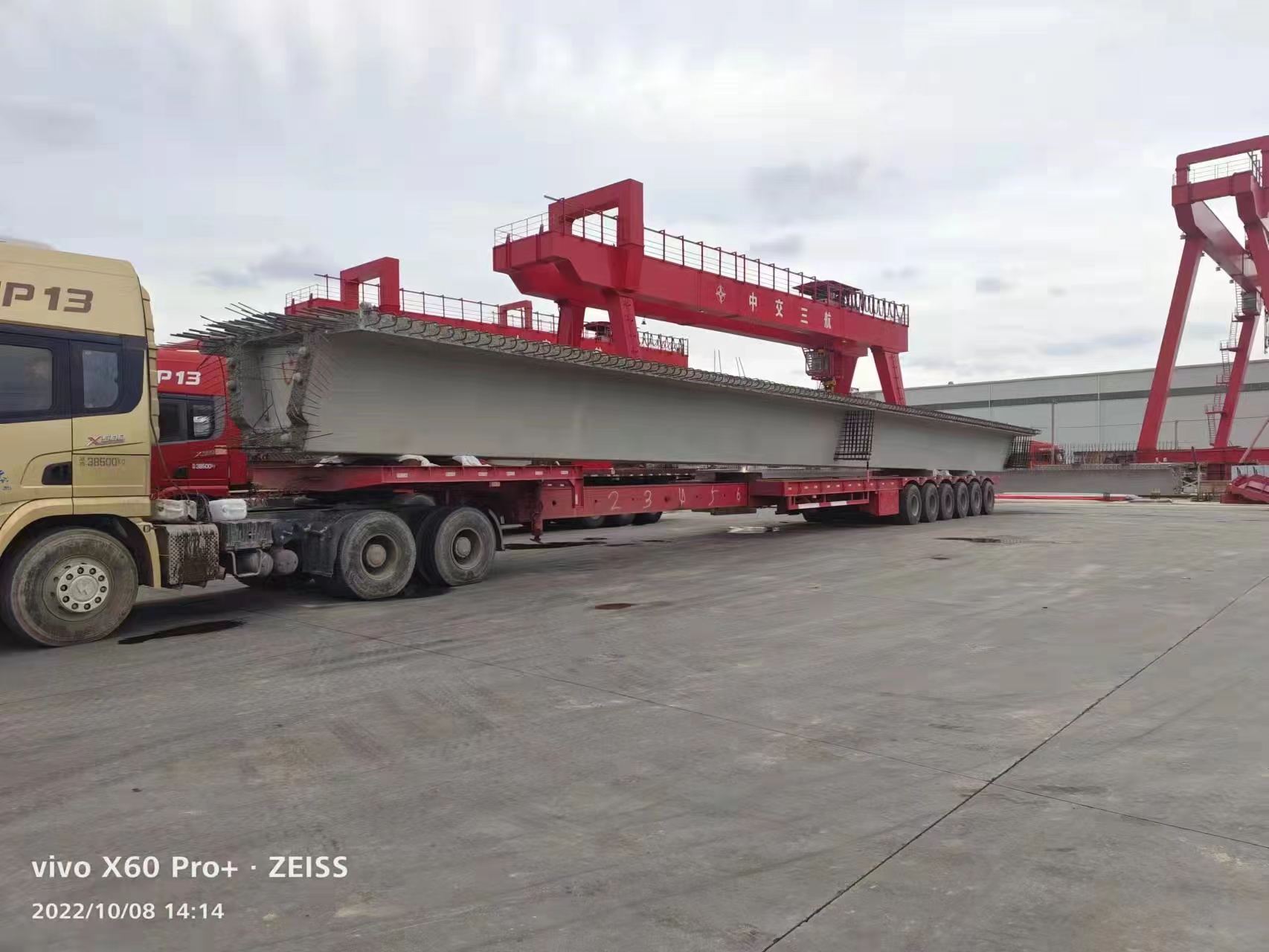

Carrist semi low loader is also widely used for the transportation of a diffusion of mechanical gadget, mega objects, highway advent device, extremely good tanks, energy station system and all forms of steel systems.
General | |||
Overall Dimension | 11960mm*3000mm*3300mm | ||
Flatbed Dimension | 8000mm*3000mm | ||
Tare Weight | 9630kg | Pay Load | 40ton |
King Pin Setting | 450mm | Rear Overhang | 1870mm |
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm |
Track | 2160mm | ||
Running Gear | |||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | ||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
Under Frame | |||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | ||
Cross Beam | Mild Alloy Q235, 16# channel beam | ||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | ||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | ||
Flatbed Floor | Checkered sheet, thickness 4mm | ||
Rear Ladders | Spring power-assisted | ||
Electrical & Paint | |||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Wiring | 24V, 6 lines | ||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | ||
Paint | Sand blasting before painting, color upon request | ||

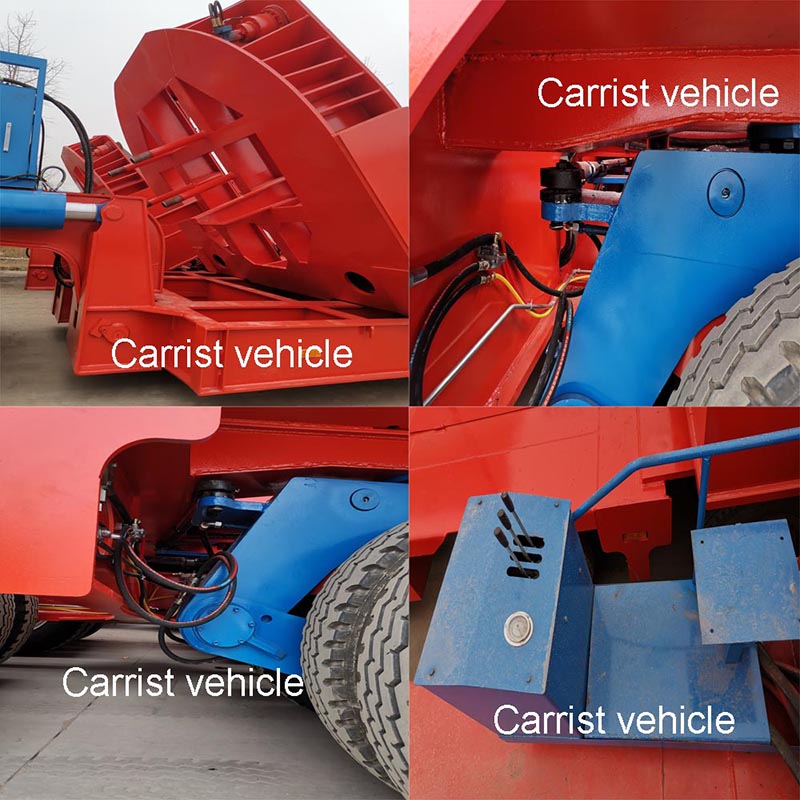

Details of Semi Low Loader Trailer

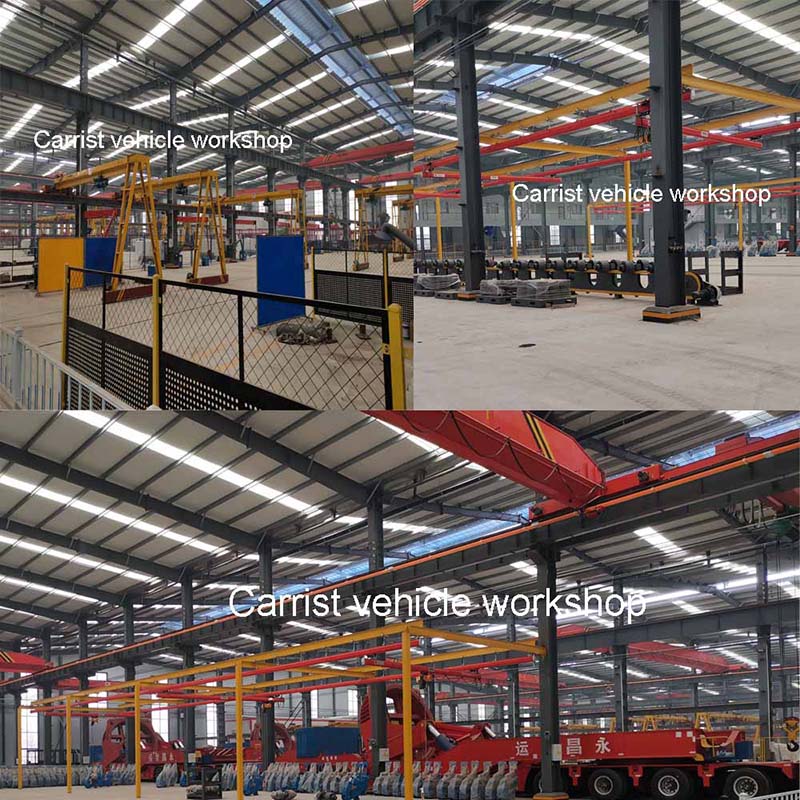

Workshop of Semi Low Loader Trailer
