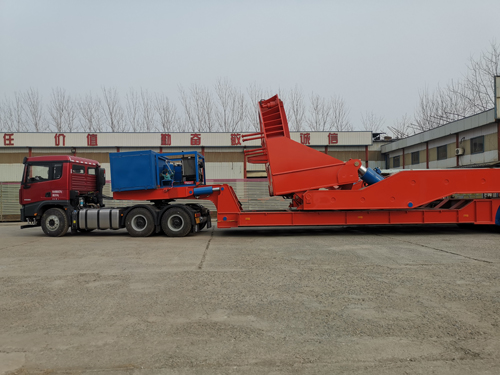

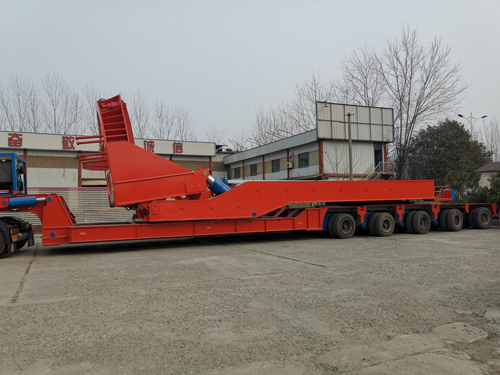

Windmill Turbine Adapter
Carrist windmill turbine adapter blade lifter could make the wind blade elevate,all through wind blade transportation, leveling and rotate itself to keep away from various limitations including timber, mountains and wires, and efficiently clear up the hassle of wind energy blade transportation in mountainous regions.
•The blade is directly fix to the blade lifter and lifted in midair to move the first-rate long blade with a quick total period of trailer.
•During transportation, the hydraulic control can make the wind blade rotate 360 °, the wind blade can rotate 360 ° through the lower slewing bearing and annular slide, and the maximum starting attitude of the wind blade is 60 ° thru the expansion and contraction of the oil cylinder, which can lessen the counter weight added.
Wind blade adapter carrist blade adapter 01 specially designed for the complicated avenue transportation of wind turbine blades can enhance the blades by using using hydraulic control and rotate 360 tiers to keep away from numerous constraints (mountain slopes, trees, houses, bridges, tunnels, and lots of others.) for the duration of the transportation, that may lessen the trailing vicinity of the blades, considerably reduce the quantity of road reconstruction paintings, shorten the street reconstruction period, and meet the lack of turning radius to a nice quantity preserving off boundaries at the side of high mountains and cliffs, constructing companies, electricity poles and residence demolition can also notably reduce the complete period of blade transport car body, consequently being promoted and implemented. mainly in mountainous wind farms, which may be restricted via the road switch radius, are basically the only transportation mode at gift. many wind farms delivery the blades from the blade manufacturing unit to a certain feature far from the wind farm at the immoderate-speed segment through flat semi-trailer, after which transfer them to the aircraft characteristic via the blade beautify transfer car.
SPECIFICATIONS of Windmill Turbine Adapter
Dimention: | 10420*3400*3865mm |
Lifting angle: | 0-36 degree |
Lifting mode: | duel cylinder lifting |
Rotate mode: | 4 motor drive |
Rotate of blade: | 2 motor drive |
Control: | manual+wireless control |
Counter weight size: | 1600*1400mm |
Shifting distance: | 0-4000mm |
Shifting mode: | duel cylinder push |
Weighing mode: | 4 point weight |
Capacity: | 510 ton*m |
Dead weight: | 47,000kgs |

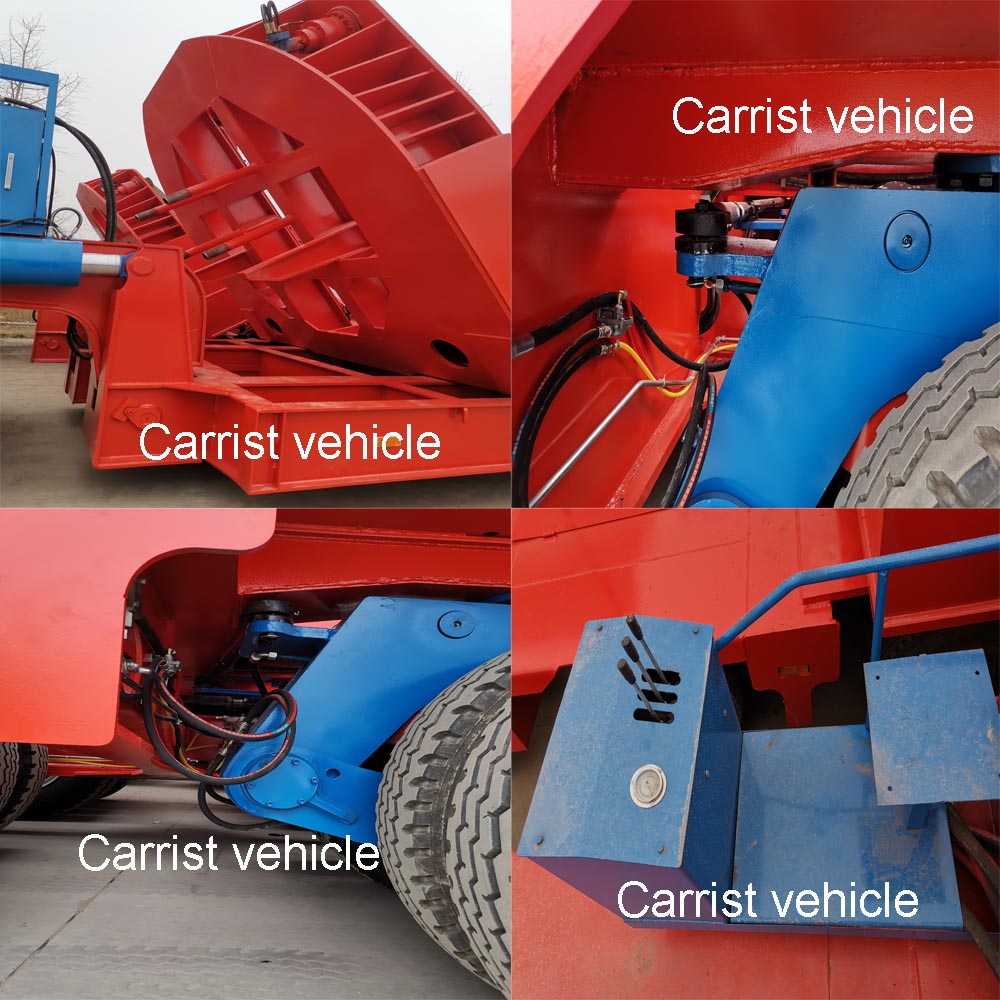

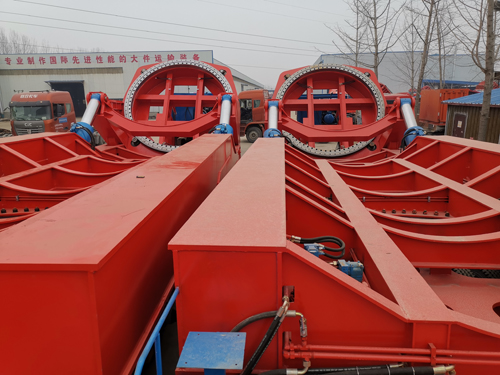

Workshop of Windmill Turbine Adapter
