Transport Of Wind Turbine Blades

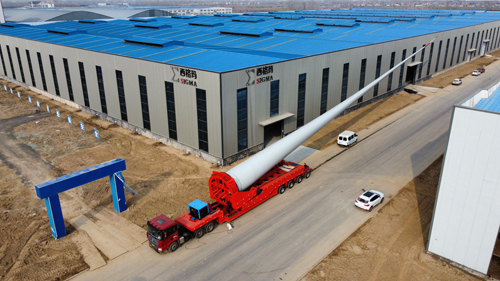

WIND TURBINE BLADE TRAILER CTB series KEY FEATURES.


The telescopic boom can be 1-3 in option, the max length will Up to 75m.


Go with high grade of steel which makes on the booms, so can make the trailer Lightweight in tare weight.


Go with hydraulic forcing steering and integrated powerful power pack, which can make the steering angle to above     50 degree.

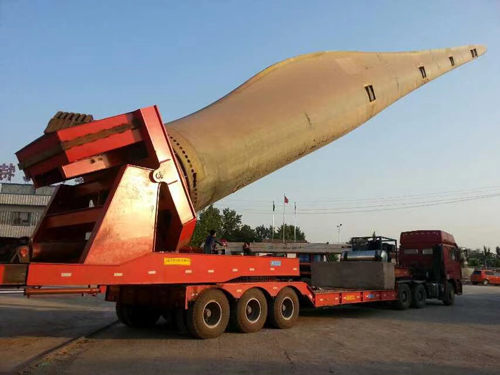

Different kind way of smart design on blade lifter wind turbine so can keep the loading platform in a low position


Use durable axle and suspension with trailer,  to keep the trailer can have a high payload.


Various suspension systems in options for different kinds of transport tasks:


1. Turntable steering


2. Knuckle steering


3. Hydraulic swing axle

  Contact Now E-Mail Telephone WhatsApp
Product Details

5 Axles Low-bed Semi-trailer

Low flatbed semi-trailers are generally used to transport heavy automobiles (along with tractors, buses, special cars, and many others.), rail motors, mining machinery, forestry equipment, production machinery (including excavators, bulldozers, loaders, road pavers, cranes, and so on.) ) and different heavy masses, the decrease the middle of gravity, the higher the stability and safety, and the extra the ability to move incredible high hundreds and bypass overhead limitations.



Tell me your demand, we recommend suitable trailer professionally. Make business easy!



General

Overall Dimension

11960mm*3000mm*3300mm

Flatbed Dimension

8000mm*3000mm

Tare Weight

9630kg

Pay Load

40ton

King Pin Setting

450mm

Rear Overhang

1870mm

Wheel base

7650mm+1305mm+1305mm

Loading Surface Height

1320mm

Track

2160mm

Running Gear

Suspension

Tri-axle 8-pcs leaf spring suspension with equalizer   beam

Tires

311.00-20, 11.00R20,12.00-20,12.00R20 12units

Axles

AQFUWA, BPW   or STEYR axle, 13T capacity

Brakes

Dual lines pneumatic brake system, WABCO Emergency   Relay Valve; T30/30+T30 air chamber; parking brake

Under Frame

Main Beam

I shape, Mild Alloy (16Mn) by Automatic submerged arc   welding.

Cross Beam

Mild Alloy Q235, 16# channel beam

King Pin

Size: 50# (2'') or 90#(3.5’’); Type: welded or   assembled

Landing Gear

Single side operation or double side operation, Static   capacity 30Ton

Flatbed Floor

Checkered sheet, thickness 4mm

Rear Ladders

Spring power-assisted

Electrical & Paint

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side   reflector, fog lamp, number plate light

Wiring

24V, 6 lines

Air/Elec. Connector

ISO standard air connector, 24V 7 pin plug socket

Paint

Sand blasting before painting, color upon request



We usually undertake shipping by way of bulk shipment, flat rack, field box and roro deliver. we can set up the maximum fee-effective transportation mode according to the quantity of merchandise. all trailers will be polished with wax earlier than shipping. we guarantee that each one products have long gone via strict inspection and are in suitable situation earlier than shipment. we try for one hundred% consumer pride on each sale we close.


Transport Of Wind Turbine Blades

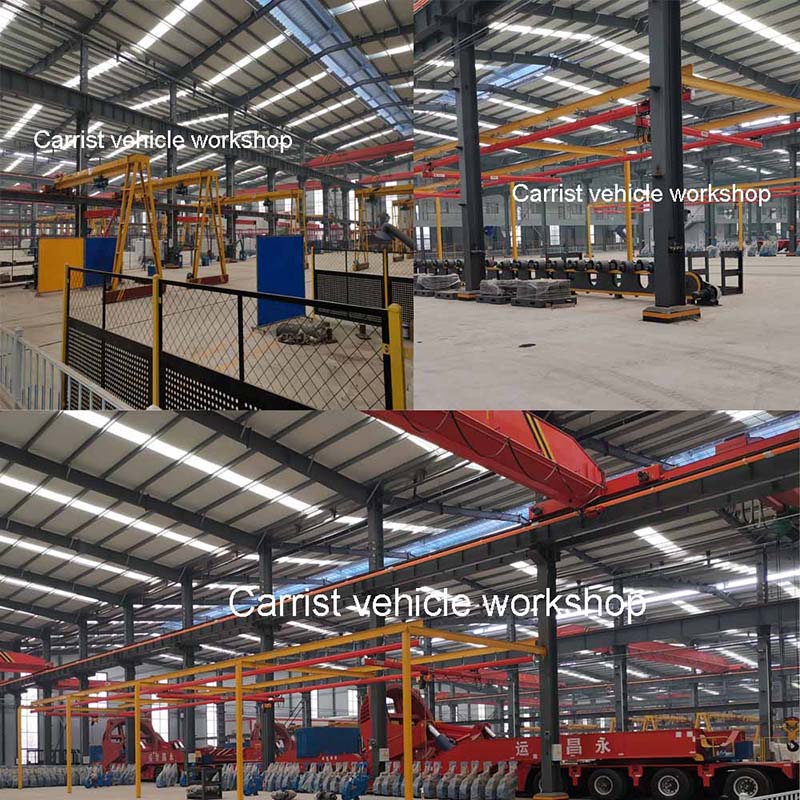

Workshop of Transport Of Wind Turbine Blades
