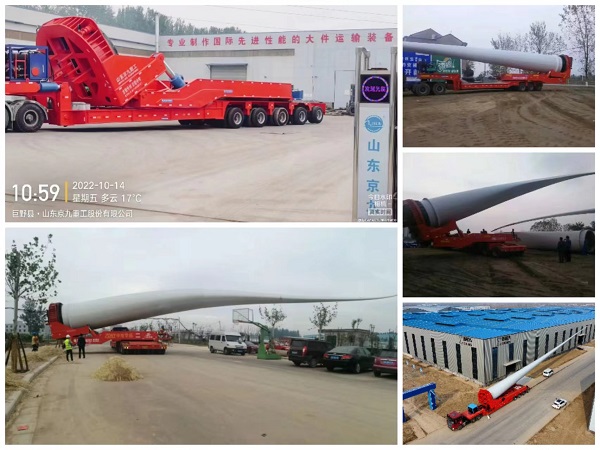

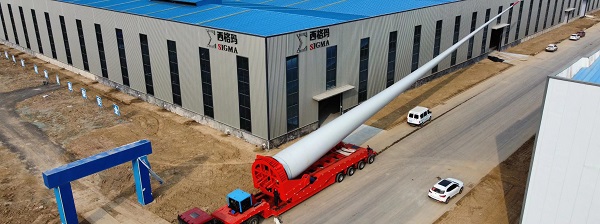

3X6 Wind Turbine Blade Adapter With Modular Trailer
Features:
1. Max rotation angle of the rotor blade 360°
2. Max rotation angle of the platform 360°
3. Angle of inclination up to 60°
4. Radio remote control with display of wind speed, transverse gradient, blade position, ballast position
5. Wind blade adapter can combine with modular semi trailer and heavy duty low bed trailer.
6. The height of trailer platform can be 500mm to 1000mm
7. Self-balancing counterweight ensure the transport stability and safety
8. The suitable speed for complicated mountain roads: 20km/h

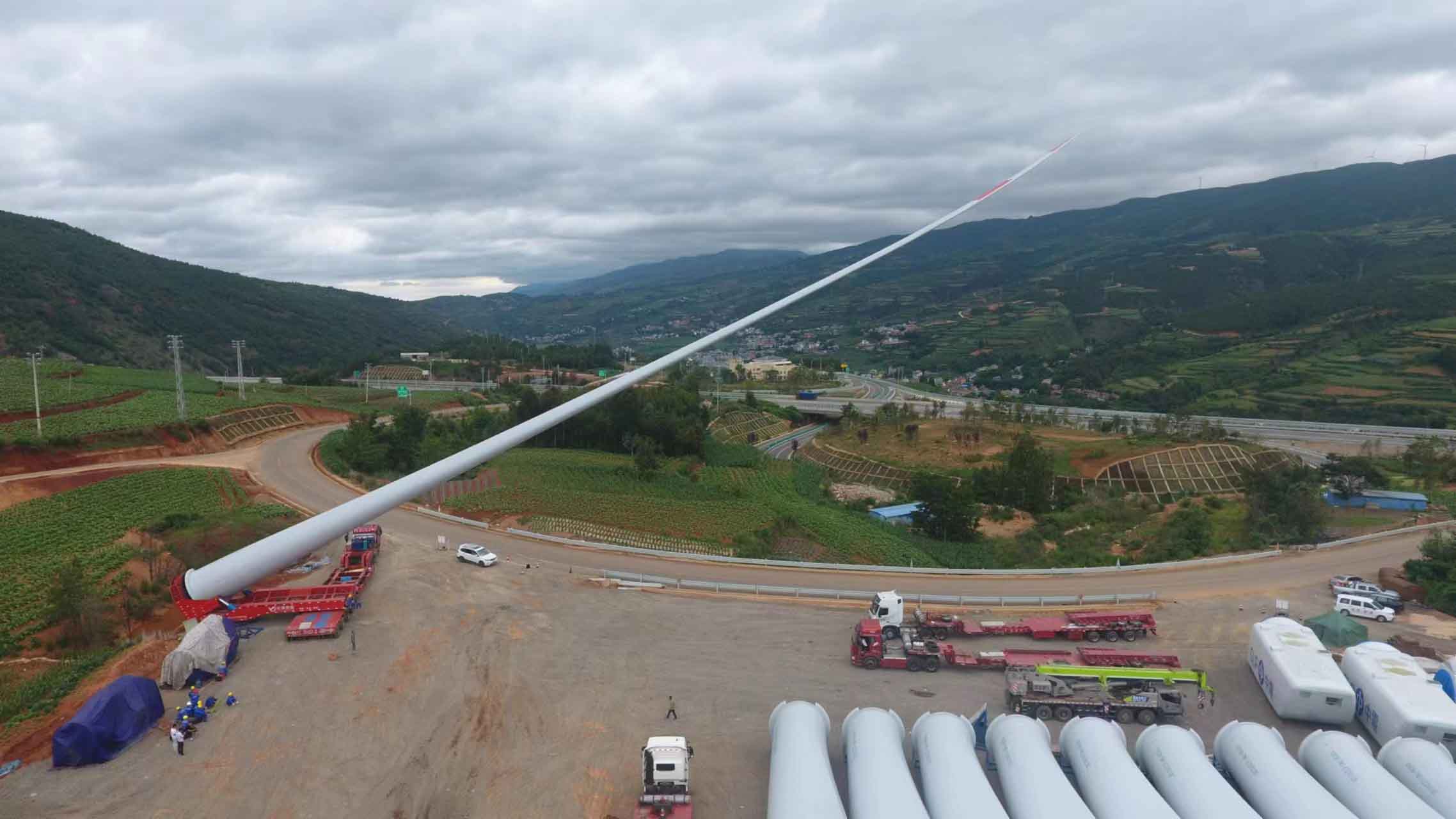

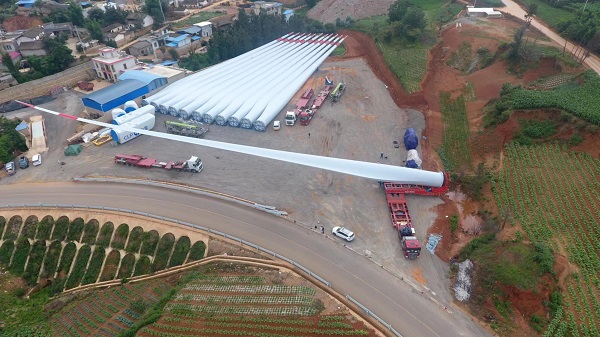

9. The maximum transport length of the blade is more than 75m
Specification:
Brand: Carrist Wind Blade Adapter with Modular Trailer
Dimension: 16250mm*3700mm*5000mm
Applicable blade: 80m, 121-156 model windmill blades
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Tires: 24 units
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Gooseneck with an active platform: 1m
Hydraulic station: 31KW four-cylinder diesel engine
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
