Wind Turbine Blade Trailer
1.trailer's duration from 22.25 meters increase to 50 meters
2.transport the forty five meters to eighty meters windmill turbine blade.
3.loading capacity is as much as 90 ton
4.steerable axles, all wheels steerage.
5.fantastically robust frames and first-rate balance of extension beam.
6.mechanical spring suspension, air suspension or hydraulic suspension is an alternative
7.guide valve operation and wireless far flung manipulate.
Carrist Wind Turbine Blade Trailer wind turbine blade trailer suspension kind consists of leaf spring suspension, hydraulic suspension, and airbag suspension allow's introduce to you:

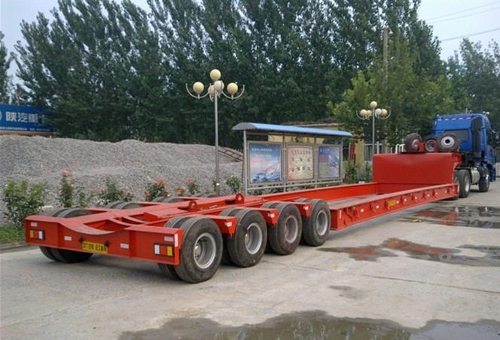

•the leaf spring blade trailer is truly similar to the semi-low loader, but its chassis adopts the container design. the chassis adjusts the trailer length via pulling to adapt to the wind blade shipping of different lengths. it's far understood that the maximum period of the contemporary wind turbine blade on a trailer can reach 75m.
•the largest distinction among the hydraulic blade trailer and the ordinary blade trailer is that the axle adopts the hydraulic axle design, which makes the platform of the blade trailer lower and the steering greater bendy.
•airbag suspension is the most monetary manner among the above two alternatives, it can have a confined stroke and also can have a balance among every axle.
Details of Wind Turbine Blade Trailer:
Dimention: | 10420*3400*3865mm |
Lifting angle: | 0-36 degree |
Lifting mode: | duel cylinder lifting |
Rotate mode: | 4 motor drive |
Rotate of blade: | 2 motor drive |
Control: | manual+wireless control |
Counter weight size: | 1600*1400mm |
Shifting distance: | 0-4000mm |
Shifting mode: | duel cylinder push |
Weighing mode: | 4 point weight |
Capacity: | 510 ton*m |
Dead weight: | 47,000kgs |

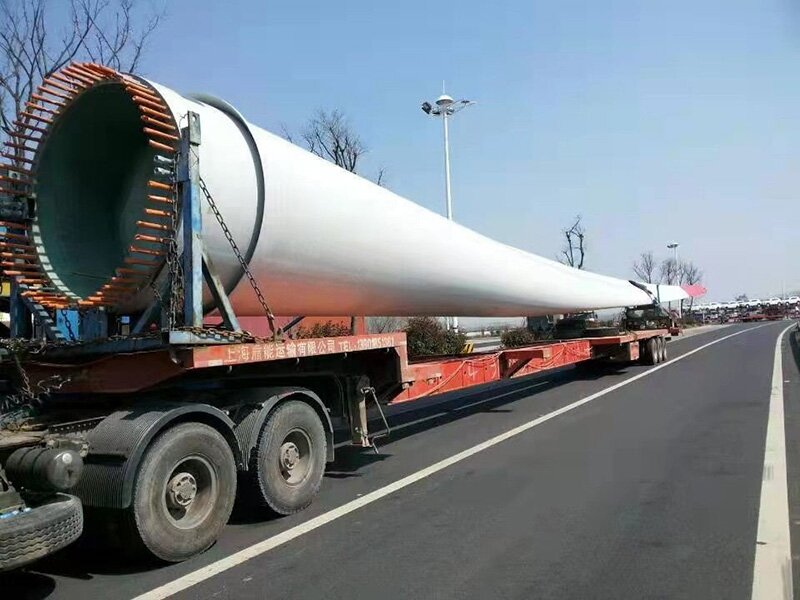

Shipping of Wind Turbine Blade Trailer:

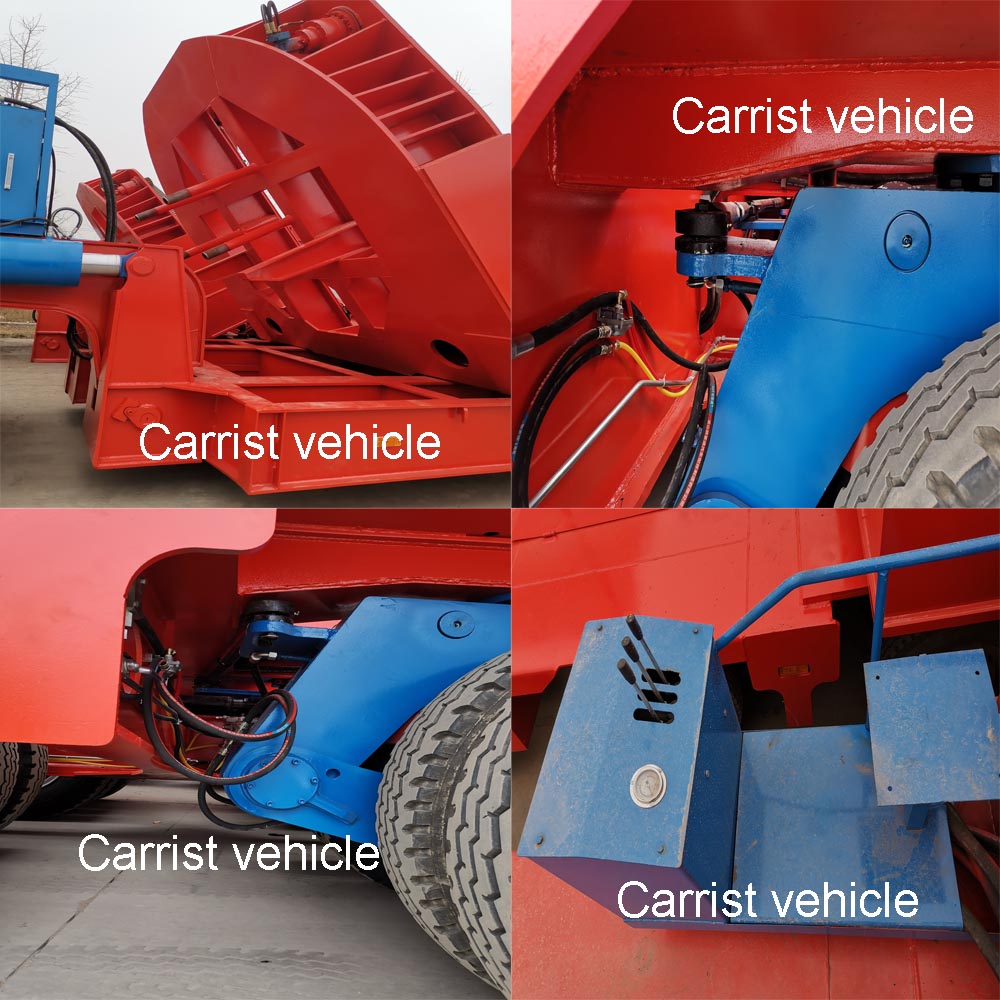

Details of Wind Turbine Blade Trailer
