Wind Blade Trailer
For transporting extremly heavy and long windmill turbine blade - Wind Turbine Blade Trailer from Carrist is the best ideal solution, with single to triple extendable decks and a loading length of up to 56 meters.
Wind Blade Trailer carrist wind turbine blade trailer suspension kind includes leaf spring suspension, hydraulic suspension, and airbag suspension let's introduce to you:

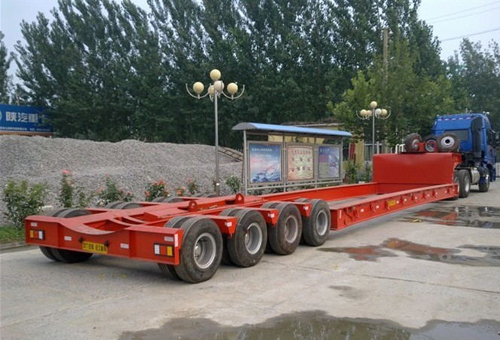

•the leaf spring blade trailer is relatively similar to the semi-low loader, but its chassis adopts the field design. the chassis adjusts the trailer length through pulling to evolve to the wind blade shipping of various lengths. it is understood that the maximum length of the modern wind turbine blade on a trailer can reach 75m.
•the largest distinction between the hydraulic blade trailer and the normal blade trailer is that the axle adopts the hydraulic axle layout, which makes the platform of the blade trailer lower and the steering greater flexible.
•airbag suspension is the maximum monetary way among the above two alternatives, it is able to have a restrained stroke and also can have a balance between every axle.
Specification of Wind Blade Trailer:
Dimention: | 10420*3400*3865mm |

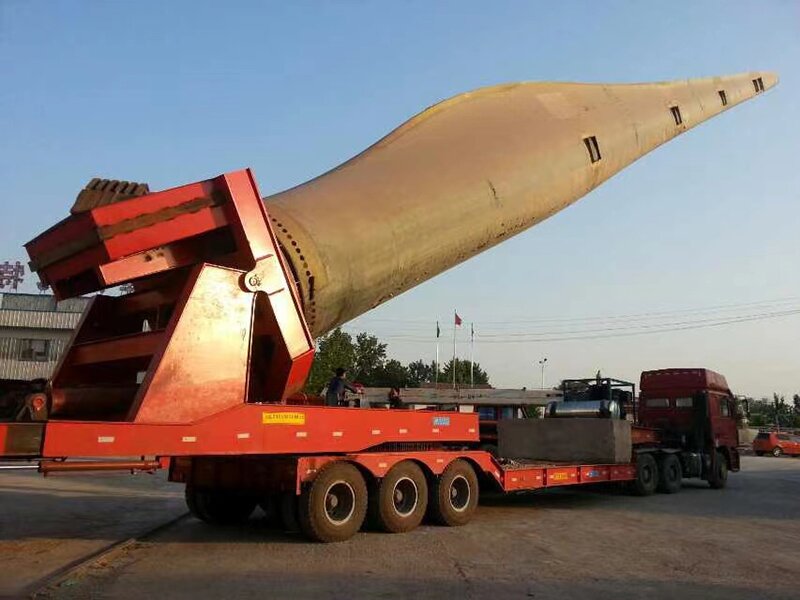

Lifting angle: | 0-36 degree |
Lifting mode: | duel cylinder lifting |
Rotate mode: | 4 motor drive |
Rotate of blade: | 2 motor drive |
Control: | manual+wireless control |
Counter weight size: | 1600*1400mm |
Shifting distance: | 0-4000mm |
Shifting mode: | duel cylinder push |
Weighing mode: | 4 point weight |
Capacity: | 510 ton*m |
Dead weight: | 47,000kgs |

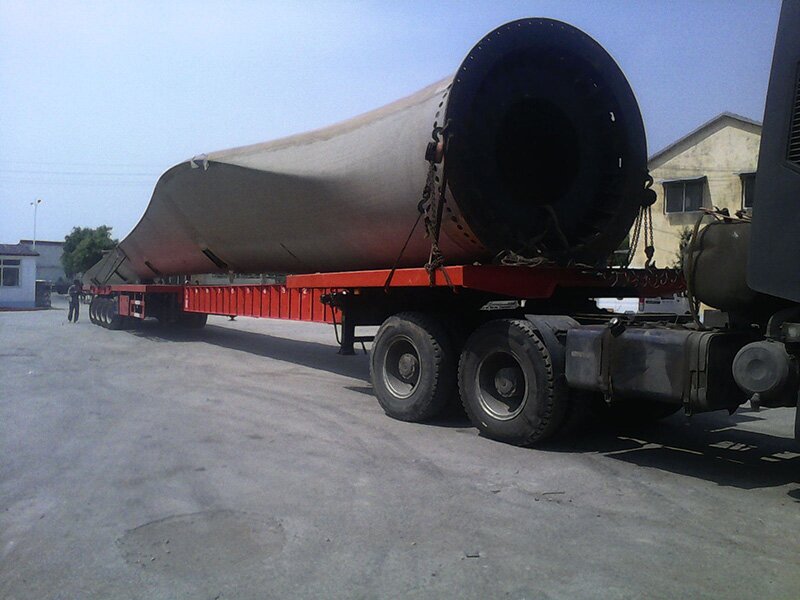

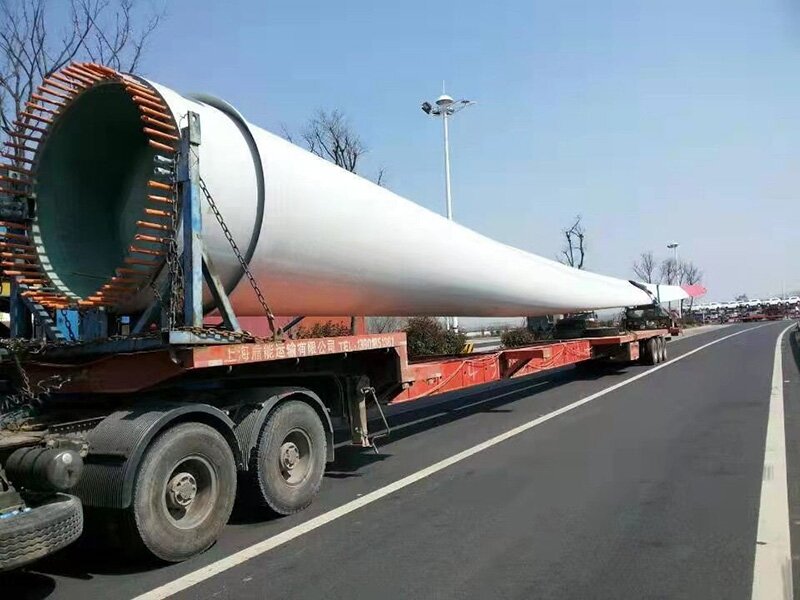

Shipping of Wind Turbine Blade Trailer:
Workshop of Wind Blade Trailer
