Rotor Blade Adaptor

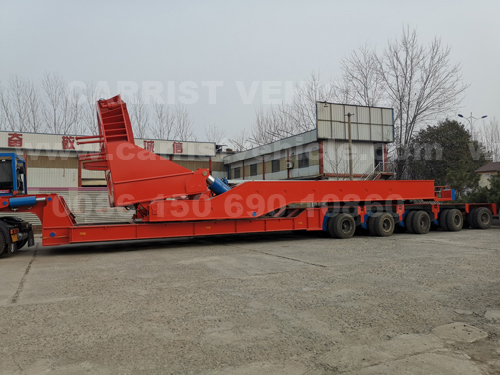

Carrist car has unveiled its biggest ever blade lifter –ctwb- one hundred – designed for optimum protection and stability whilst transporting wind turbine rotor blades. the trailer can be used now not best within the standard three-m width however additionally with break up combinations in widths of as much as over four m.
Relying on the configuration, even the ultra-modern era of rotor blades requiring a load second of as much as 900 meter-ton can be picked up and transported with full flexibility in the towed or self-propelled mode, in keeping with carrist.
With the break up-combination option and mounting in the back of the loading area, the ctwb-one hundred offers appreciably excessive stability blended with low ballast weight. this outcomes in a transportation system with a low centre of gravity and maximum protection from tipping. it additionally guarantees low axle loads and price-powerful operations.
Specification:

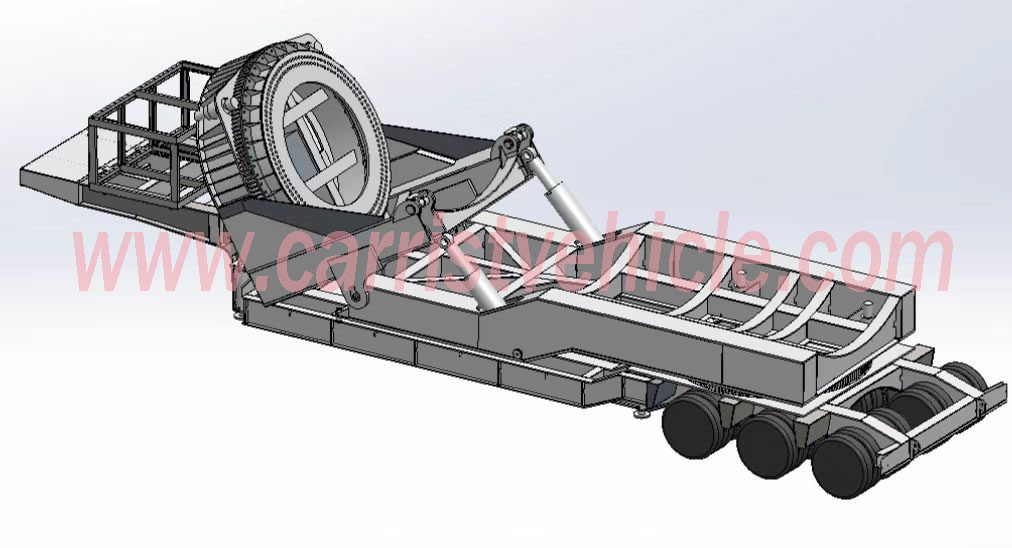

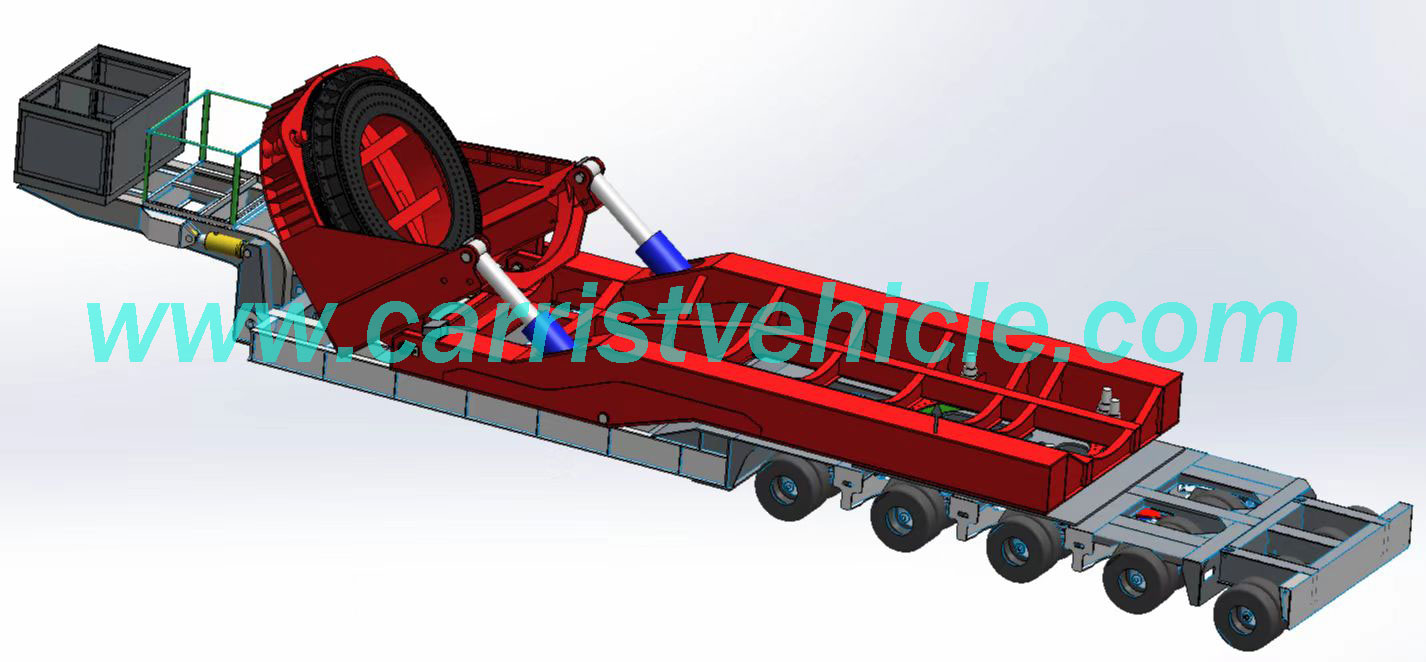

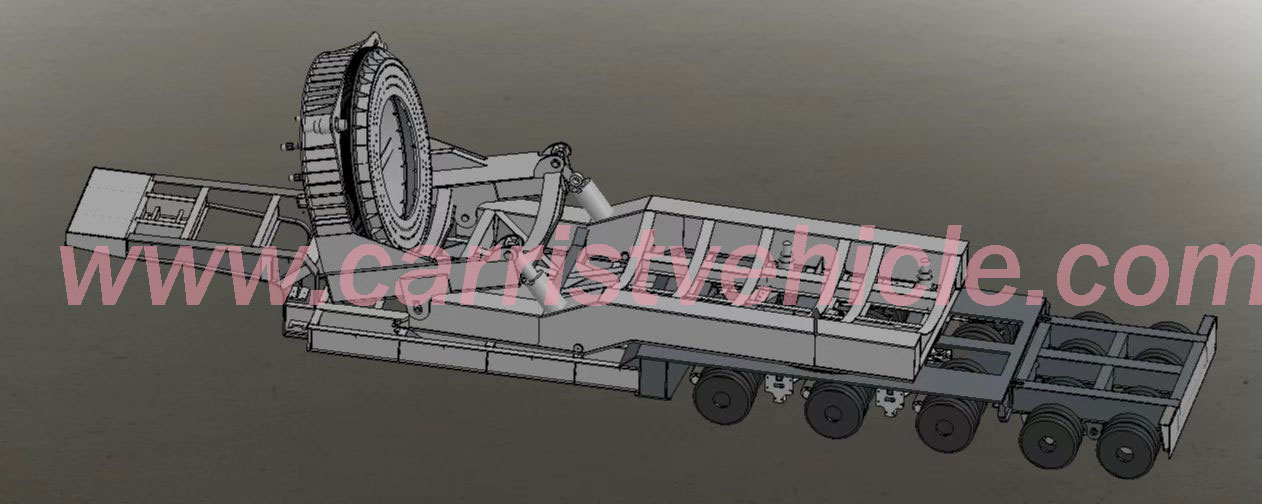

Logo: carrist rotor blade adapter set up on modular trailer
Measurement: 19712mm*3000mm*5000mm
Relevant blade: 56-80m, 121-156 version windmill blades
Axis-line: 10 gadgets
Max rotation perspective: 360°

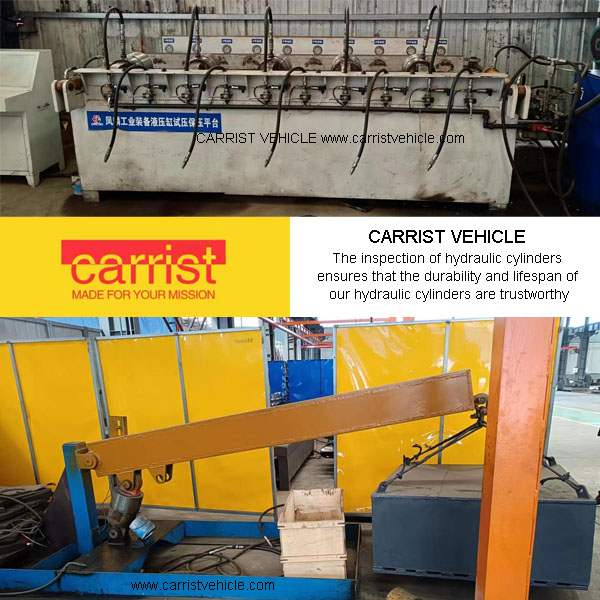

Lifting cylinder: cylinder diameter 280mm raise attitude zero-55
Gooseneck with an lively platform: 1m
Hydraulic station: 31kw four-cylinder diesel engine
Landing equipment: front and rear hydraulic support cylinder
King pin: 2.00 or 3.five inch bolt-in king pin
Points to note in operation:
1. the speed of the hydraulic strength unit have to no longer be too excessive while beginning to prevent damage to the transmission gadget due to immoderate instantaneous torque.
2. operate the hydraulic valve deal with slowly and regularly when turning and lifting, and do not push the take care of to the quit to feature oil. the turret ought to no longer rotate continuously to reduce the vibration of the blades.
Three. whilst turning and lifting, the rate have to be gradual, and the operation should be even. pay attention to statement to make certain protection.
Four. attempt to keep away from turning on seriously inclined roads to prevent injuries.
5. the vehicle have to be at a low pace and consistent pace, lessen common braking, to reduce the vibration of the blades.
6. keep away from using while the wind is extra than 8m/s.
7. the flat installation of the blade is useful to lessen the wind resistance and decrease the height.
8. when the blade needs to show round, the height of the semi-trailer ought to be reduced, and the rear cease of the telescopic support cylinder must be used for auxiliary guide.
