5X10 Wind Turbine Blade Adapter With Modular Trailer
In the wind power industry, CARRIST vehicle mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. CARRIST vehicle provide all types transportation solutions for the wide power industry use.

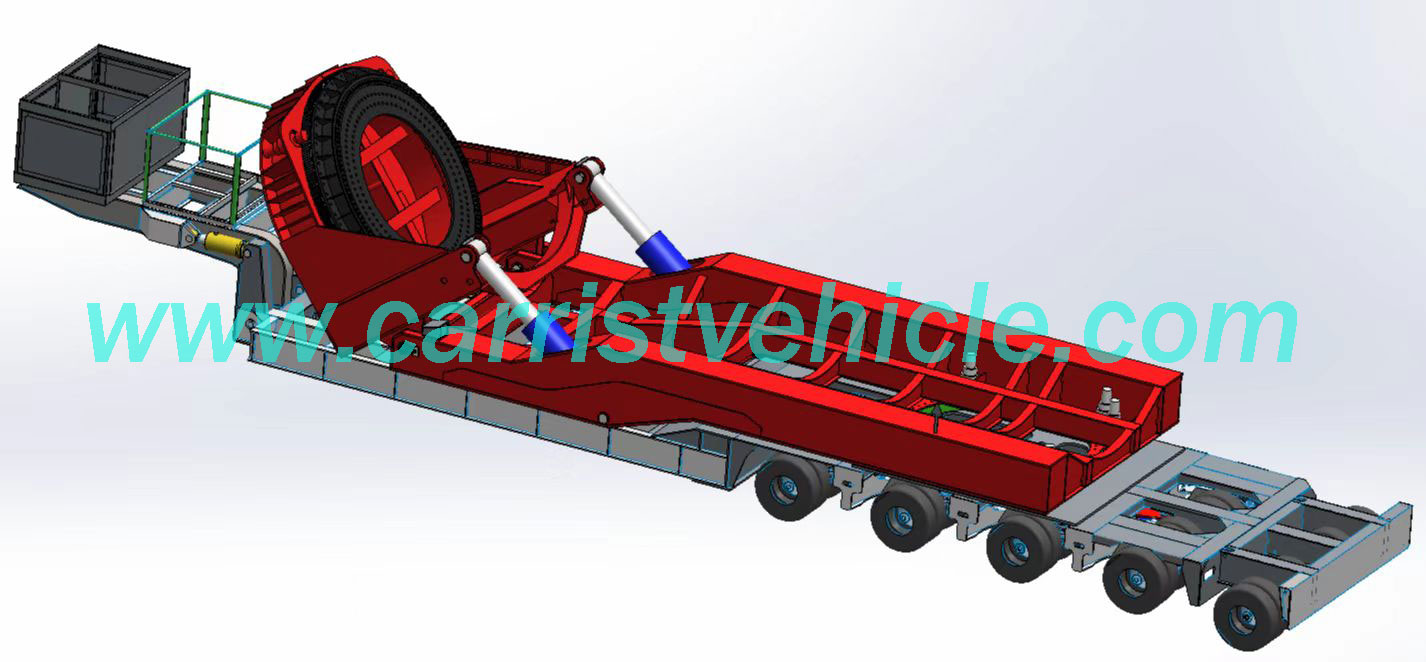

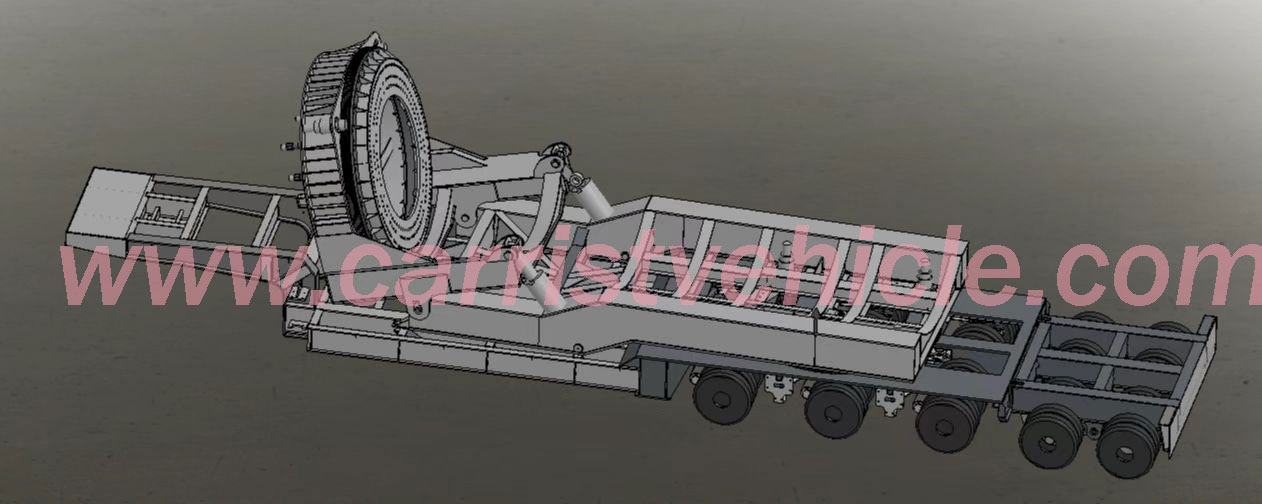

Comparing with extendable wind blade trailer ,The rotor wind blade adapter can raise, swing, and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.
Specification:
Brand: Carrist Rotor Blade Adapter Mounted on Modular Trailer
Dimension: 19712mm*3000mm*5000mm
Applicable blade: 56-80m, 121-156 model windmill blades
Axis-line: 10 units
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Gooseneck with an active platform: 1m
Hydraulic station: 31KW four-cylinder diesel engine
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
Points to note in operation:
1. The speed of the hydraulic power unit should not be too high when starting to prevent damage to the transmission system due to excessive instantaneous torque.
2. Operate the hydraulic valve handle slowly and steadily when turning and lifting, and do not push the handle to the end to add oil. The turret must not rotate continuously to reduce the vibration of the blades.
3. When turning and lifting, the speed should be slow, and the operation should be even. Pay attention to observation to ensure safety.
4. Try to avoid turning on severely inclined roads to prevent accidents.
5. The vehicle should be at a low speed and constant speed, reduce frequent braking, to reduce the vibration of the blades.
6. Avoid using when the wind is more than 8m/s.
7. The flat installation of the blade is beneficial to reduce the wind resistance and reduce the height.
8. When the blade needs to turn around, the height of the semi-trailer should be lowered, and the rear end of the telescopic support cylinder should be used for auxiliary support.
