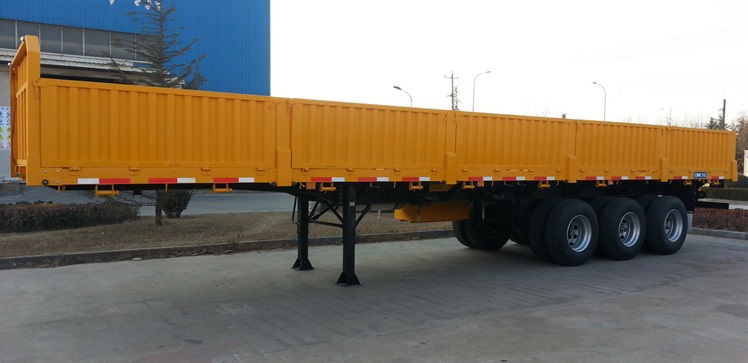

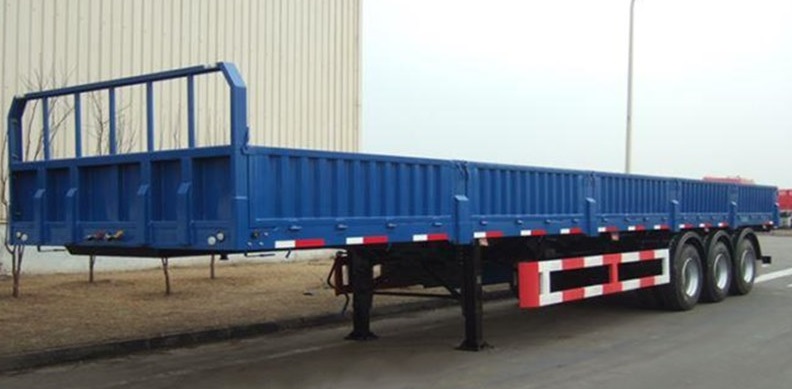

Sidewall Flatbed Semi Trailer
According to client's speical requests for trailer,we can design full set drawings for clients.
The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
Brake system and Electric system are well-known brand in the world.

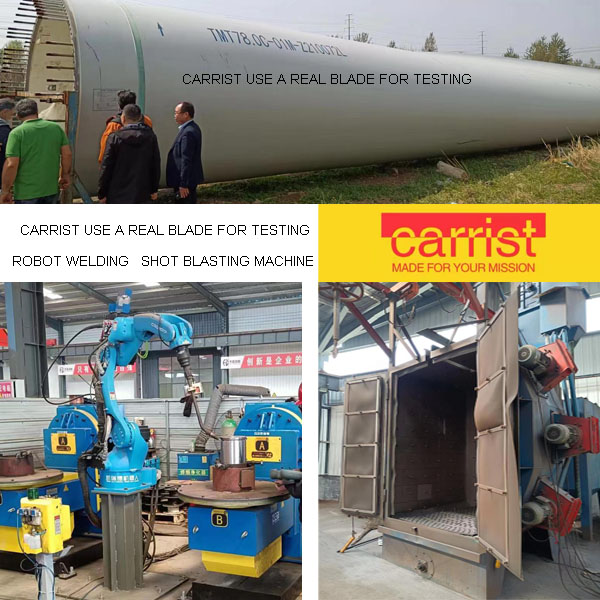

Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
Product Details
| Manufacture | Carrist Vehicle |
| Model | CVT |
| Axle NO | 3 pcs |
| Wheel Base | 7380+1320+1320 (mm) |
| Outside Dimension | 12450X2500X1580 L×W×H (mm) |
| Tyre specifications | 12.00R20 14PR Radio Tire |
| Tyre No | 12 |
| leaf-spring Pcs | 12 pcs |
| Axle load | 13 T |
| Suspension | Mechanic Heavy Duty Leaf Spring Suspension |
| Material & Thickness | main beams Q345B/ST52-3 / through cross beams Q235 / Main beam Height: 500 mm / Upper flange : 14mm / Mid web : 8 mm / Lower flange: 16mm Side Beam: 160 mm |
| Brake System | Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Payload | 50Tons |
| Head Wall | 1200mm |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 1 set |
| Color and Logo | Depends on the buyer’s requirement. |
| The traction pin | 3.5’ or 2’ |
| Pin Height | According to the height of the tractor saddle. |
| Tare Weight | 6.9 Tons |
| Floor | 4mm diamond plate |
