Semi Low Loader
Rotor blades are touchy and extremely lengthy, with a trend toward ever large installations. rotor blade lengths of as much as eighty meters are not uncommon anymore. they can be transported in diverse methods with automobiles with the aid of carrist.
Rotor blades for wind energy flora often gift haulage businesses with a difficult task. in particular while coping with the “final mile”, the transport is frequently extra hard especially whilst tight corners or limitations should be negotiated. it is for precisely those conditions that the brand new adapter era from carrist provides the right method to keep away from boundaries along with trees or buildings with the rotor blades even more efficiently. additionally on steep hills or slim winding mountainous roads, the location of the rotor blade can be adapted to the direction with none time loss. at the identical time, a wind sensor warns against exceeding a parameterizable wind speed. the new rotor blade adapter may be mounted and transported on both on a pulled platform trailer mixture as well as self propelled modules, and guarantees bendy transportation of rotor blades from exceptional producers via the short release plate and for that reason most efficiency and value-effectiveness in every day use.
CARRIST HYDRAULIC MULTI AXLE MODULAR TRAILER SPECIFICATIONS
Number of Axle-line(n) | 2 | 3 | 4 | 5 | 6 |
Speed(km/h) | 580 | 580 | 580 | 580 | 580 |
Total Weight(t) | 6832.8 | 10249.2 | 13665.6 | 17082 | 20498.4 |
Rated Payload(t) | 61 25.8 | 91.5 38.7 | 122.8 52.4 | 152.5 64.5 | 18377.4 |
Dead Weight(t) | 7 | 10.5 | 13.2 | 17.5 | 21 |
Load Per Axle Line(t) | 34 16.4 | 34 16.4 | 34 16.4 | 34 16.4 | 34 16.4 |
Total Length(mm) | 3000 | 4500 | 6000 | 7500 | 9000 |
Total Width(mm) | 3000 | ||||
Height(mm) | 1175 ±300 | ||||
Axles Distance(mm) | 1500 | ||||
Wheels Distance(mm) | 1800 | ||||
Tyre Specification | 215/75R17.5 | ||||
Rim Specification | 6.00-17.5 | ||||
Number of Tyre | 16 | 24 | 32 | 40 | 48 |
Max.Turning Angle of Wheel | 55° | ||||
Min.Turning Radius(mm) | inner 450 | inner 1500 | inner 2600 | inner 1500 | inner 2000 |
outer4070 | outer 5800 | outer 7600 | outer 5800 | outer 6700 |

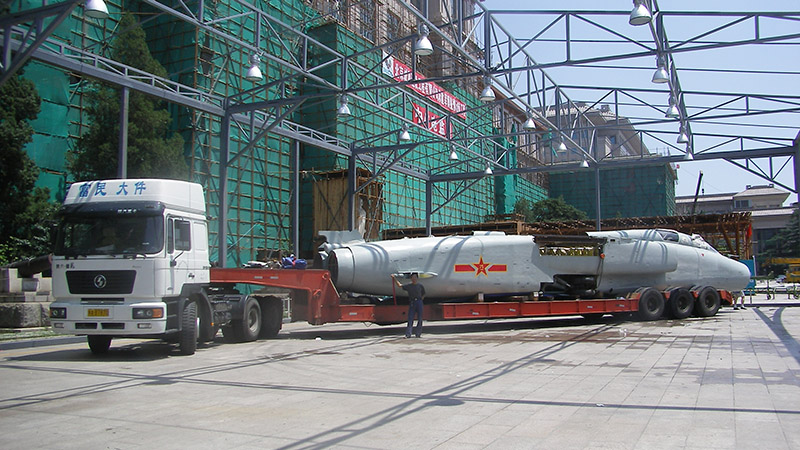

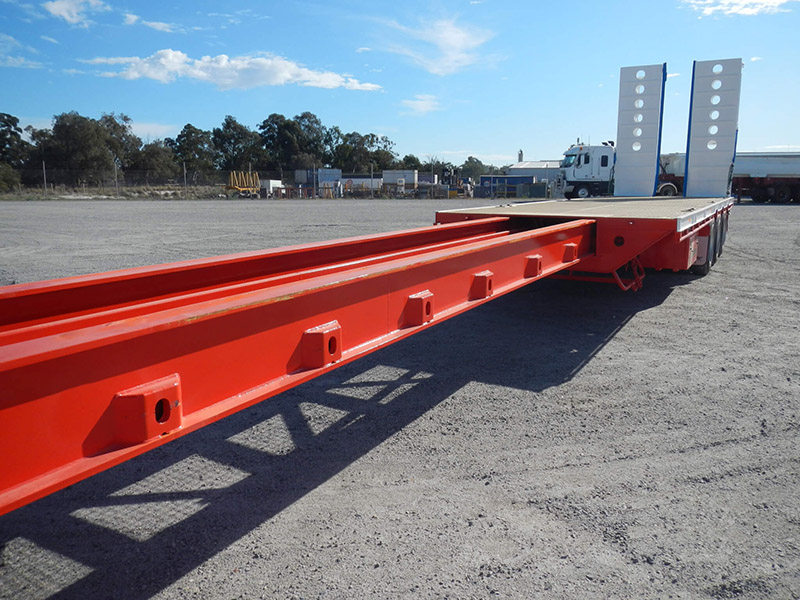

Details of Semi Low Loader

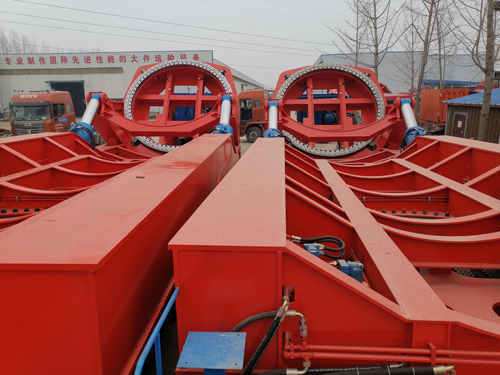

Workshop of Semi Low Loader
