Multi Axle Hydraulic Grider Bridge Trailer
• Carrist Girder Bridge Trailer
• Girder Bridge Trailer is an indispensable category in the field of heavy cargo transportation. It has the characteristics of low transportation height, convenient and safe loading and unloading, of course Goldhofer's faktor 5 series Girder Bridge gives full play to these characteristics, especially its super load weight ratio and modular design make it a leader in the industry, and by today china, Carrist also provide such equipment for heavy duty transport market in china and oversea.
The basic structure of the Girder Bridge Trailer is to bridge the beam frame for the load on the front and rear separated transport modules. The transport objects are "lifted" by the beam, and the load is transmitted to the front and rear multi-axle transport modules through the base of the beam frame, so as to realize load sharing. Since there is no wheel limit below the bearing surface of the beam frame, the height of the overall transport can be controlled very low, or even directly lowered to the ground, which is very favorable for some occasions requiring transport height; The loading and unloading of goods by Girder Bridge Trailer are very convenient and safe, and some types can be realized by their own functions without the assistance of lifting equipment; In addition, the steering structure of the split transport vehicle is also very flexible. Even if the total length of the vehicle is very long, it is not laborious when turning at a large angle.
The development of Girder Bridge Trailer has been quite mature, and the forms have differentiated into many different types, but they can be divided into the following four types.
One is a side girder bridge. The middle part of the side girder bridge sinks close to the ground and is in a "concave" shape as a whole. The transportation is directly carried on the support frame at the bottom. Because the beam frame on the side of the load area is very low, it will be easier to lift the transportation from the side.

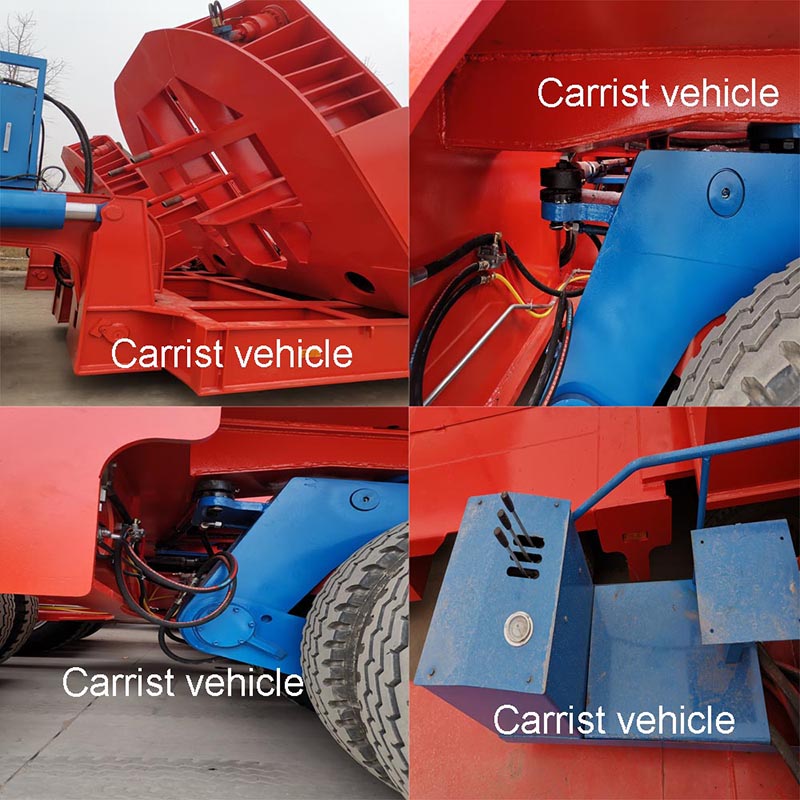

Details of Multi Axle Hydraulic Grider Bridge Trailer

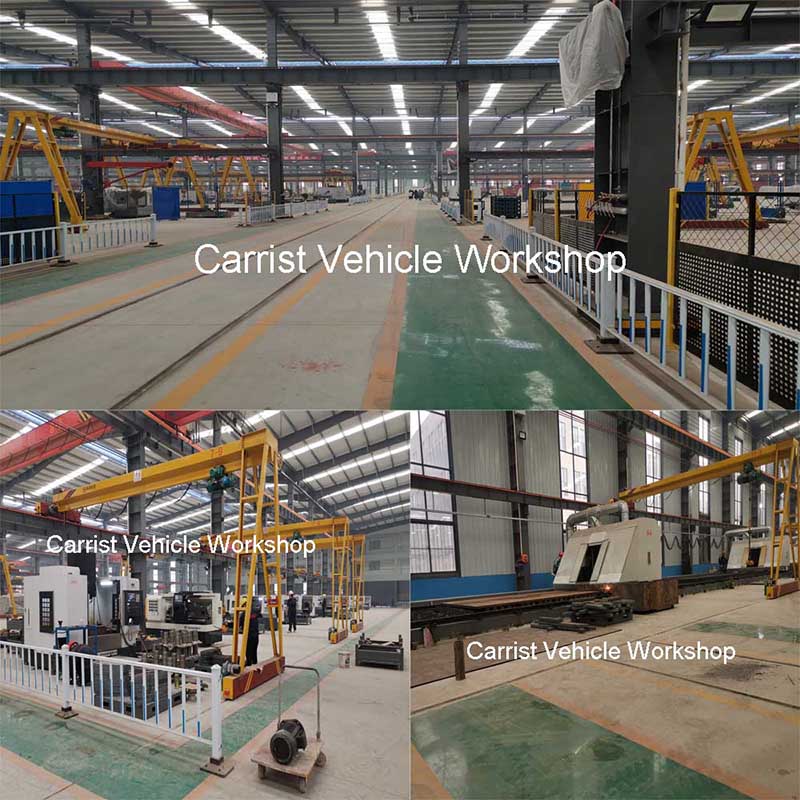

Workshop of Multi Axle Hydraulic Grider Bridge Trailer
