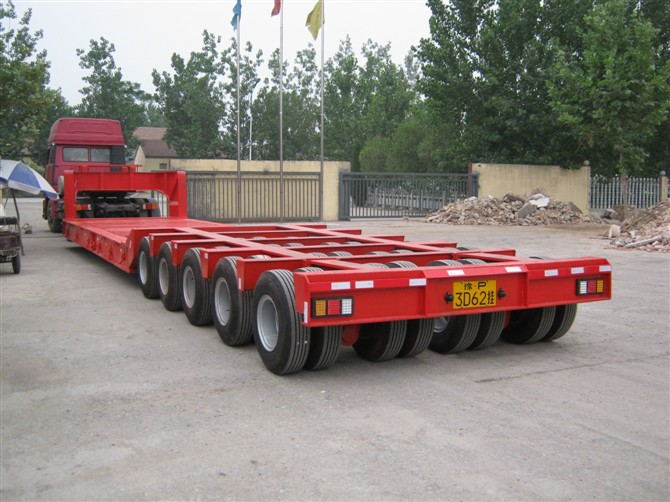

GigaMAX Low Bed Semi Trailer
Carrist Semi Low Loaders are mainly transport with all kind of earth moving machine, such as crane, bull dozer, motor grader, fork lift and other heavy equipment. The lower the center of gravity, the better the stability and safety, the stronger the ability to transport over height cargo.
Carrist Semi Low Loader is also widely used for the transportation of a variety of mechanical equipment, mega objects, highway construction equipment, super tanks, power station equipment and all kinds of steel structures.
Model No | Axles | Tires | Capacity | |
2lines4axles | 4 | 16 | 80tons | |
3lines6axles | 6 | 24 | 120tons | |
4lines8axles | 8 | 32 | 150tons | |
Rated Load | 80Tons-150Tons | |||
Tare Weight | 15T | |||
Wheel Base | 1310 (mm) | |||
Tyre Specifications | 10.00R20 | |||
No. Of the Tyres | 32 | |||
Axle Brand | 25Tonnage X FUWA Brand | |||
No. Of the Axles | 8 Axles | |||
Pieces of leaf-spring | 10 | |||
Suspension | Heavy Duty Leaf Spring | |||
Front/Rear Overhang | 1950 mm | |||
Outside Dimensions | 16500x3000x1500 (mm) (LxWxH) | |||
Material of the Main Beam | Q345B/ST52-3 manganese plates, | |||
automatic submerged arc,Main-beam Height 500mm, | ||||
Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm | ||||
Usage | For heavy duty machine, as transformer, crane, excavator transportation. | |||
Brake System | Dual Lines Braking System With Automatic Air Chambers | |||
Brake Air Chamber | Four double and two single chamber | |||
Electrical System | 24V, 7core socket, lights according to European standards. | |||
Floor | 4mm management plate | |||
Tool Box | 1 box of standard tools | |||
Spare tire carrier | 2 sets | |||
Color and Logo | By the buyer’s requirement. | |||
The traction pin | 2’ & 3.5’ inter-changeable | |||
Pin Height | By height of the tractor saddle. | |||
