Carrist SPMT (self-propelled modular transporter) standardizes and modularizes the structure shape, and continuously splices the axle according to the quality of cargo. Spmts integrate computer and micro-electric technology, hydraulic technology, and wireless communication technology to realize wireless intelligent operation. Because of its compact structure and standardized module assembly, it can be mechanically spliced and flexibly spliced. In theory, SPMT can be spliced to a bearing capacity of 10 million tons.
• Carrist Self Propelled Trailer is mainly used for the transportation of ODC cargo. Its advantages are flexible use, convenient loading and unloading, and high load capacity. Self propelled modular trailer is widely used in petroleum, chemical industry, offshore, construction and other engineering fields. The trailer transportation system mainly includes two components: power pack unit (PPU) and driving modules.
SPECIFICATIONS OF SELF PROPELLED TRAILER CTS-300
Technical performance parameters module unit | 2 axle line drive unit |
length (mm) | 3 100 |
width (mm) | 3 000 |
Low loading height | 780 mm |
The maximum loading height | 1 380 mm |
Normal ride height | 1 080 mm（215/75R17.5） |
Suspension Type / total stroke | Hydraulic suspension / 600 mm |
Hanging regulatory / safety devices | safety valve RBE-R3/8-X-50 HYDAC germany ball valve: BKH-DN13-15L INTEVA spain |
Steering angle | 55° |
Driveshaft / suspension quantity | 3/6 |
Hydraulic motor model | REXROTH A6VE |
Reducer Model | REXROTH GFT |
Max load/axle | 25 T （speed 0 - 5 km/h） |
Speed | 0 – 8 km/h |
Tire size | 215/75 R 17.5 |
330 Pa when traction (kN) | 4*60KN=240KN |
Max 420 Pa when traction (kN) | 4*75KN=300KN |

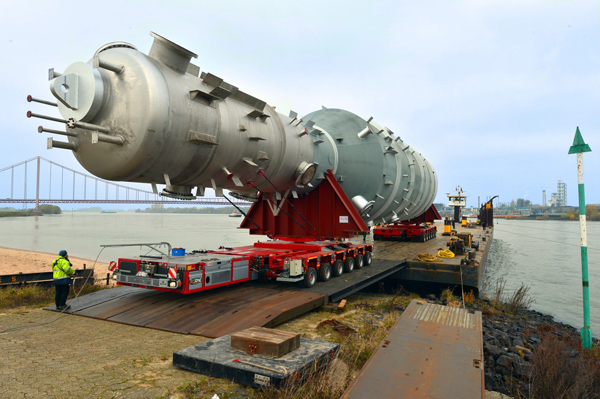

Goldhofer Self Propelled Modular Transporter
