Heavy Trailer with 16 Inch Tires
Carrist have provided many hydraulic axles modular trailers to fifty five nations, we have an awful lot more benefits on fee and best control of heavy carry shipping. as a navy heritage producer, the hydraulic modular trailer / multi axles trailers have sturdy structures and expert layout.
Carrist modular trailer ctm series can provide you the entire variety of such dependable equipment, some fashions from us also can completely integrate with including goldhofer thp/sl, cometto ms. each model has its matching accessories together with gooseneck, drawbar, drop deck, spacer, vessel bridge, and turntable to satisfy transportation necessities from the one of a kind duties. ing the limitless capacity for platform length and loading capacity, trailers comoption for specialised shipping of odc cargo.
SPECIFICATIONS OF CARRIST MODULAR TRAILER
Wheelbase (mm) | 1550 |
Quantity of tires | 08 tires / axle |
Tire specification | 215/75R17.5 |
Rim specification | 6.00 – 17.5 (10 holes) |
Approach angle (degree) | 25° |
Departure angle (degree) | 30° |
Width of Platform (mm) | 2990 |
Height of platform (mm) | 1080+ 300 |
-300 | |
Height of draw rack (mm) | |
(platform 1080mm) | 780 |
Steering Mechanism | Full hydraulic trail steering |
Suspension | Hydraulic Suspension |
Support mode of platform | 3 and 4 points. |
Brake system | Dual pipeline control, |
Frame | Flatbed |
Module speed (without load) (km/h) | 80 |
Loading ability (tons/axle line) | 25T 22.5T 15T |
5 Km/h 18Km/h 40Km/h | |
Total suspension stroke (mm) | 600 |
Maximum steering angle of first wheel | 55° |

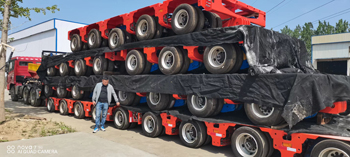

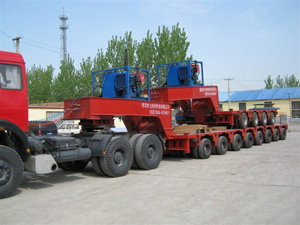

Details of Heavy Trailer with 16 Inch Tires

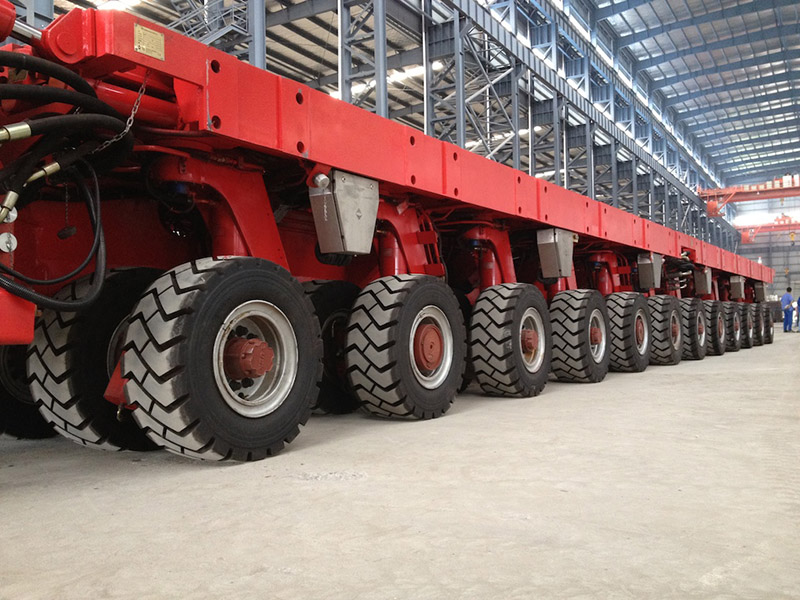

Workshop of Heavy Trailer with 16 Inch Tires
