Best Heavy Duty Trailer Hitch
Carrist ctm series hydraulic multi axle trailers for shipping oversize and over weight freights that split apart series modular hydraulic trailers that may be assembled into weight from 45 tons to 2400 lots of diverse collection.
Carrist Hydraulic Multi Axle trailer is the basic model of the heavy cargo logistics transportation industry, which is the design basis of most heavy cargo transportation vehicles. Well deigned by CARRIST, one of the pro hydraulic multi axles trailer manufacturers in China, our hydraulic trailer for sale adopts hydraulic suspension and integral traction steering, hydraulic control lifting, three-point or four-point support, all-wheel traction or forced steering, and all-wheel braking. Supply multi axle modular trailer can be fully connected with Nicolas MEDE trailer.
CARRIST HYDRAULIC MULTI AXLE MODULAR TRAILER SPECIFICATIONS：
Number of Axle-line(n) | 2 | 3 | 4 | 5 | 6 |
Speed(km/h) | 580 | 580 | 580 | 580 | 580 |
Total Weight(t) | 6832.8 | 10249.2 | 13665.6 | 17082 | 20498.4 |
Rated Payload(t) | 61 25.8 | 91.5 38.7 | 122.8 52.4 | 152.5 64.5 | 18377.4 |
Dead Weight(t) | 7 | 10.5 | 13.2 | 17.5 | 21 |
Load Per Axle Line(t) | 34 16.4 | 34 16.4 | 34 16.4 | 34 16.4 | 34 16.4 |
Total Length(mm) | 3000 | 4500 | 6000 | 7500 | 9000 |
Total Width(mm) | 3000 | ||||
Height(mm) | 1175 ±300 | ||||
Axles Distance(mm) | 1500 | ||||
Wheels Distance(mm) | 1800 | ||||
Tyre Specification | 215/75R17.5 | ||||
Rim Specification | 6.00-17.5 | ||||
Number of Tyre | 16 | 24 | 32 | 40 | 48 |
Max.Turning Angle of Wheel | 55° | ||||
Min.Turning Radius(mm) | inner 450 | inner 1500 | inner 2600 | inner 1500 | inner 2000 |
outer4070 | outer 5800 | outer 7600 | outer 5800 | outer 6700 |

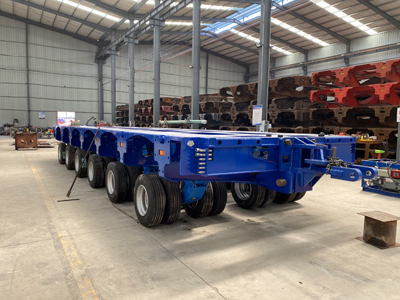

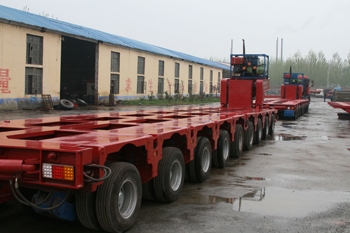

Details of Heavy Duty Trailer on Sale ：

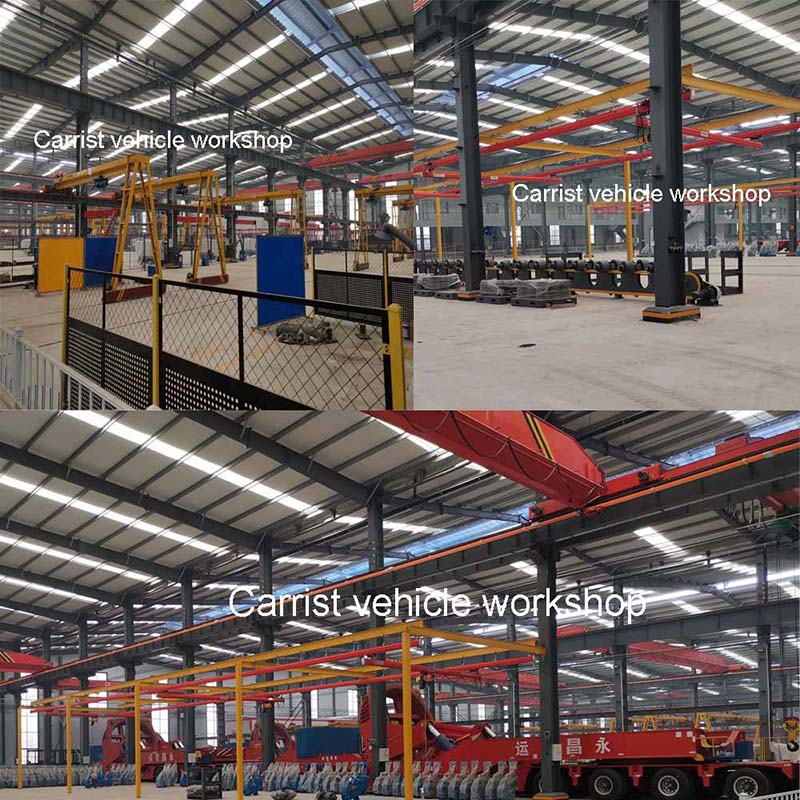

Workshop of Best Heavy Duty Trailer Hitch
