Nicolas Modular Trailer

Carrist Vehicle Manufacture Nicolas model modular trailer, capacity 34 tons/axle line, min height 770 mm, axle compensation 600 mm, width 2,990 mm , axle base 1,550 mm with high tensile structure steel, robust and durable construction with high bending moment, high concentrated load bearing capacity.



Contact Now E-Mail Telephone WhatsApp
Product Details

Item

Technical Parameters of Nicolas MDED model modular trailer

Capacity

34000 kg/axle line @0.5km/h

Material

HG60 high tensile steel

Dead weight

3300 kg/axle line

Width of Platform

2990 mm

Platform height

1080(+290)(-310) mm. Total suspension stroke 600 mm

Wheelbase

1550 mm

Tire specification

215/75 R17.5

Rim specification

6.00 – 17.5 (10 holes)

Approach / Departure angle

20° / 26°

Steering mechanism

Hydraulic – Mechanic all-wheel steering

Brake system

Dual pipeline control. Dual shoe brake and spring brake for all axles.

Maximum steering angle

+ / – 55° in all ride heights



· Versatile modular vehicle to configure trailer in 2, 3 and 4 files

· Up to 34 ton technical axle load

· Suspension stroke of 600 mm

· Steering angle up to 55°

· Simple, accessible steering system

· Lowest platform height on the market with 770 mm in low position

· Wide range of interchangeable platforms and accessories

· The lowest dead weight on the market

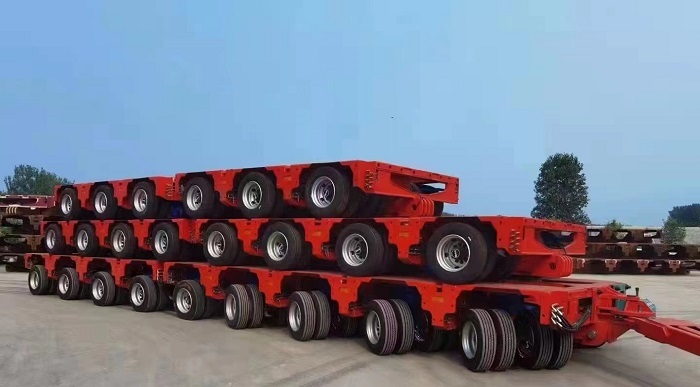

modular trailer

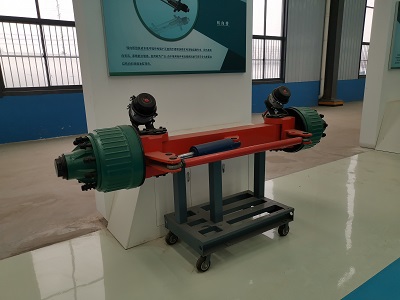

modular trailer

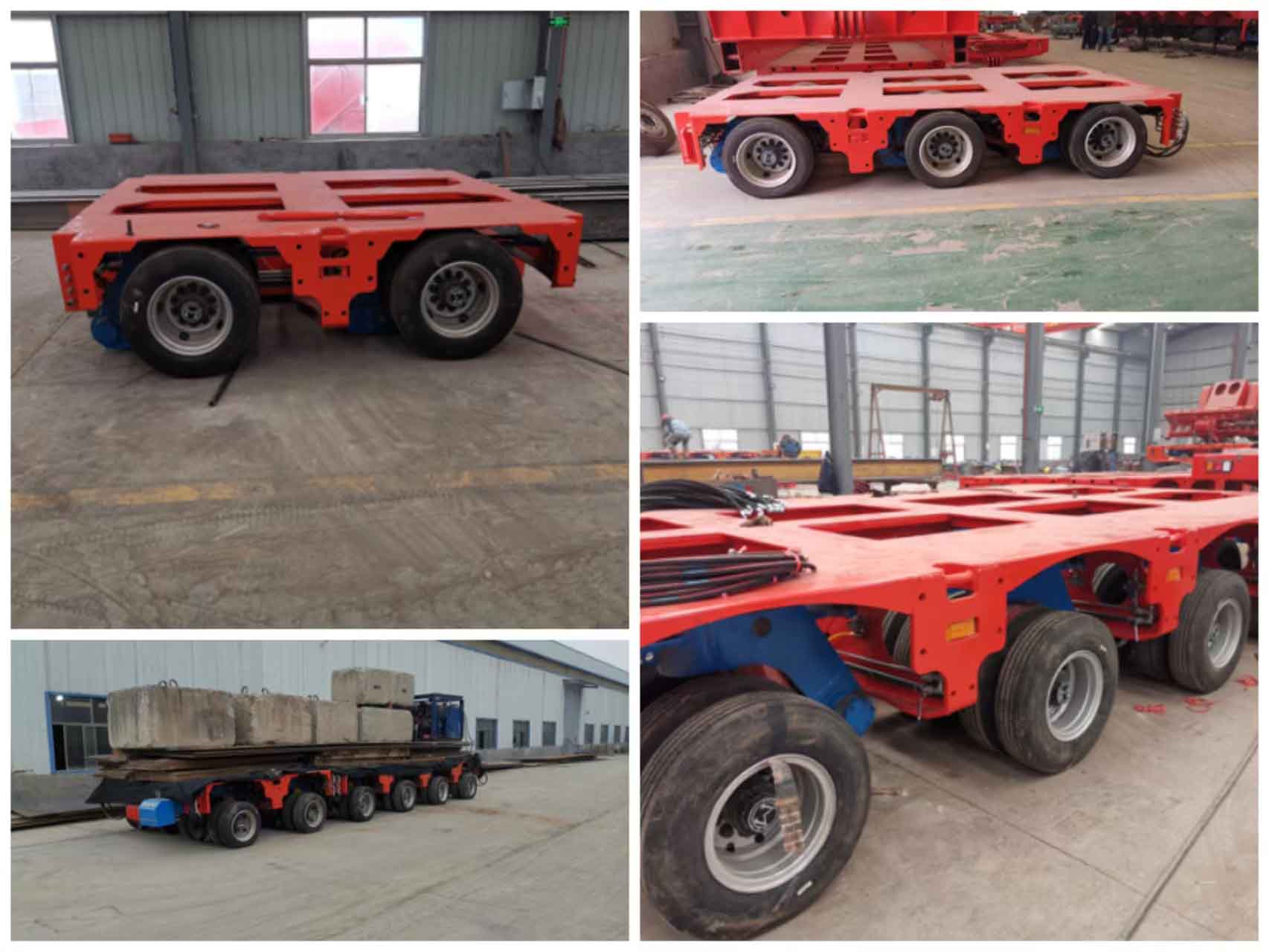

modular trailer

modular trailer
