Modular Trailer
Carrist SPMT (self-propelled modular transporter) standardizes and modularizes the structure shape, and continuously splices the axle according to the quality of cargo. Spmts integrate computer and micro-electric technology, hydraulic technology, and wireless communication technology to realize wireless intelligent operation. Because of its compact structure and standardized module assembly, it can be mechanically spliced and flexibly spliced. In theory, SPMT can be spliced to a bearing capacity of 10 million tons.

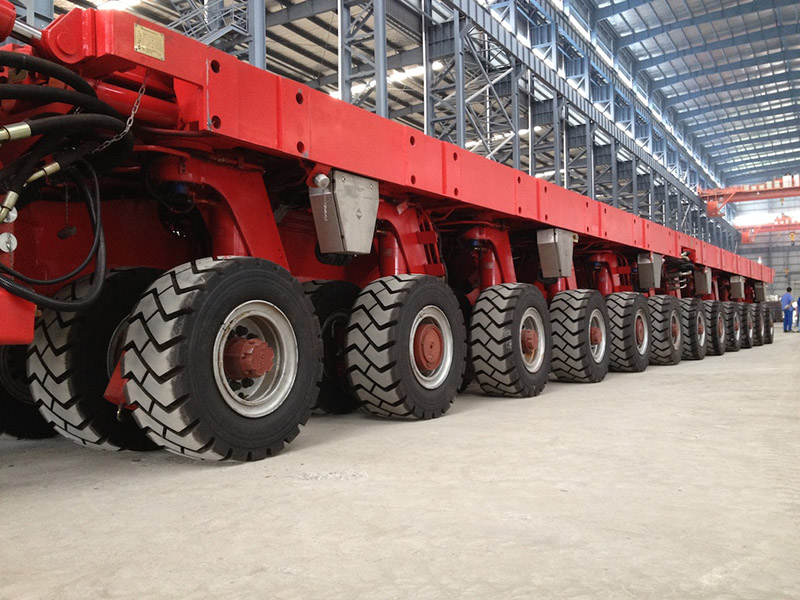

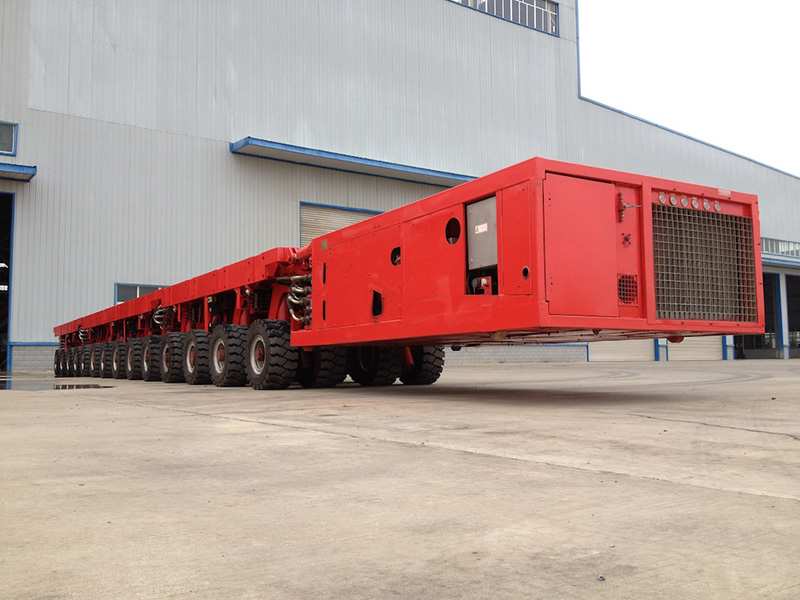

Modular trailer standardizes and modularizes the structure shape, and continuously splices the axle according to the quality of cargo. Spmts integrate computer and micro-electric technology, hydraulic technology, and wireless communication technology to realize wireless intelligent operation. Because of its compact structure and standardized module assembly, it can be mechanically spliced and flexibly spliced. In theory, SPMT can be spliced to a bearing capacity of 10 million tons.
Specifications of Modular Trailer
Speed | 5 km/h | 3 km/h | 1 km/h | 0.5 km/h |
Payload (Net load) | 104,000 kg | 112,000 kg | *)128,000 kg | *)144,000 kg |
Dead weight (approx.) | 16,000 kg | 16,000 kg | 16,000 kg | 16,000 kg |
Max. rated total weight | 120,000 kg | 128,000 kg | 144,000 kg | 160,000 kg |
Rated axle load/line | 30,000 kg | 32,000 kg | *) 36,000 kg | *) 40,000 kg |
Loading platform size, L x W | approx. 5,600mmx2,430mm | |||
Loading platform height (Initial position) | approx. 1,150mm | |||
Loading platform height(Driving position) | approx. 1,500mm | |||
Lift / compensation stroke | approx. 700mm (±350mm) | |||
Wheel carrier No. (Total) | 8 sets | |||
Wheel carrier No. (Drive) | 2 sets | |||
Wheel carrier No. (Brake) | 4 sets | |||
Wheel carrier No. (Running) | 2 sets | |||
Traction force @ 400bar | approx. 2x80 kN=160kN | |||
Brake force | approx. 4x55 kN=220kN | |||
Permitted Max driving speed | approx. 11.5km/h | |||
Tire | 16x355/65-15PR28 | |||
Steering angle | Rack and pinion, approx.+130°/ -100° | |||
Working Temperature | approx.-20°C〜+40°C | |||
Permitted platform bending moment | approx.+7700kNm/-6300kNm | |||
Package and Deliverage of Modular Trailer
Application of Modular Trailer

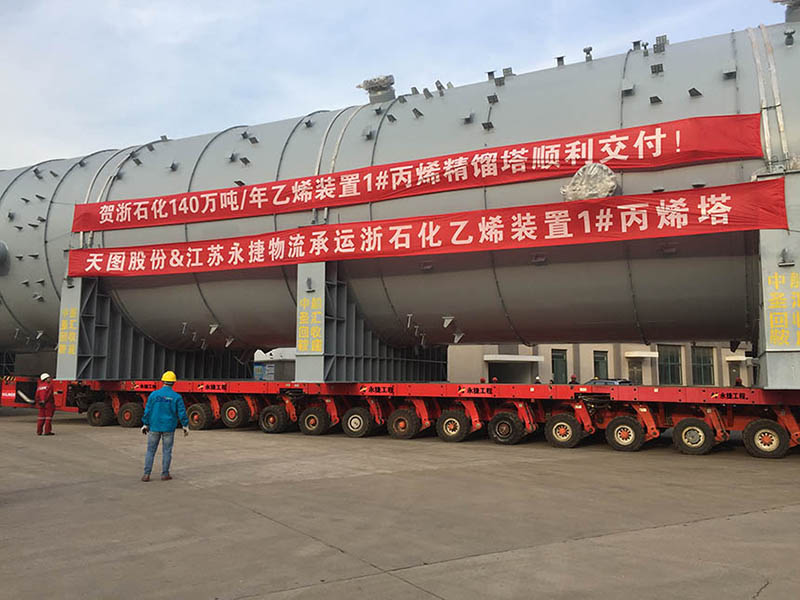

Carrist Self Propelled Modular Transporters,(Hereinafter referred to as SPMT, through Individual or combination modes, provide the reliable transport solution for oversize, non-detachable, overlength or overweight superstructure cargoes, such as offshore oil platform, module chemical plant, shipbuilding, nuclear and the transportation of chemical tanks. It is widely used in the fields of Oil&Gas, Electricity, Metallurgy, Chemical industry, Construction, Shipbuilding, Marine engineering, etc.
The self-propelled modular transporter adopts a narrow body modular design, and the width of a single module is 2430mm; The single axle load can reach 40 tons, especially suitable for concentrated load transportation; SPMT module transport has the function of multi vehicle merging, which can realize the soft and hard connection of 1000 axle modules at most, and the maximum load capacity can reach nearly 30000 tons; It has a variety of steering modes such as straight, zigzag, oblique, central rotation, horizontal, front swing, rear swing and so on.

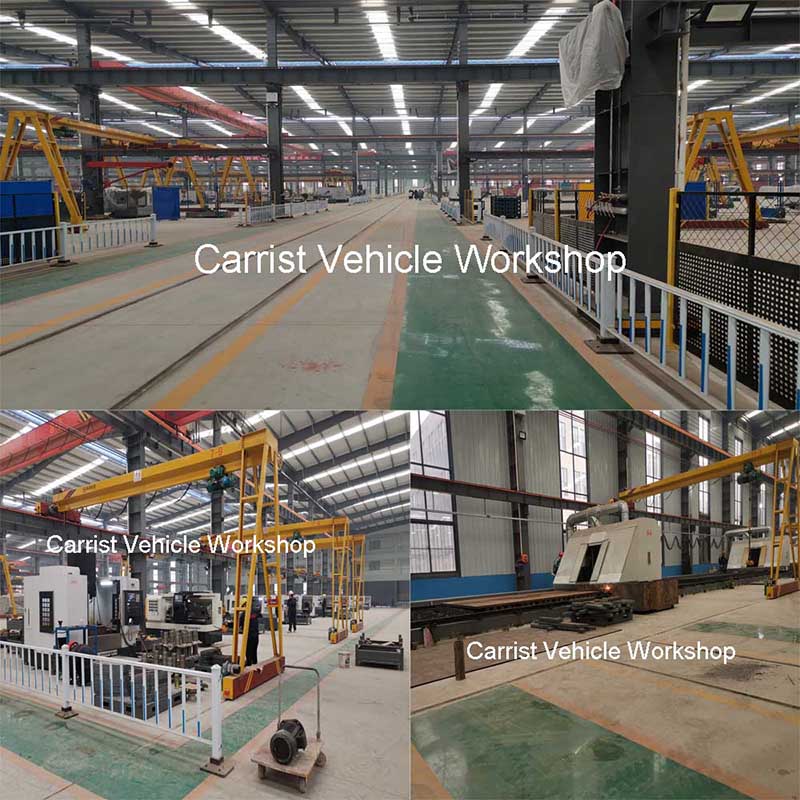

Workshop of Modular Trailer
