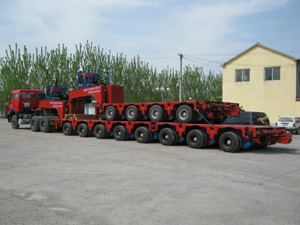

A Heavy Duty Trailer Hitch
Carrist have provided many hydraulic axles modular trailers to 60 nations, we have an awful lot greater benefits on price and first-class control of heavy lift shipping. as a army history producer, the hydraulic modular trailer / multi axles trailers have strong constructions and expert design.

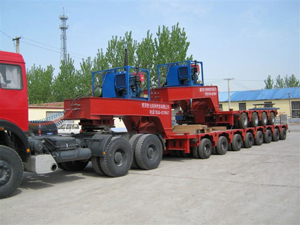

Carrist modular trailer ctm series can provide you the whole variety of such reliable equipment, a few models from us can also completely integrate with which includes goldhofer thp/sl, cometto ms. each model has its matching accessories inclusive of gooseneck, drawbar, drop deck, spacer, vessel bridge, and turntable to meet transportation requirements from the unique obligations. ing the unlimited capacity for platform length and loading capacity, trailers comoption for specialized shipping of odc shipment.
SPECIFICATIONS OF CARRIST MODULAR TRAILER：
Wheelbase (mm) | 1550 |
Quantity of tires | 08 tires / axle |
Tire specification | 215/75R17.5 |
Rim specification | 6.00 – 17.5 (10 holes) |
Approach angle (degree) | 25° |
Departure angle (degree) | 30° |
Width of Platform (mm) | 2990 |
Height of platform (mm) | 1080+ 300 |
-300 | |
Height of draw rack (mm) | |
(platform 1080mm) | 780 |
Steering Mechanism | Full hydraulic trail steering |
Suspension | Hydraulic Suspension |
Support mode of platform | 3 and 4 points. |
Brake system | Dual pipeline control, |
Frame | Flatbed |
Module speed (without load) (km/h) | 80 |
Loading ability (tons/axle line) | 25T 22.5T 15T |
5 Km/h 18Km/h 40Km/h | |
Total suspension stroke (mm) | 600 |
Maximum steering angle of first wheel | 55° |
Details of Heavy Duty Trailer on Sale：

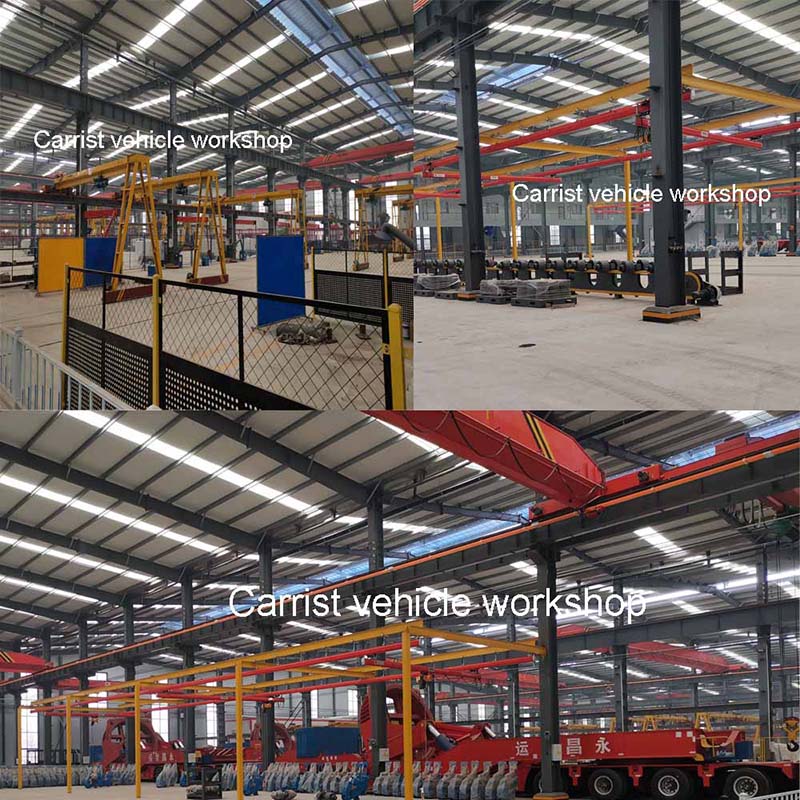

Workshop of A Heavy Duty Trailer Hitch
