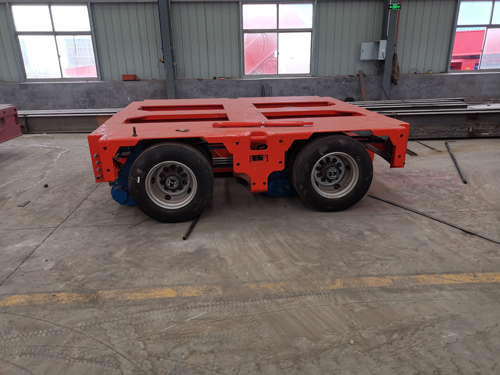

2line 4Axle Modular Trailer

carrist hydraulic multi axle trailer is the fundamental model of the heavy shipment logistics transportation enterprise, that's the layout foundation of maximum heavy cargo transportation motors. well deigned through carrist, one of the pro hydraulic multi axles trailer producers in china, our hydraulic trailer for sale adopts hydraulic suspension and vital traction guidance, hydraulic manipulate lifting, 3-point or four-factor support, all-wheel traction or forced steerage, and all-wheel braking. deliver multi axle modular trailer may be fully linked with nicolas mede trailer.

Carrist ctm collection hydraulic multi axle trailers for transport oversize and over weight freights that split apart collection modular hydraulic trailers that can be assembled into weight from 45 lots to 2200 lots of numerous collection.

Contact Now E-Mail Telephone WhatsApp

Product Details

CARRIST has developed a multi-mode steering hydraulic system for a multi-axle semi-trailer. The multi-axle semi-trailer includes a tractor and a semi-trailer, which are linked by a gooseneck slewing mechanism. The gooseneck slewing mechanism includes a locking cylinder and a bolt for locking the tractor and the semi-trailer. The semi-trailer is equipped with a wheel steering mechanism, which includes a centering cylinder and a steering cylinder; The multi-mode steering hydraulic system includes hydraulic source, pin valve group, steering valve group, pin accumulator, centering accumulator and pipeline. The hydraulic source is arranged on the tractor. The pin valve group, steering valve group and accumulator are arranged on the semi-trailer. This application uses a single hydraulic pump source to realize the multi-mode steering hydraulic system of the complex multi-axle semi-trailer. The switching of the steering mode is fast, reliable and safe, Semi-trailer auxiliary steering mode, semi-trailer centering mode and semi-trailer "monobloc" mode that can adapt to various working conditions

Description of 2line 4Axle Modular Trailer：

2line 4Axle Modular Trailer
