Heavy Duty Trailer on Sale
Carrist ctm series hydraulic multi axle trailers for transport oversize and over weight freights that cut up apart series modular hydraulic trailers that can be assembled into weight from 25 lots to 2200 lots of numerous series.
CARRIST have furnished many hydraulic axles modular trailers to 55countries, we've an awful lot greater blessings on cost and fine control of heavy carry transport. as a army background manufacturer, the hydraulic modular trailer / multi axles trailers have strong buildings and professional design.
SPECIFICATIONS OF CARRIST MODULAR TRAILER
Wheelbase (mm) | 1550 |
Quantity of tires | 08 tires / axle |
Tire specification | 215/75R17.5 |
Rim specification | 6.00 – 17.5 (10 holes) |
Approach angle (degree) | 25° |
Departure angle (degree) | 30° |
Width of Platform (mm) | 2990 |
Height of platform (mm) | 1080+ 300 |
-300 | |
Height of draw rack (mm) | |
(platform 1080mm) | 780 |
Steering Mechanism | Full hydraulic trail steering |
Suspension | Hydraulic Suspension |
Support mode of platform | 3 and 4 points. |
Brake system | Dual pipeline control, |
Frame | Flatbed |
Module speed (without load) (km/h) | 80 |
Loading ability (tons/axle line) | 25T 22.5T 15T |
5 Km/h 18Km/h 40Km/h | |
Total suspension stroke (mm) | 600 |
Maximum steering angle of first wheel | 55° |
FAQS OF CARRIST’S MODULAR TRAILERS
Q What is the difference between a modular trailer and a self propelled trailer?
A Based on the structure of the modular trailer, SPMT is equipped with a power system, and each suspension is changed to an independent suspension. Standardize and modularize the structure shape, and continuously splice the module according to the quality of goods. It integrates computer and micro electric technology, hydraulic technology and wireless communication technology to realize wireless intelligent operation.
Q Can modular trailers be customized?
A Yse, for sure. Modular trailers can be customized.it can be designed to transport of different cargo with its special size. ..., also can meet with client needs to make with different size of module, to achieve for best solution for transport need.
Q What is a modular trailer?
A Modular trailer have 8 tires on each line, every module can be make as 2, 3, 4, 5 and 6 as one unit, which can be spliced longitudinally or horizontally; all axles can steering.

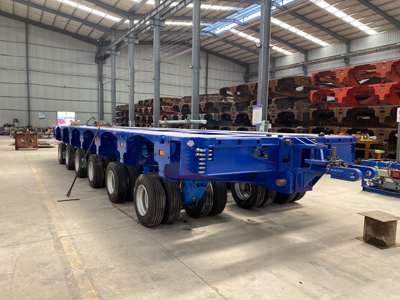

Details of Heavy Duty Trailer on Sale

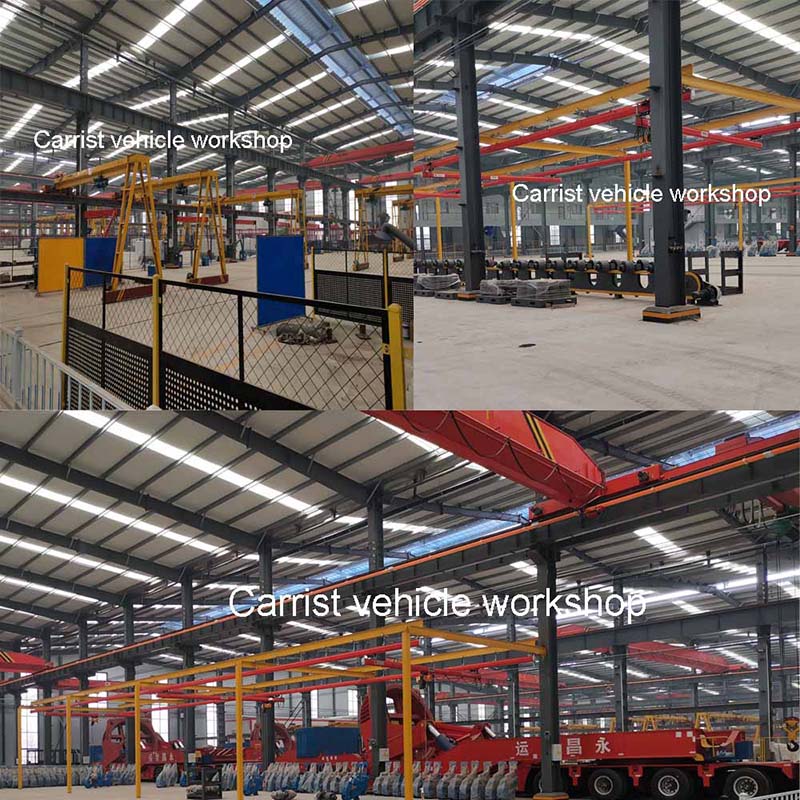

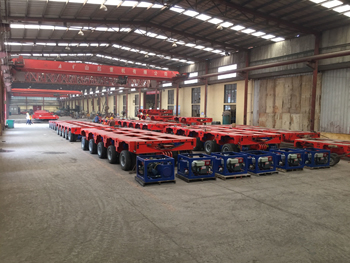

Workshop of Heavy Duty Trailer on Sale
