Heavy Duty 10 X 6 Trailer
Carrist Hydraulic Multi Axle trailer is the basic model of the heavy cargo logistics transportation industry, which is the design basis of most heavy cargo transportation semi trailer. Well deigned by CARRIST, one of the professional hydraulic multi axles trailer manufacturers in China, our hydraulic trailer for sale adopts hydraulic suspension and integral traction steering, hydraulic control lifting, three-point or four-point support, all-wheel traction or forced steering, and all-wheel braking. Supply multi axle modular trailer can be fully connected with Nicolas MEDE trailer.
Carrist CTM series hydraulic multi axle trailers for transport oversize and over weight freights that split apart series modular hydraulic trailers that can be assembled into weight from 45 tons to 2200 tons of various series.
CARRIST HYDRAULIC MULTI AXLE MODULAR TRAILER SPECIFICATIONS
Number of Axle-line(n) | 2 | 3 | 4 | 5 | 6 |
Speed(km/h) | 580 | 580 | 580 | 580 | 580 |
Total Weight(t) | 6832.8 | 10249.2 | 13665.6 | 17082 | 20498.4 |
Rated Payload(t) | 61 25.8 | 91.5 38.7 | 122.8 52.4 | 152.5 64.5 | 18377.4 |
Dead Weight(t) | 7 | 10.5 | 13.2 | 17.5 | 21 |
Load Per Axle Line(t) | 34 16.4 | 34 16.4 | 34 16.4 | 34 16.4 | 34 16.4 |
Total Length(mm) | 3000 | 4500 | 6000 | 7500 | 9000 |
Total Width(mm) | 3000 | ||||
Height(mm) | 1175 ±300 | ||||
Axles Distance(mm) | 1500 | ||||
Wheels Distance(mm) | 1800 | ||||
Tyre Specification | 215/75R17.5 | ||||
Rim Specification | 6.00-17.5 | ||||
Number of Tyre | 16 | 24 | 32 | 40 | 48 |
Max.Turning Angle of Wheel | 55° | ||||
Min.Turning Radius(mm) | inner 450 | inner 1500 | inner 2600 | inner 1500 | inner 2000 |
outer4070 | outer 5800 | outer 7600 | outer 5800 | outer 6700 |

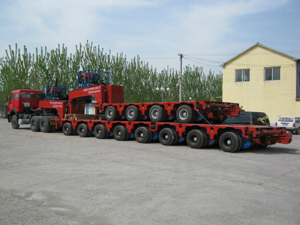

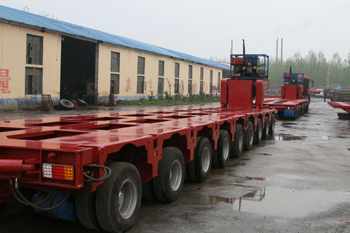

Details of Heavy Duty Trailer on Sale:

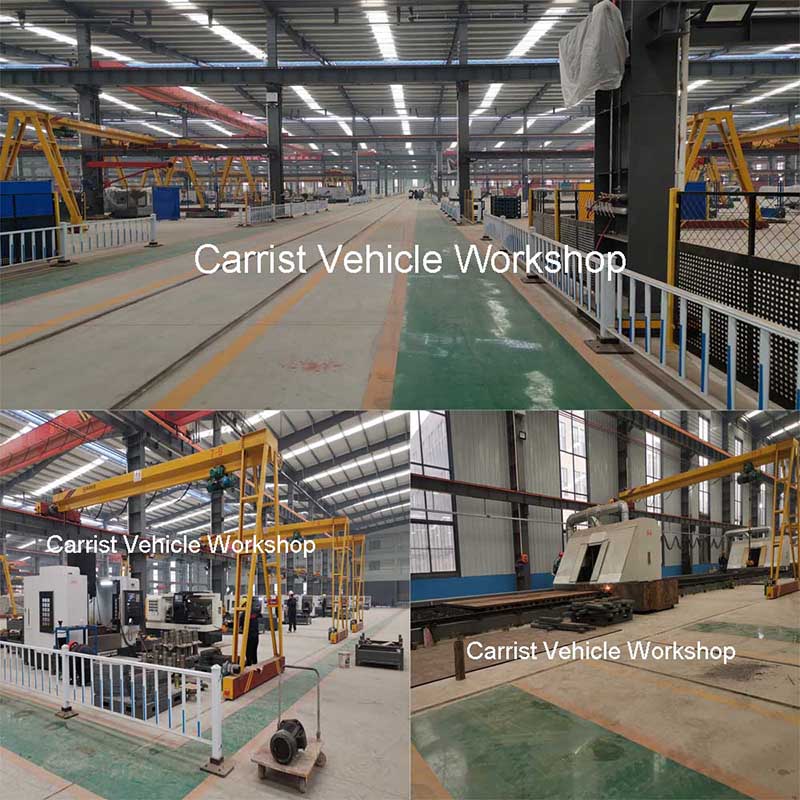

Workshop of Heavy Duty 10 X 6 Trailer
