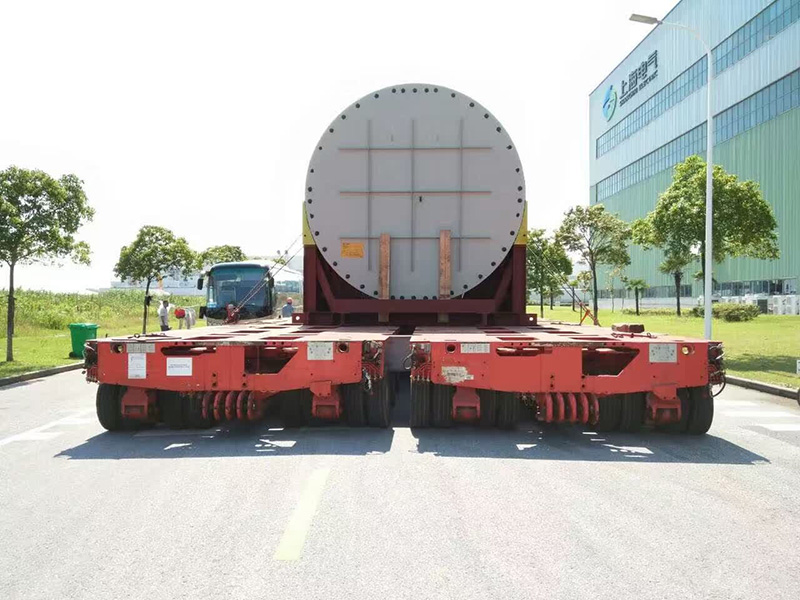

3 Axle Hydraulic Trailer
The loading capacity of 3 Axle Hydraulic Trailer is 20 tons.
To offer high first-rate and consistent merchandise and increase the productiveness, we've added a variety of advanced production machines, which includes one-piece axle manufacturing line, cnc machining middle, and so forth. similarly, our senior technical crew can provide custom axle for trailer consistent with your necessities for numerous parameters.
To offer high first-rate and consistent merchandise and increase the productiveness, we've added a variety of advanced production machines, which includes one-piece axle manufacturing line, cnc machining middle, and so forth. similarly, our senior technical crew can provide custom axle for trailer consistent with your necessities for numerous parameters.
Specifications of 3 Axle Hydraulic Trailer
Number of Axle-line(n) | 2 | 3 | 4 | 5 | 6 | |||||
Speed(kmlh | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 |
Total weight(t) | 68 | 32.8 | 102 | 49.2 | 136 | 65.6 | 170 | 82 | 204 | 98.4 |
Rated Payload(t) | 61 | 25.8 | 91.5 | 38.7 | 122.8 | 52.4 | 152.5 | 64.5 | 183 | 77.4 |
Dead Weight(t) | 7 | 10.5 | 13.2 | 17.5 | 21 | |||||
Load Per Axle Line(t) | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 |
Total Length(mm) | 3000 | 4500 | 6000 | 7500 | 9000 | |||||
Total Width(mm) | 3000 | |||||||||
Height(mm) | 1175±300 | |||||||||
Axle Distance(mm) | 1500 | |||||||||
Wheels Distance(mm) | 1800 | |||||||||
Tyre Specification | 215/75R17.5 | |||||||||
Rim Specification | 6.00-17.5 | |||||||||
Number of Tyre | 16 | 24 | 32 | 40 | 48 | |||||
Max.Turning Angle of Wheel | 55° | |||||||||
Min.Turning Radius(mm) | inner 450 | inner 1500 | inner 2600 | inner 1500 | inner 2000 | |||||
outer 4070 | outer 5800 | outer 7600 | outer 5800 | outer 6700 | ||||||
Faq of 3 Axle Hydraulic Trailer
Q What is the difference between a modular trailer and a self propelled trailer?
A Primarily primarily based generally on the structure of the modular trailer, spmt is organized with a electricity gadget, and each suspension is modified to an impartial suspension. standardize and modularize the structure shape, and continuously splice the module in maintaining with the incredible of products. it integrates laptop computer and micro electric powered powered era, hydraulic era and wi-fi verbal trade technological know-how to apprehend wi-fi wise operation.
Q Can modular trailers be customized?
A Yse, for sure. modular trailers might also be customized.it can be designed to go of unique cargo with its distinct size. ..., additionally can meet with patron wishes to make with exceptional dimension of module, to attain for awesome answer for transport need.
Parts of 3 Axle Hydraulic Trailer

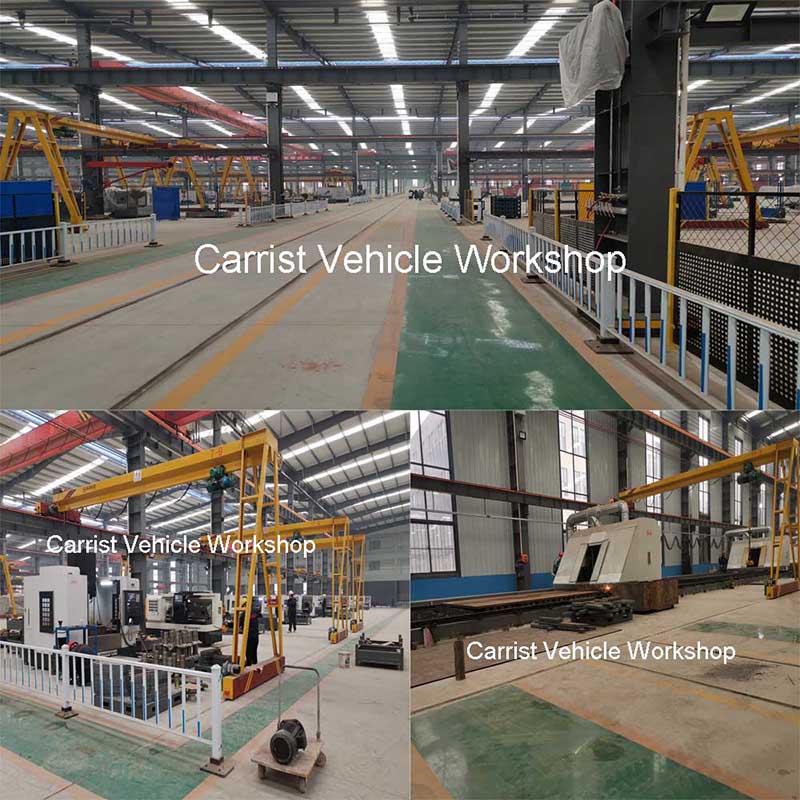

Workshop of 3 Axle Hydraulic Trailer
