Industrial Ceiling Fans 24Ft
Carrist's HVLS Industrial Fans - an innovative solution for your industrial cooling needs. Carrist is a leading manufacturer and supplier of HVLS Industrial Fans, designed for efficient and effective air movement that can cool down large spaces. We believe that our fans can be an excellent solution for your business if you are looking for an affordable, scalable, and energy-efficient way to keep your industrial facility cool.

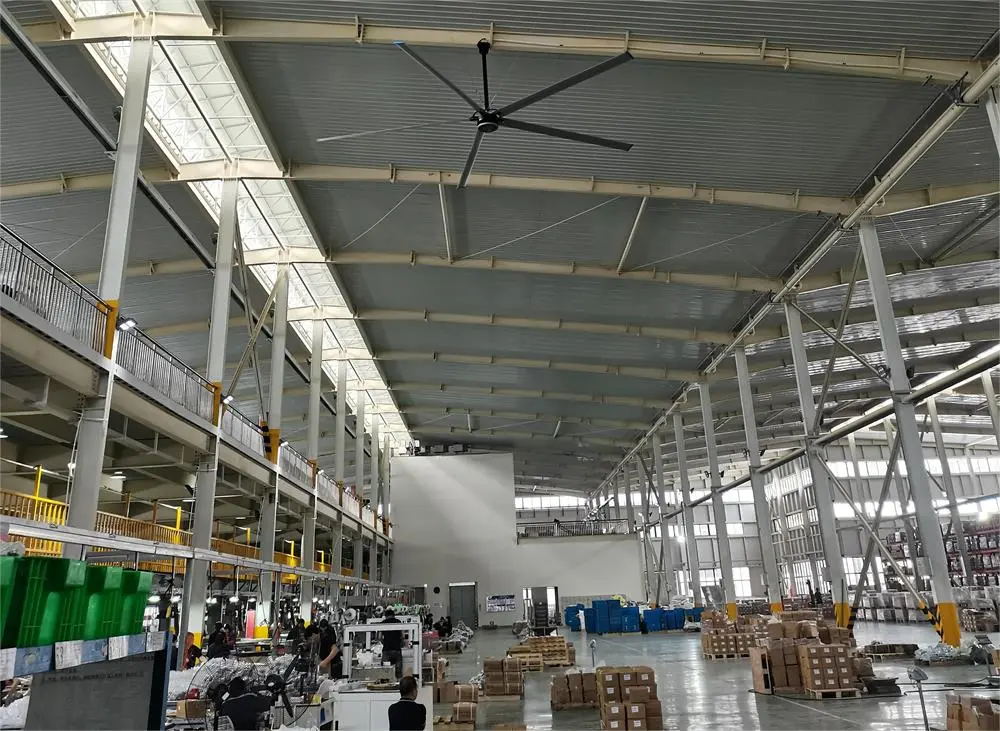

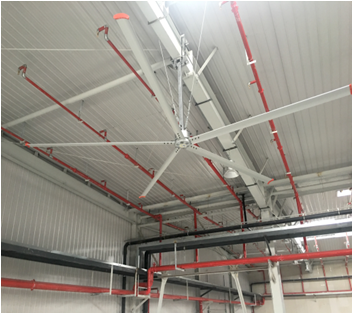

Our HVLS fans have a diameter of up to 24ft, and can move air at a rate of 1.5 million cubic feet per minute. This movement of air helps to generate a gentle breeze throughout a wide area, making them an ideal solution for industrial spaces, warehouses, and large commercial areas.
Our fans use direct-drive technology and high-quality motors, making them more energy efficient than traditional air conditioning units or other cooling solutions. By circulating high volumes of air with little energy input, our fans can reduce your energy consumption, lower your energy bills, and help you create a more sustainable and environmentally friendly business.

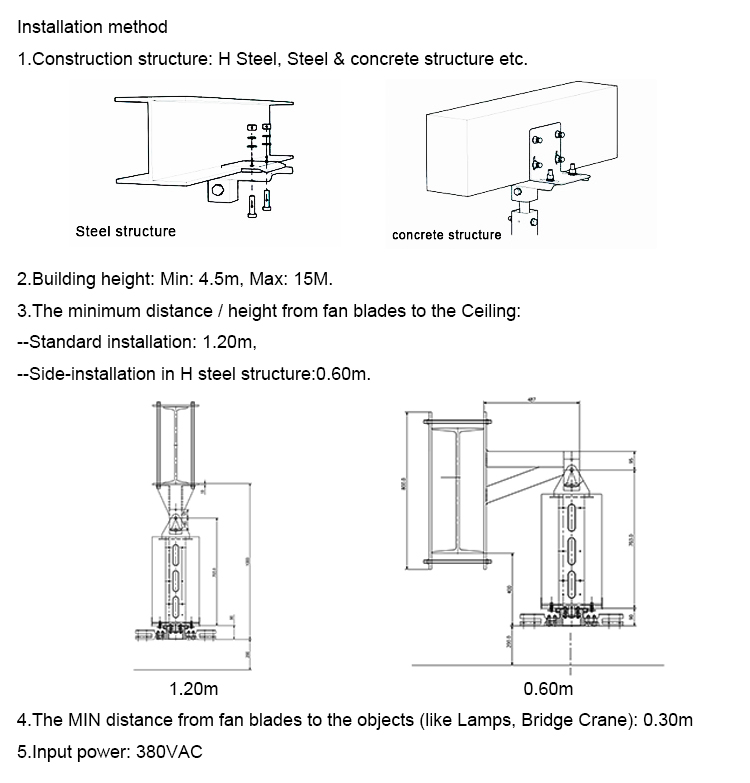

At Carrist, we take pride in our quality, and we ensure that our HVLS fans are made from the highest quality raw materials, as well as being certified CE, UL and TUV. Our fans are also designed to be easy to install, with clear instructions that can be followed by your in-house team.
Carrist HVLS FAN KX series Specification | |||
Model: | KX-4900 | KX-6100 | KX-7300 |
Max diameter: | 4.9meter | 6.1meter | 7.3meter |
Max diameter: | 16Ft | 20Ft | 24Ft |
Wind load: | 11300m3/min | 12500m3/min | 14100m3/min |
Fan weight: | 74Kg | 97Kg | 110Kg |
Max speed: | 75rpm | 65rpm | 55rpm |
Power: | 1.5Kw | 1.5Kw | 1.5Kw |
Full load current: | 2.4A / 380V | 3.5A/380V | 3.5A/380V |
Carrist HVLS FAN KX series Specification | |||
Model: | KX-4900 | KX-6100 | KX-7300 |
Max diameter: | 4.9meter | 6.1meter | 7.3meter |
Max diameter: | 16Ft | 20Ft | 24Ft |
Wind load: | 11300m3/min | 12500m3/min | 14100m3/min |
Fan weight: | 74Kg | 97Kg | 110Kg |
Max speed: | 75rpm | 65rpm | 55rpm |
Power: | 1.5Kw | 1.5Kw | 1.5Kw |
Full load current: | 2.4A / 380V | 3.5A/380V | 3.5A/380V |
