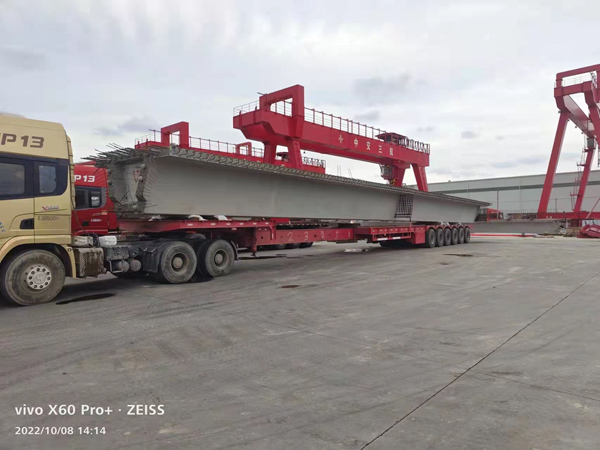

Extendable Semi Trailer
•The standard low mattress trailer can no longer meet the demand of lengthy cargo transportation in many cases. As required, Carrist graph the extendable flatbed trailer in accordance to one of a kind lengths of cargo.

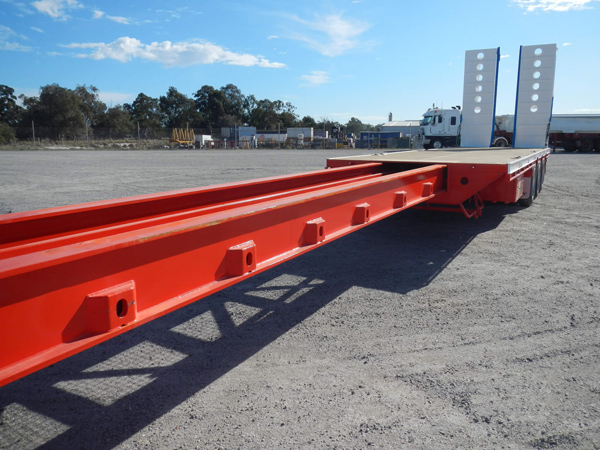

•The cargo loading platform can be prolonged and retracted freely.
•Forced guidance is the most oftentimes used steerage structure for the extendable trailer, and knuckle steerage is the most frequent structure of extendable trailer guidance for sale. It is necessary that the most steerage perspective can attain forty five degrees.
Most extendable lowboy trailer platforms with low loading and unloading surfaces can be extended laterally. This function is mainly realized by steel, aluminum, or wooden rotating arm or telescopic arm. On some heavy duty trailers, hydraulic lateral extend arms are also equipped. At present, a three-stage extension can be realized at most. Longitudinal extension inevitably requires the energy supply of the transmission device to extend in the same direction. To this end, a device called "energy chain" is most used today. By fixing the pipeline in the "energy chain", the damage to the pipeline caused by the lifting process can be effectively avoided.
Specification of Extendable Semi Trailer
ducts Name | 60 Tons Low Bed Trailer |
Model No. | CVEXT |
Tare Weight | 9.5-10Tons |
Main Beam | Q345B carbon steel, automatic submerged arc welded. Main beam height 500mm, width 140mm, top flange 18mm, middle 10mm, bottom 20mm. |
Axle | 3x13Tons Fuwa brand (BPW optional) |
Tire | 8.25R20-16, 11R22.5-16 , 11R20-18PR Triangle Brand |
Suspension | Leaf spring suspension (90mmx13mmx10pcs) |
Brake System | Dual line braking system. WABCO RE6 repay value; T30/30 spring brake chamber; 40L air tanks |
Landing Gear | 28Tons lift capacity with two speed, manual operate |
King Pin | 50# (2inch) bolted type |
Others | Tool box, mechanical ramp, LED light… |

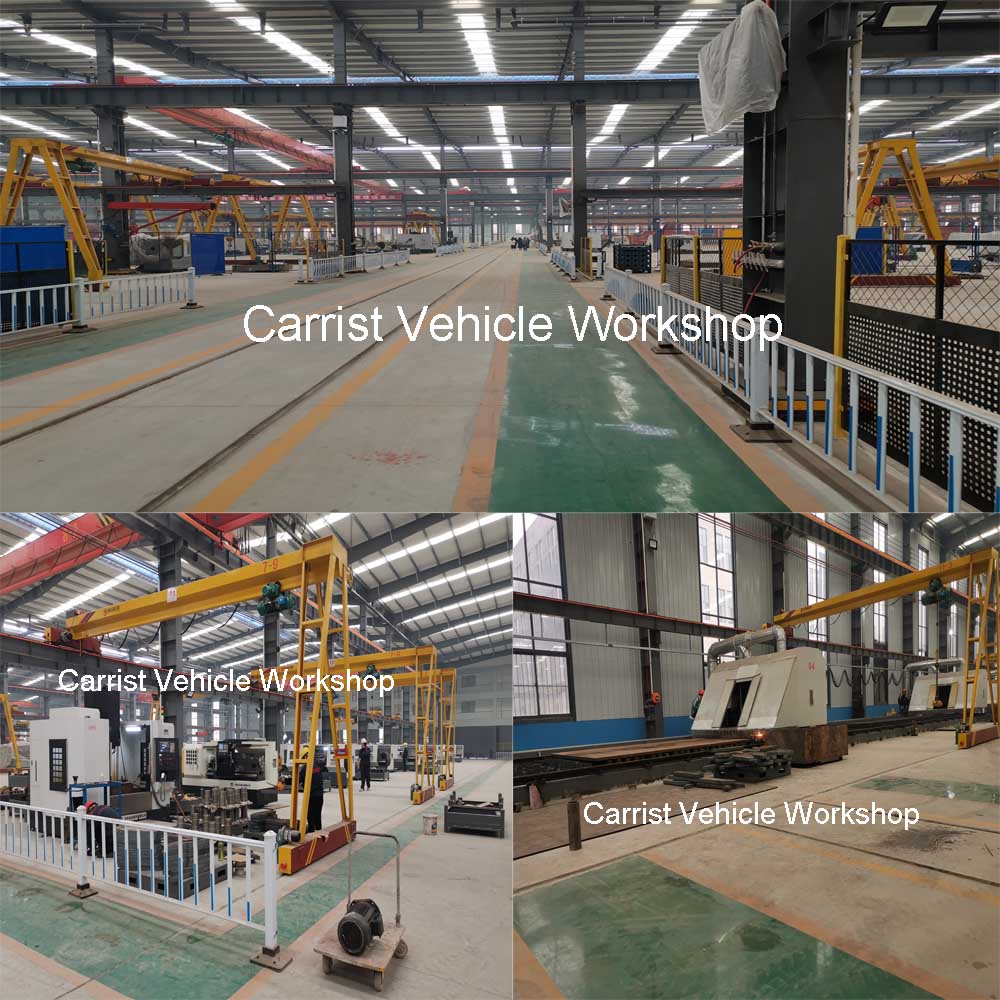

Workshop of Extendable Semi Trailer
