Road Sweeper

All products have passed the "3C" mandatory certification, and product qualification has exceeded 99.6%, which has been widely acknowledged by the market and customers. It has obtained the GB/T19001-2016(ISO 9001:2016 Quality Management System certification, as well as the GB/T27922-2022 five-star after-sales service certification.


★ We achieved something great. 51 authorized patents, three innovation patents, and two appearance patents have been obtained by the company.


Contact Now E-Mail Telephone WhatsApp
Product Details

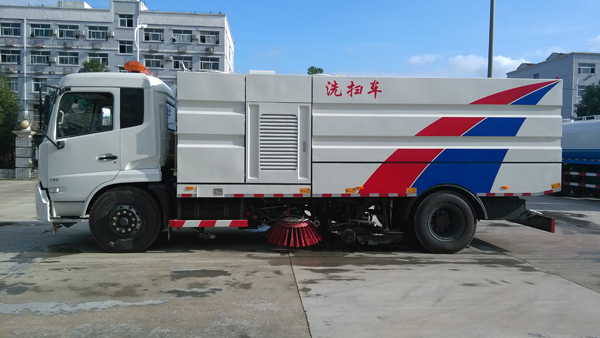

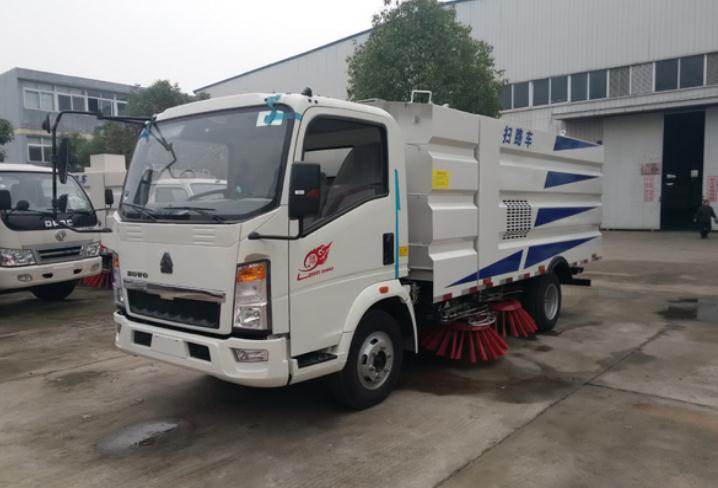

Carrist Pure suction road sweeper is a new high-tech product with "no secondary dust pollution and better function than traditional road sweeper"! The vehicle adopts the principle of negative pressure pure suction, and is composed of a dust collection system, a primary dust collection box, a secondary dust collection box, a dust recovery system, a hydraulic system, a carrist dust filter cartridge, an electric control system, and a walking system. It has the advantages of wide dust collection range, high suction rate, no secondary dust at the suction port, no dust discharge at the air outlet, and high working efficiency. It is the preferred product for environmental sanitation and material recovery. It is applicable to industrial and mining enterprises with high dust concentration and high density that are prone to produce dust pollution; Rapid cleaning of urban viaducts, expressways, bridges and tunnels; Cleaning of urban trunk roads, high-grade highways and expressways.


Road Sweeper



Specification of Road Sweeper

Products Technical Specification

Type

Road cleaning truck

Brand

Dongfeng 4x2

Cab

With A/C, on bed

Vehicle Description

Overall dimensions(mm)

8700x2490x3020

Curb weight(vehicle) (kg)

6205

Loading capacity (kg)

18000

Max speed (Km/h)

89/98

Engine

Mode

ISB210 50

Type

Diesel, 6-cylinder in line with water cooling,

turbo-charging

Max. power

155(KW) /210hp

Rotated speed

2500(rpm)

Displacement(ML)

5900

Company of engine

Cummins

Chassis

Wheel base

5200

Gear Box

DF6S900

Electric system

24V

Tyres

10.00R20

Tanker

Capacity of tank body

customized

Dimensions(mm)

customized

Options

cab/rear ladder

toolbox style, front bumper with front lights and mirrors

Painting: three layer painting, anit-rust, bottom painting. Outside painting.

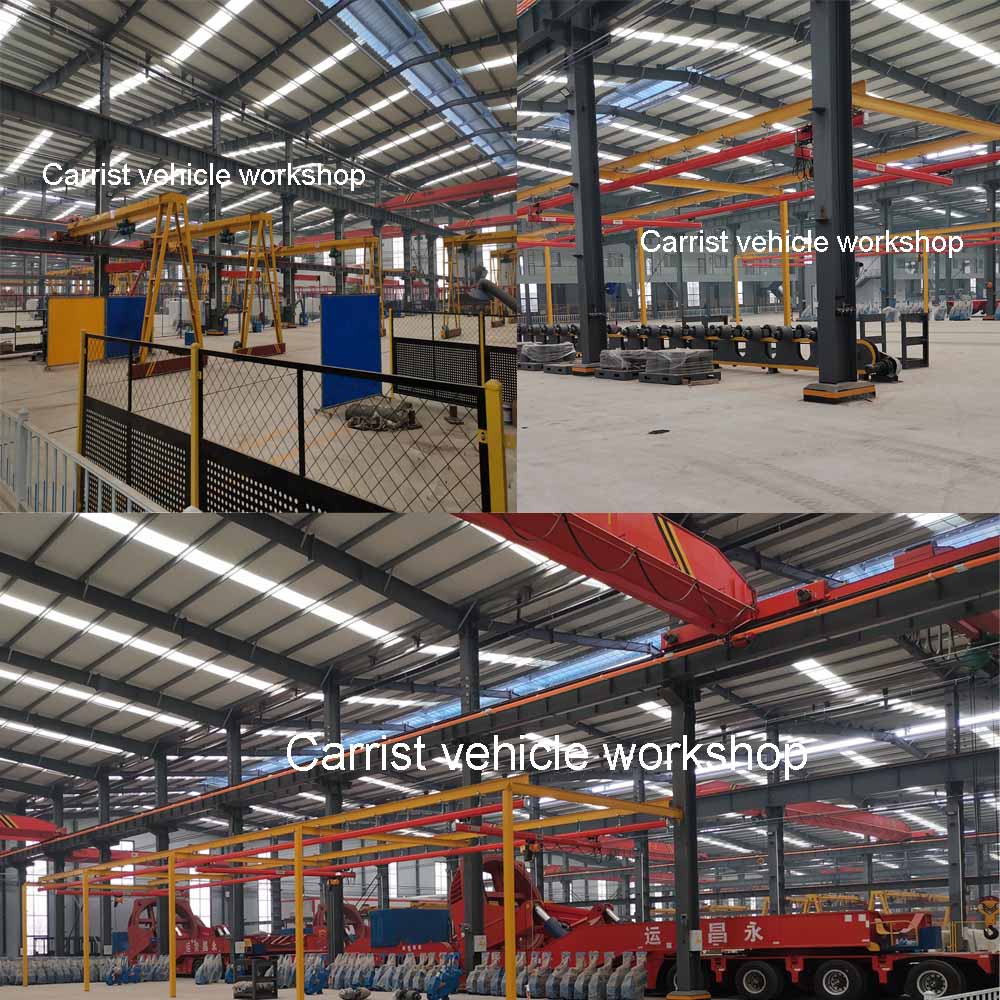

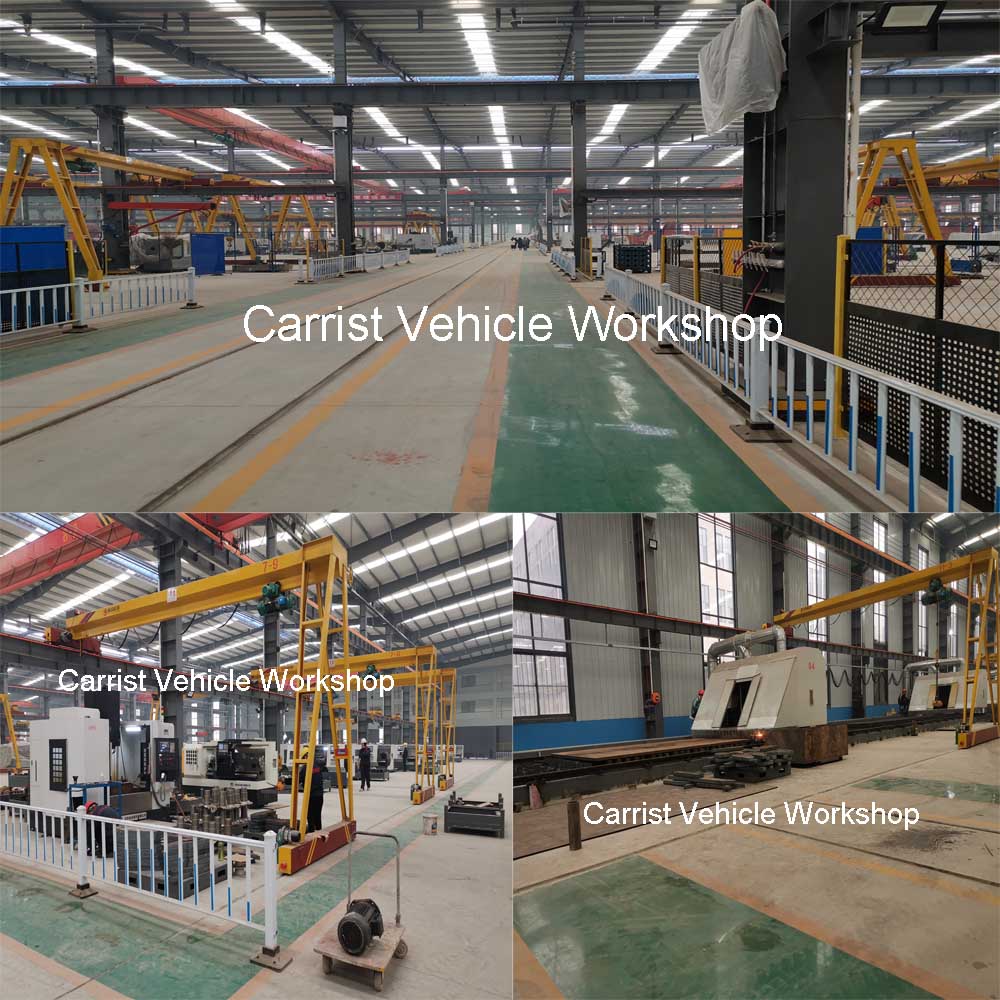

Workshop of Road Sweeper

Road Sweeper


Road Sweeper
