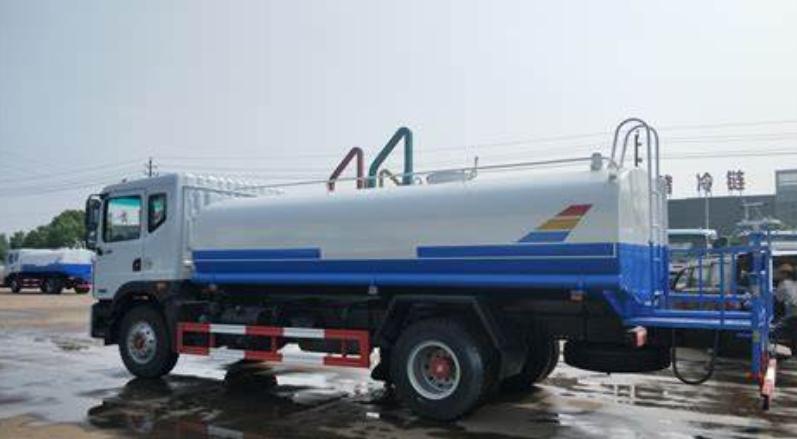

Road Sprinkler
Carrist Road Sprinkler can be used for Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

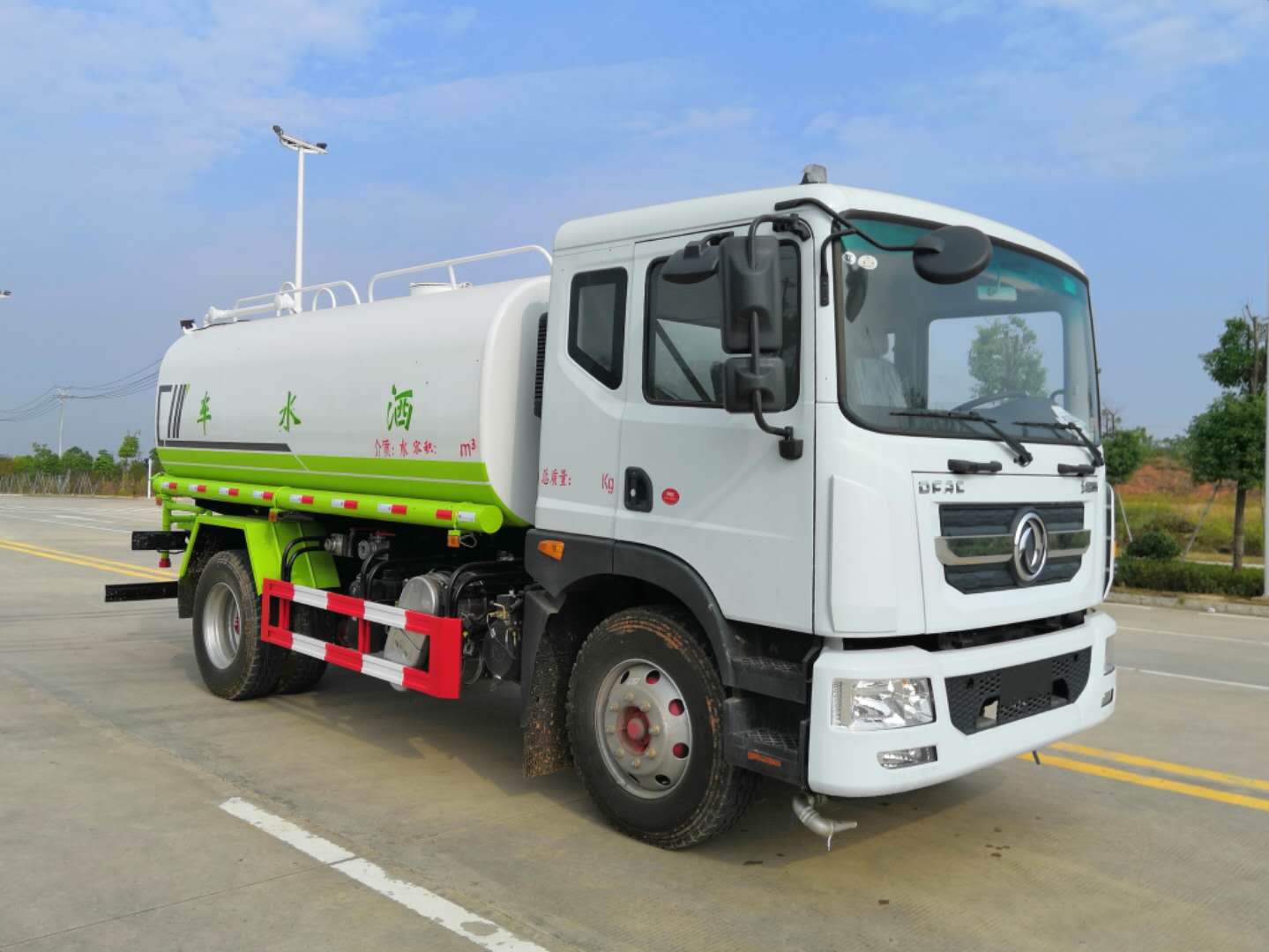

Carrist Road Sprinkler, also known as multi-function green sprinkler. It is used for urban roads, large factories, troops, gardens and other units to clean the road surface, sanitation, dust prevention, watering, spraying pesticides, etc., in order to beautify the environment.
At the same time, it can be used for temporary emergency fire sprinkler, and each sprinkler is equipped with a special interface for fire fighting. The engine drives the gearbox, and the power take-off installed on the gearbox drives the sprinkling pump, which generates the main power to spray the liquid inside the tank through the pipe network. Self-priming height: ≤ 7m, sprinkler width: ≥ 20m, maximum range: ≥ 28m; It can be adjusted into a column with a range ≥ 28m; It can also be adjusted into fog, with a range of ≥ 5m.
Front spray and rear spray. The front is equipped with a duck nozzle or a round head nozzle, the rear is equipped with a cylindrical opening nozzle or a shower nozzle, and the rear is equipped with a working platform equipped with a high-pressure water gun. The rear can also be equipped with 8 nozzles (optional), which are generally used to wash the street.
Specification of Road Sprinkler
Vehicle model | CLW5251GPSD5 | Chassis Model | EQ1250GD5DJ1 |
Outer size(mm) | 10250*2480*3200 | Wheelbase(mm) | 4350+1300 |
Total mass (kg) | 25000 | Rated quality (kg) | 14345 |
curb weight (kg) | 10460 | axle numbe | 3 |
Engine type | YC6JA240-50 | engine power | 240HP |
Tire size | 10.00R20 | Number of tires | 10+1 |
tank volume | 18-20 Cubic meters | thickness of the steel plate | 6mm |
Scoop up way | Lateral force-taking of gearbox | absorption and drainage | water of Automatic absorption and drainage |
Type of sprinkler pump | 60/90 | Water depth | 7meters |
pump flow | 60m³/h | Pump head | 90meters |
Sprinkler width | >=15meters | Sprinkler range | >=30meters |
Sprinkler way |
The back of the sprinkler:Mainly used for dust removal in places such as highways. The side of the sprinkler:Mainly used for roadside greenbelt watering. Squirt guns: It can rotate 360 degrees, and can be adjusted into column shape, or into heavy rain, moderate rain, light rain, drizzle, column shape. Maximum range of 25-30 m | ||
water way |
1,Water in the pond (or other water source) is sucked into the tank through the on-board high-power sprinkling pump. 2,Direct water from the irrigation port into the tank. 3,Connect the fire hydrant and put water into the tank. | ||
Workshop of Road Sprinkler
