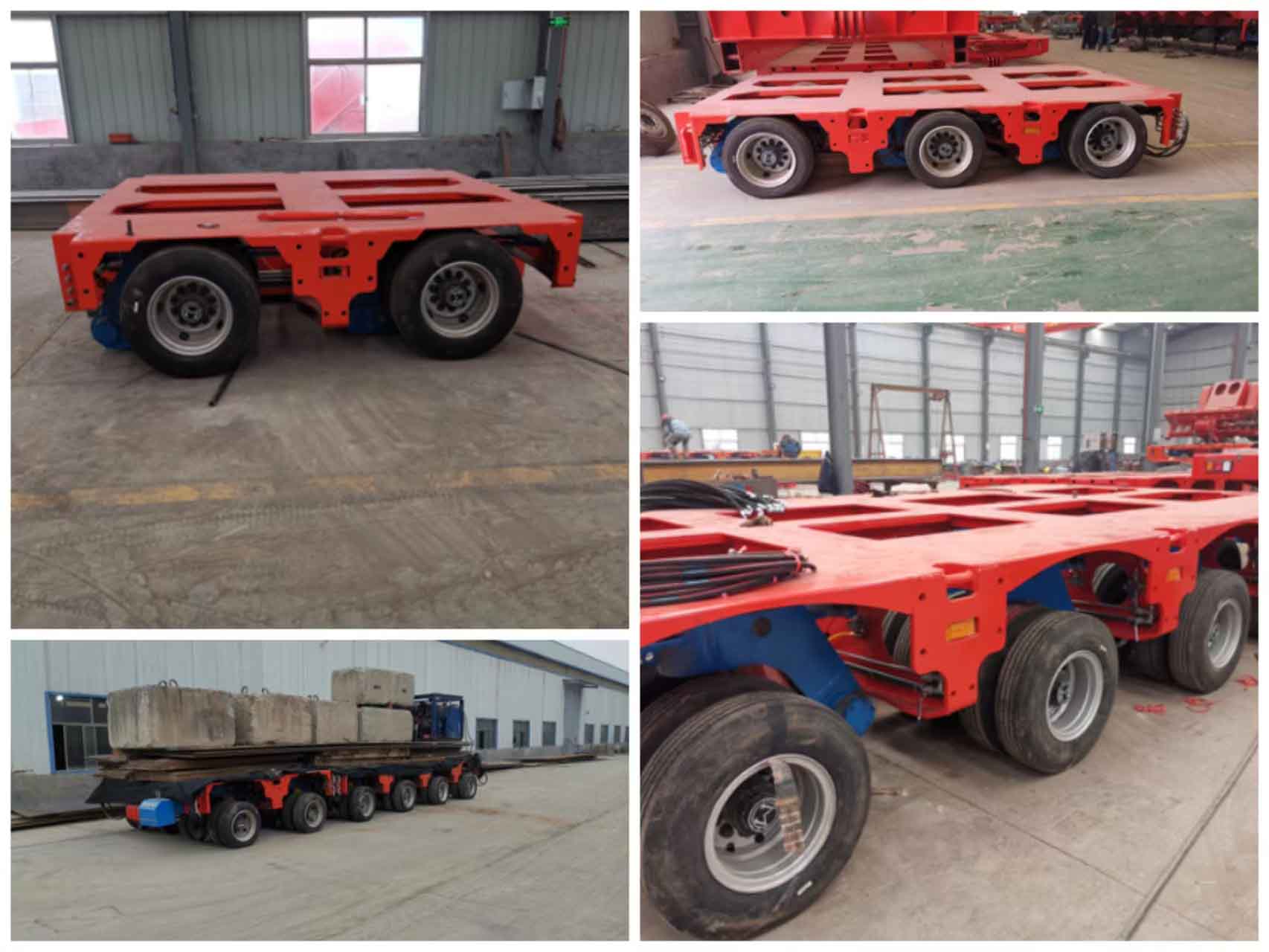

Nicolas Modular Trailer
Item | Technical Parameters of Nicolas MDED model modular trailer |
Capacity | 34000 kg/axle line @0.5km/h |
Material | HG60 high tensile steel |
Dead weight | 3300 kg/axle line |
Width of Platform | 2990 mm |
Platform height | 1080(+290)(-310) mm. Total suspension stroke 600 mm |
Wheelbase | 1550 mm |
Tire specification | 215/75 R17.5 |
Rim specification | 6.00 – 17.5 (10 holes) |
Approach / Departure angle | 20° / 26° |
Steering mechanism | Hydraulic – Mechanic all-wheel steering |
Brake system | Dual pipeline control. Dual shoe brake and spring brake for all axles. |
Maximum steering angle | + / – 55° in all ride heights |
· Versatile modular vehicle to configure trailer in 2, 3 and 4 files
· Up to 34 ton technical axle load
· Suspension stroke of 600 mm
· Steering angle up to 55°
· Simple, accessible steering system
· Lowest platform height on the market with 770 mm in low position
· Wide range of interchangeable platforms and accessories
· The lowest dead weight on the market
